Ainuo AN96(F) series multi-channel electrical safety comprehensive tester has the characteristics of high speed, high precision and multi-channel, with functions including AC withstand voltage, DC withstand voltage insulation resistance, AC grounding test, as well as arc detection, open and short circuit detection, multi-channel switching and other function combinations.
The series of products have wide range options: AC withstand voltage 5kV/100mA (or 40mA), DC withstand voltage 6kV/20mA, insulation resistance 2.5kV/50GΩ, AC grounding 32A/600mΩ.
The product have information interfaces and automation interfaces, meeting the requirements of high-quality development, intelligent manufacturing and industrial upgrading.
The series of products can meet the safety testing requirements of various electrical products with multi I/Os, such as switching power supplies, power adapters, frequency converters, inverters, UPS, motors, electric drives, batteries, and charging piles. |
Product Features
|
| Safe and reliable |
- Main drafting unit of state standards and verification regulations for safety testing products;
- Nearly 30 years of safety testing expertise and follow-up of industry needs;
- Complete electromagnetic, environment, load, operating conditions, fatigue test verification;
- Anti-shock protection, arc detection, open/short circuit detection etc.
|
| Convenient and efficient |
- Fast measurement and control: fast test, switching, discharge
- Accurate test: 500VA AC withstand voltage, 1% accuracy;
- Flexible configuration: various functions, channels and models.
|
| Automatic and efficient |
- Parallel test: parallel positive/negative high voltage test, complete the three-terminal withstand voltage test within 1s;
- Scan test: multi-channel high voltage and grounding scan test combination, flexible configuration;
- Rich interface: RS232, USB, LAN, PLC, I/O.
|
Product Application
|
| The series of products can meet the safety testing requirements of various electrical products with multi I/Os, such as switching power supplies, power adapters, frequency converters, inverters, UPS, motors, electric drives, batteries, and charging piles. |

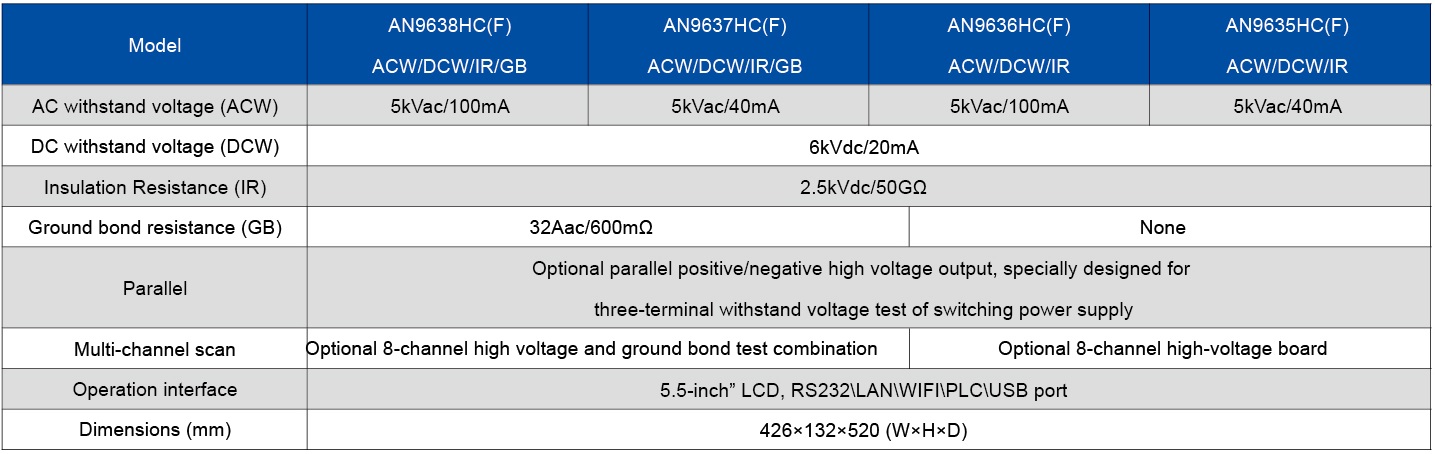

Technical Specifications
|
|
|
