Lithium Battery Safety Tester

AN8179(F)

Product Model:
AN8179(F)
Application:
A special tester for the insulation of lithium battery cells

Product Description

Ainuo AN8179F(F) series is a special tester for the insulation of lithium battery cells, featuring quick test, high failure detection rate, low damage to failure point, and clear result display.

Product Features

Fast test

The analyzer can test two parameters of the charging voltage wave and charging time of the lithium battery cell, completing one test within 50ms or more.

High detection rate

The analyzer can also accurately identify the micro-short-circuit conditions such as diaphragm perforation, impurities, and edge burrs of lithium battery cells in addition to testing the insulation failure of battery cells, preventing defective cells from entering the next process.

Low damage to failure point

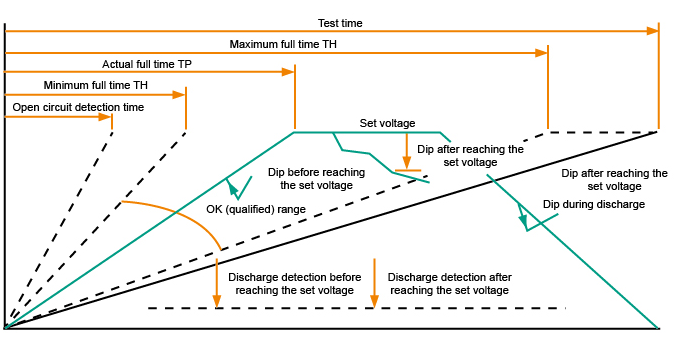

The analyzer detects voltage drop in real time during charging/holding/discharging to detect any partial insulation failure as soon as possible, to avoid false temporarily conformity after clearing hidden micro-short circuit point, and avoid excessive damage to micro-short circuit (which is not conducive to fault analysis).

Clear result display

The analyzer fulfills test, judgement and display via wave display, and setting of voltage dip upper/lower limit and charging time upper/lower limit. The judgment basis and results are displayed clearly.

Product Application

Ainuo AN8179F(F) series is a special tester for the insulation of lithium battery cells, featuring quick test, high failure detection rate, low damage to failure point, and clear result display.
