Comprehensive DC Brushless Motor Test Scheme

Comprehensive DC Brushless Motor Test Scheme

AN8355(F)
  • Product Model:
    AN8355(F) Series
  • Application:
    Used in household brushless motors, electric vehicle motors, fan motors, drone motors, brushless power tools and other industries.

Product Description

AN8355S(F)/AN8355M(F) series comprehensive DC brushless motor test scheme is suitable for testing of dynamic performance of various types of DC brushless motors with/without load, widely used in household brushless motors, electric vehicle motors, fan motors, drone motors, brushless power tools and other industries.

Product Features

  • Broadband: signal detection of 0.5Hz~100KHz ultra-wideband.
  • High accuracy: measurement accuracy of voltage/current up to 0.2%.
  • Efficient: One-time wiring to complete all testing items such as static, no load, Hall signal, etc., high efficiency.
  • One-stop: self-developed AC/DC power supply, convenient and unified before/after sale.
  • Module: Module test unit to avoid interference, and customize single/multi-station, serial/parallel test system as required.
  • Multi ports: USB, RS232, LAN and other ports, PLC simulation, TCP/IP network protocol, etc., to facilitate data interaction and instrument control.

Product Application

  • Test items
Stator: withstand voltage, insulation, resistance, resistance balance, interturn, inductance, rotation
Motor: withstand voltage, insulation, resistance, back electromotive force, no load, speed, Hall, rotation

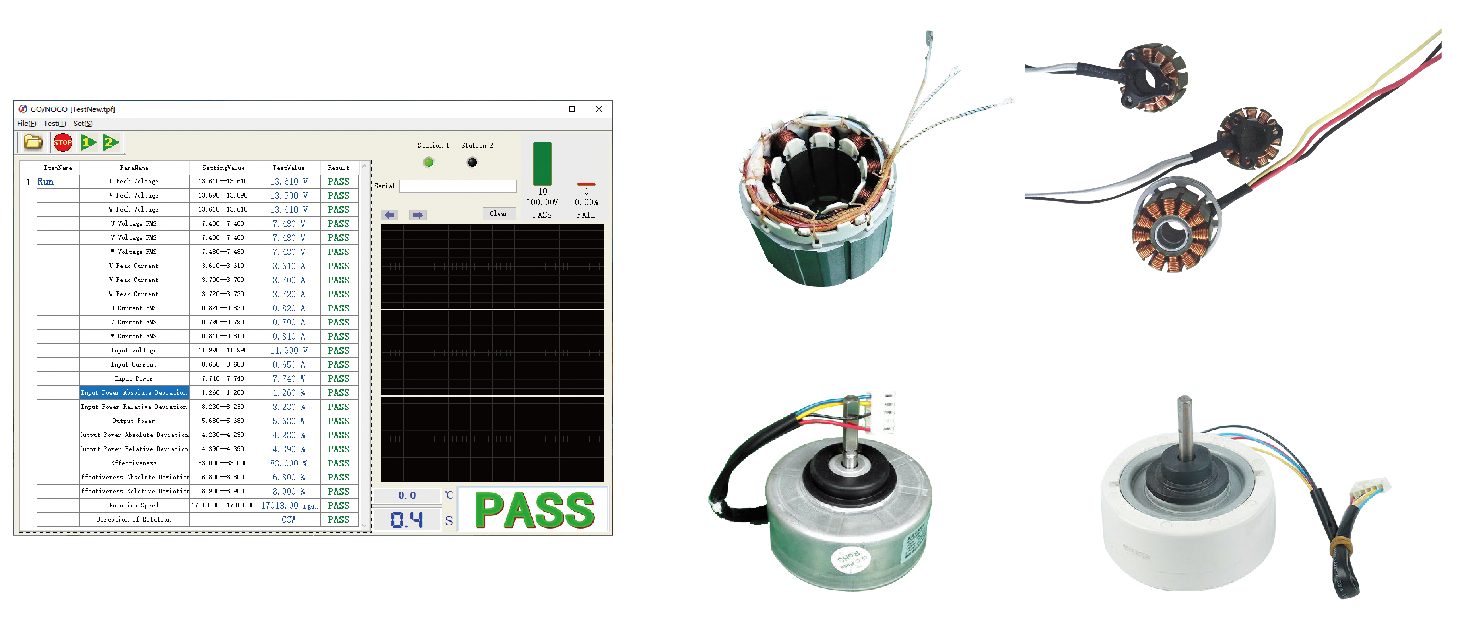

  • Test cases
  Test cases

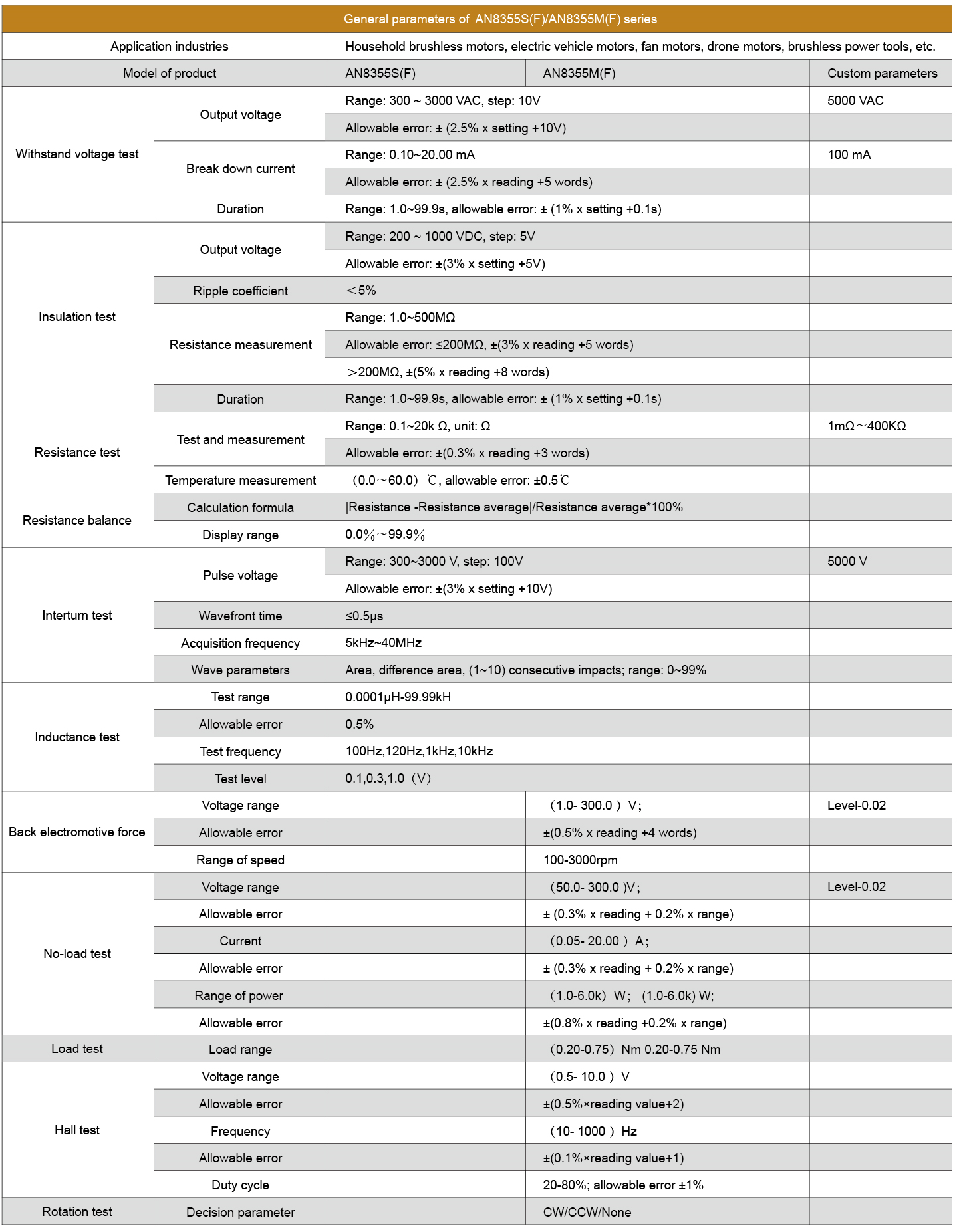

Technical Specifications

Technical Specifications
