Three-phase High-precision Power Analyzer

Three-phase High-precision Power Analyzer

ANPM600(F)
  • Product Model:
    ANPM600(F) Series
  • Application:
    Photovoltaic inverter, electric vehicles and other industries

Product Description

Three-phase High-precision Power Analyzer

Product Features

  • Six-channel simultaneous power analysis
  • Accuracy: ±0.1%
  • Measurement bandwidth DC, 0.5Hz~100kHz
  • Sampling rate 200kSps
  • Maximum voltage: conventional 1000V, optional 1500V
  • Maximum current: 50A/20A (conventional)/10A/5A/2A/1A, optional sensor
  • LCD display: Full touch screen experience, custom display entry, wave display
  • Data storage: custom storage items, export in CSV format
  • Perfect size: Standard 3U height, suitable for system integration
  • Free custom: 1~6 channel combination, matching boards with different current

Product Application

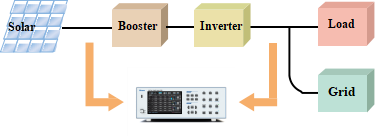

PV inverter power measurement
GB/T 37409-2019 Testing specifications for photovoltaic grid-connected inverter
Voltage 0~1500V
Current 0~50A/current sensor
Simultaneous measurement of input/output (single-phase/three-phase) power and power factor
Automatic efficiency calculation
50th harmonic and distortion analysis
Two-way power measurement for buying and selling electricity
  PV inverter power measurement

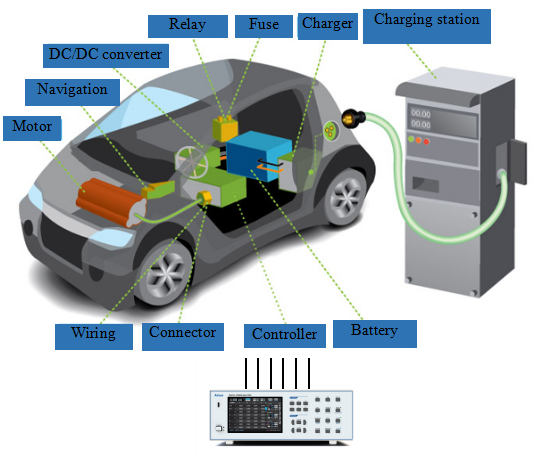

Electric vehicle electrical performance measurement
Multi-channel to measure multi parameters simultaneously: OBC, charging pile efficiency test, battery charging/discharging performance, power conversion performance, motor performance, etc.
AC/DC, 50A maximum current, extended to higher current sensors
High accuracy, basic accuracy of 0.1%, minimum power resolution of 0.1mW
Measurement of instantaneous RMS, mean, peak, electric energy, etc. of AC/DC signals
  Electric vehicle electrical performance measurement

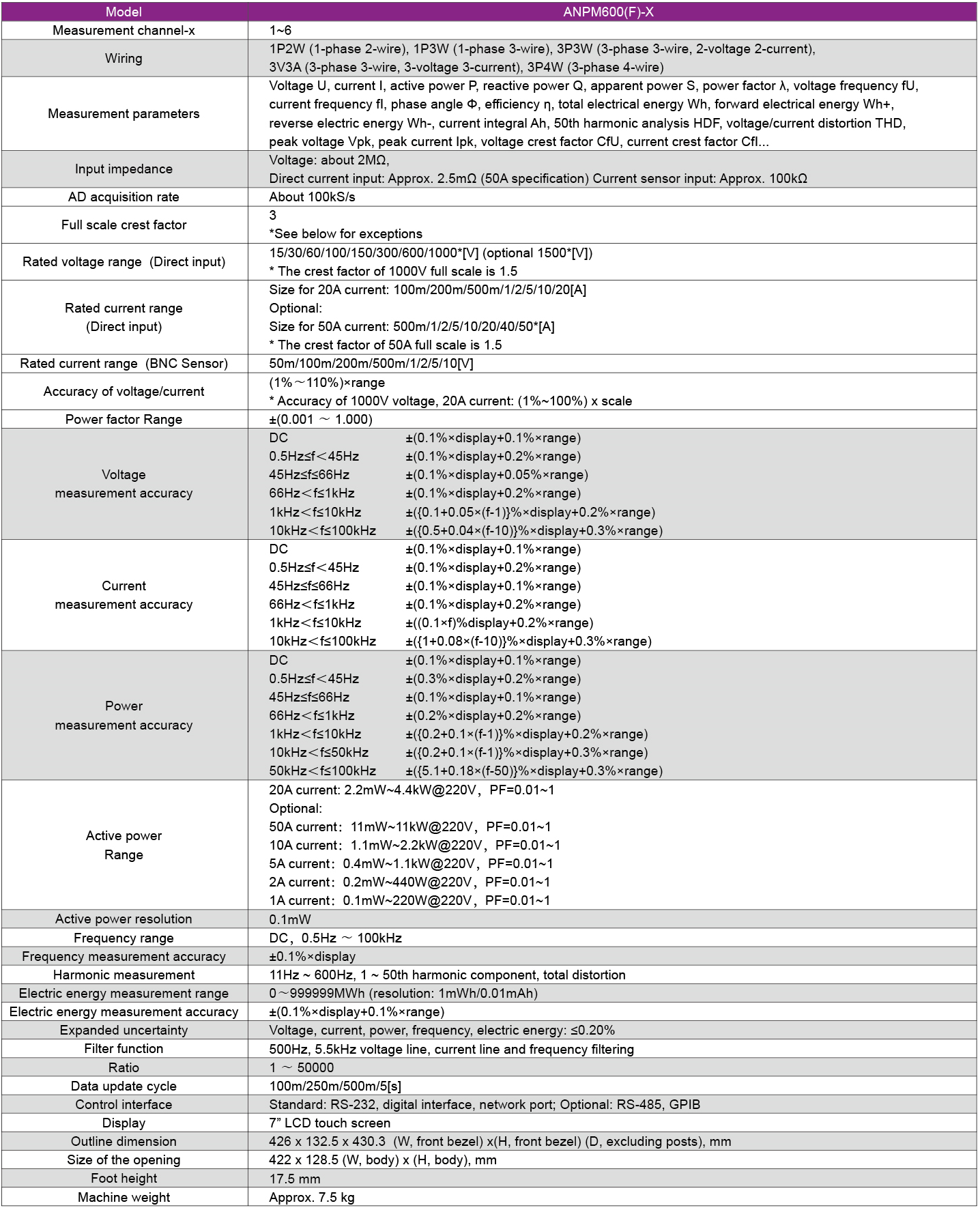

Technical Specifications

Technical Specifications
