DC Electronic Load

DC Electronic Load

AN23500

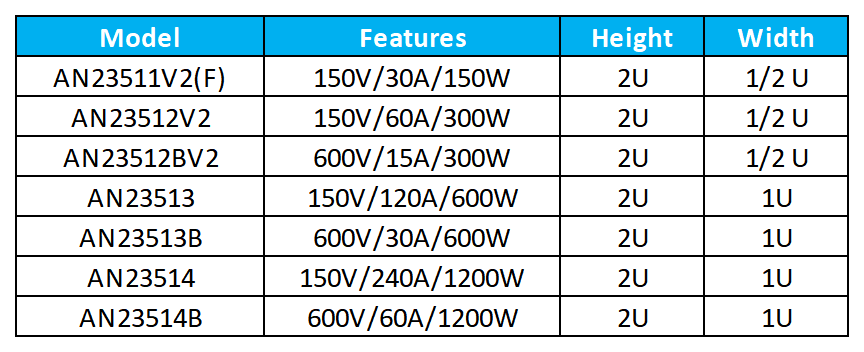

  • Product Model:
    AN23500(F) Series
  • Application:
    Testing of products in many fields such as new energy vehicle OBC, power battery, charging spot test, power electronics, servo/server power supply, high voltage UPS, photovoltaic, grid energy storage, aerospace and other fields.

Product Description

Product Overview

Testing of products in many fields such as new energy vehicle OBC, power battery, charging spot test, power electronics, servo/server power supply, high voltage UPS, photovoltaic, grid energy storage, aerospace, and other fields.

Product Features

  • Precision measurement, with accuracy of voltage 0.015%+0.03%F.S., current 0.03%+0.05%F.S. and power 0.1%+0.1%F.S.;
  • Built-in dynamic loading mode, up to 25kHz dynamic frequency, Vpk+/- test;
  • Built-in LED to simulate LED load and test LED power supply;
  • Minor dynamic overshoot amplitude, less than 30% of set current;
  • Built-in constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP), short circuit simulation, overcurrent protection test, series test, AUTO test, etc.;
  • Complete protection, including OCP (overcurrent protection)/OVP (overvoltage protection)/ OTP (over-temperature protection)/RVP (reverse connection protection), etc.;
  • Built-in temperature acquisition chip and speed-adjustable fan control;
  • Built-in battery, suitable for discharge test for power integration;
  • Flexible interface, standard RS232, optional RS485;
  • Light, ABS+PC injection molding shell, beautiful and generous.

Product application

  • CE
  • Switch power supply test
  • Server power supply and communication power supply test
  • Adapter, charger and charge bank test
  • Battery discharge test
  • Automotive electronics test, such as fuses, control boxes, etc.
  • Relay simulation load test
  • Aerospace power test
  • DC power supply and power electronic components test
  • Basic Modes

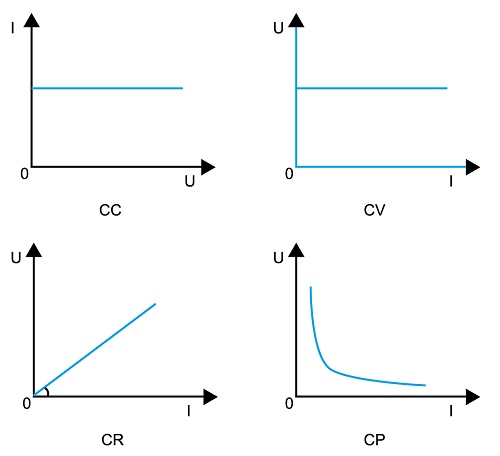

The AN23500(F) load has four built-in basic modes: constant voltage (CV), constant current (CC), fixed-point group, and constant power (CP), suitable for various testing.
  Basic Modes
  • Combined Modes

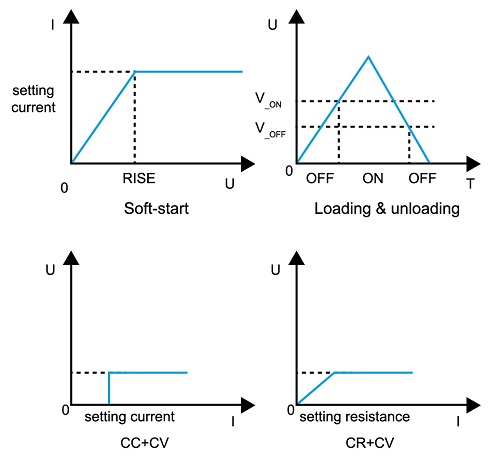

The AN23500(F) load has four built-in combined modes: soft-start, loading/unloading, CC+CV, CC+CV, suitable for various testing.
  Combined Modes
  • BATY Mode - Dedicated Battery Testing Mode
The AN23500(F) series load has constant battery capacity test mode, and discharge via constant current (CC) is available. Voltage threshold can be set for judgment. When the battery voltage drops to the threshold, the loading automatically stops, and the current output of the battery under test is turned off to avoid damage to the battery due to over-discharge. The load provides real-time display of discharge level in Ah. BATY mode is also suitable for supercapacitors and other similar discharge tests.
  BATY Mode - Dedicated Battery Testing Mode
  • Adjustable Load Rise/Fall Slope
Various current rise/fall rate can be set for AN23500(F) series loads as required. Current change rate: 2.5A/us; time: 20us-999999ms, resolution: 20us.
  • LED Mode - Simulate LED Load Mode

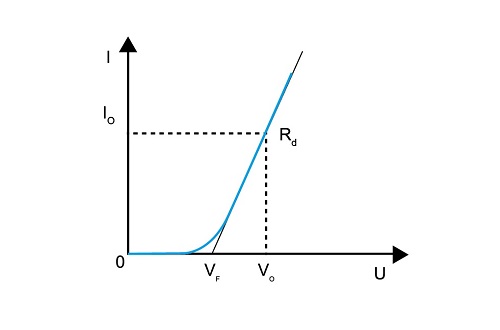

The AN23500(F) series load has built-in simulated LED load mode, loading as shown on the right to simulate the characteristics that the current of LED is 0 before it is turned on and rises according to the volt-ampere curve after it is turned on. Electronic load is adopted to simulate loading so as to avoid light pollution or instable parameters of LED strips and resistive loads.
  LED Mode - Simulate LED Load Mode
  • CCD Mode - Fast Dynamic Test

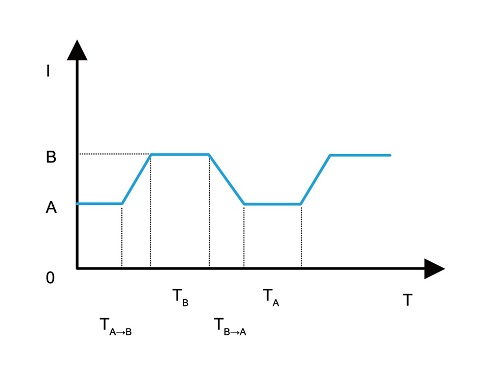

The AN23500(F) series loads have built-in high-speed dynamic loading test function, with dynamic change up to 25kHz, including three modes: continuous, pulse and trigger. You can set the current loading value, loading time, rise/fall time, etc., as shown in the figure below. In addition to dynamically loading, the load also provides peak-to-peak voltage measurement with sampling frequency up to 25kHz.
  CCD Mode - Fast Dynamic Test
  • LIST Mode – Series Loading

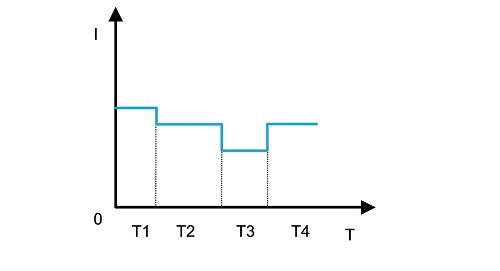

Up to 8 groups of data can be edited via built-in series test of AN23500(F) load. 200 steps can be edited in each group, and the execution time (0-100s) of each step can be edited. Various loading current waves are provided for battery discharge, server, communication power mixed load modulation etc. as an effective supplement to dynamic current testing.
  LIST Mode – Series Loading
  • Auto Mode - Automatic Test

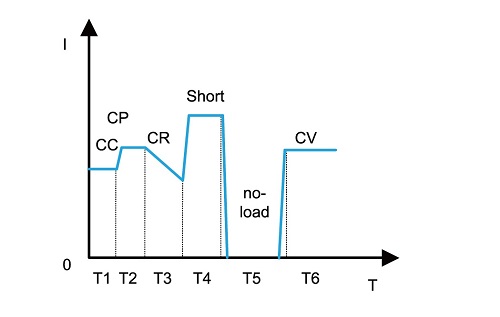

Up to 8 groups of data can be edited via built-in series test of AN23500(F) load. 200 steps can be edited in each group, including three (6) modes: no-load, constant current (CC), constant voltage (CV), constant power (CP), constant resistance (CR) and short-circuit; 4 parameters can be edited, tested and compared: current, voltage, power and resistance, and the delay test time (0.2~100s) can be edited, while considering the speed and accuracy of the test.
  Auto Mode - Automatic Test
  • High Precision Measurement
AN23500(F) series load has two levels of voltage/current measurement. Taking AN23514 as an example, the voltage is 20V/150V, suitable for low voltage and high voltage applications at the same time; the current is 24A/240A, providing more accurate current measurements for various applications. High-precision A/D, D/A chips are adopted, supporting accuracy of voltage 0.015%+0.02%F.S., current 0.03%+0.05%F.S., and power 0.1%+0.1%F.S.
  • Remote Measurement

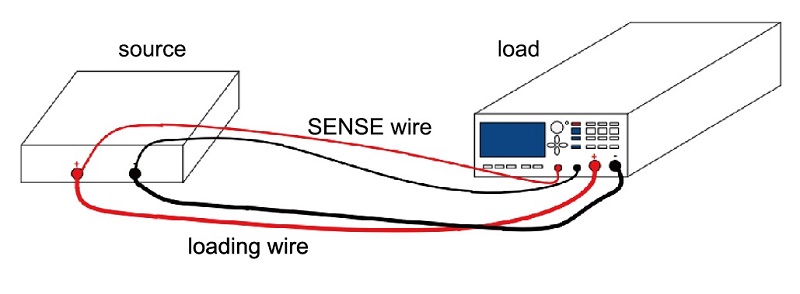

AN23500(F) series loads have remote measurement function. When the current consumption on the load is high, the voltage drop generated by the load terminal, the connection line between the load and the source under test is high and cannot be ignored. To ensure the measurement accuracy, the remote test (SENSE) is added. Select the remote test when the loading current is large or for test items with strict voltage requirements. The SENSE terminal is set at the front of operation panel, convenient for wiring.
  Remote Measurement
  • I Monitor - Current Monitoring
AN23500(F) series loads have an analog current output terminal (BNC), outputting 0~5.5V analog signal corresponding to 0~maximum current. It can be directly connected to an external voltmeter or oscilloscope through the BNC terminal for real-time monitoring of current waves without additional current probes.
  • Precisely Lock The Power Protection Point

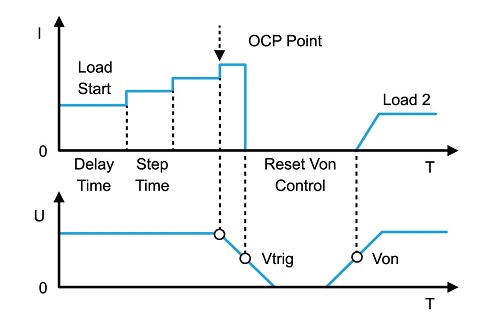

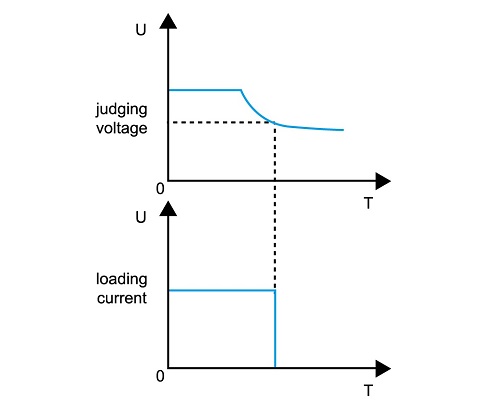

AN23500(F) series loads have OCP/OPP function. Too large output current of the source under test may cause damage. Therefore, most of the power sources under test have overcurrent protection function: when overloaded, the output voltage will be reduced or the output will be stopped. Therefore, a test mode for this condition is set for the load - Over Current Test (OCP). After setting the loading circuit and the threshold voltage, when the load detects that the voltage is less than or equal to the threshold, the loading stops, and at the same time, the current at the moment of protection is displayed on the screen, and the result is judged according to the protection point.
  Precisely Lock The Power Protection Point
  • Complete Protection
AN23500(F) series load is highly reliable with a variety of protections, including: OVP (overvoltage protection), OCP (overcurrent protection), OTP (overtemperature protection), OPP (overpower protection), RVP (reverse connection protection), SSP (SENSE protection).
  • Panel

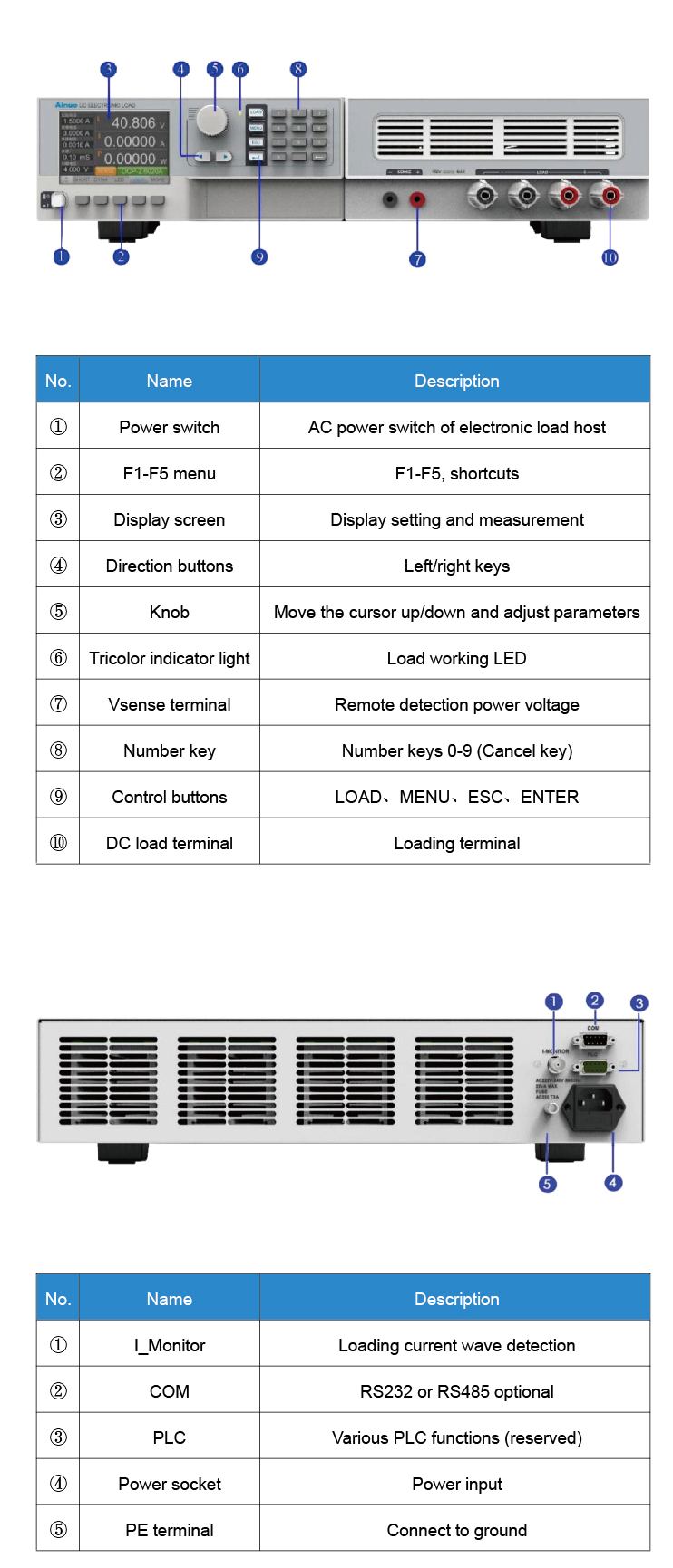

Panel

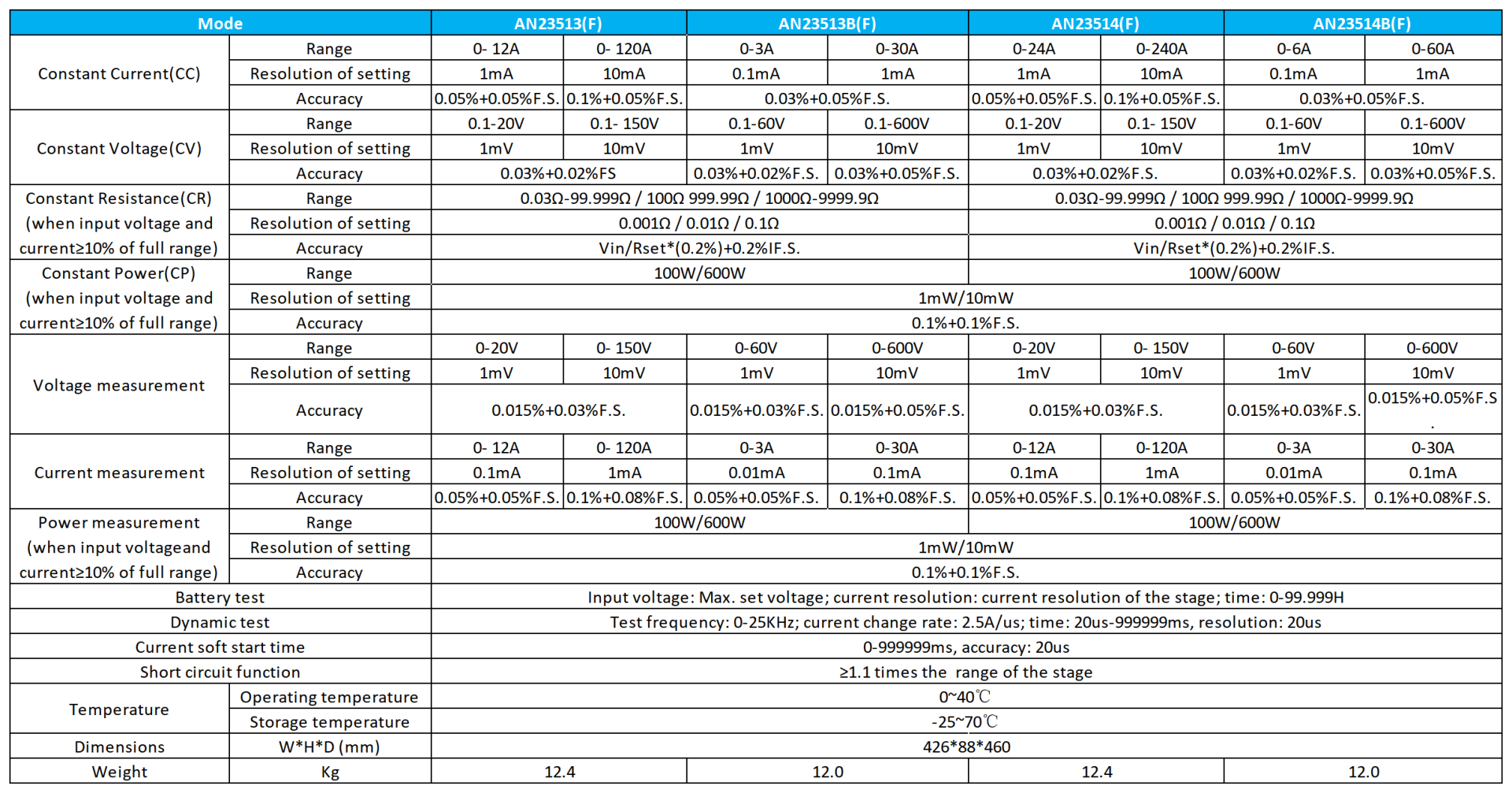

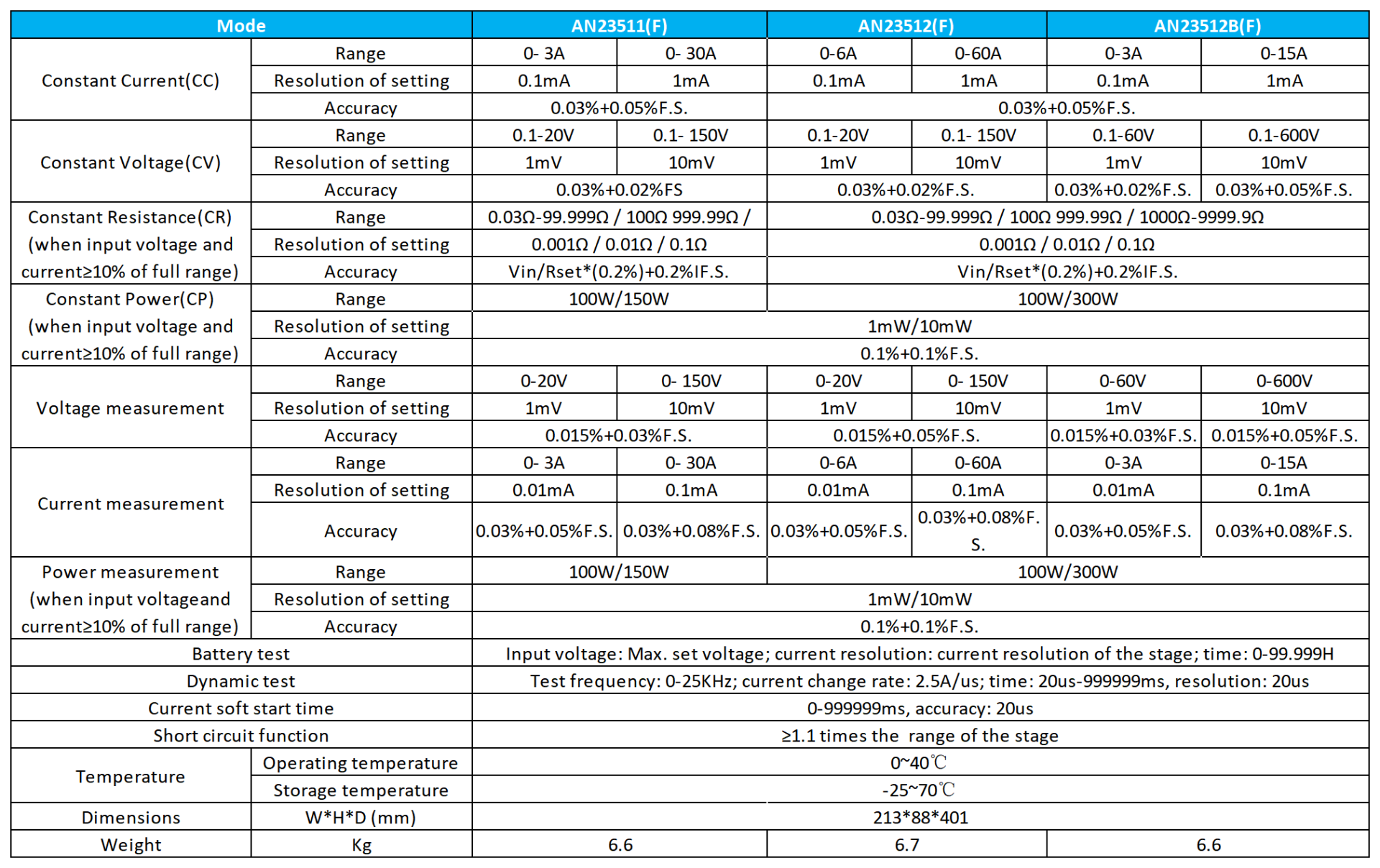

Technical specifications
