Multiple Channel Power Analyzer

Multiple Channel Power Analyzer

AN87600(F)
  • Product Model:
    AN87600(F)
  • Application:
    Household Appliances, Commercial Appliances, Photovoltaic Inverters, Electric Vehicles, Charging Piles, Switching Power Supply, Transformer, Generator, Inverter, Variable Frequency Motor, Lighting, LED

Product Description

  • Six-channel simultaneous power analysis
  • Basic accuracy: ±0.1%
  • Measurement bandwidth: DC, 0.5Hz~100kHz
  • Acquisition rate: 200kSps
  • Maximum voltage: standard 1000V, optional 1500V
  • Maximum current: 50A/20A (standard)/10A/5A/2A/1A, support combination, optional sensor
  • LCD display: Full touch screen, custom display items, wave display
  • Data storage: Custom storage items, export in CSV format
  • Perfect size: Standard 3U height, suitable for integration

Man-machine Operation

  • Standby power consumption and power analysis of single-phase/three-phase household appliances and commercial appliances
  • PV inverter power, efficiency, harmonic analysis.
  • Electric vehicles, charging pile electrical performance test.
  • Power electronics, transformers, generator power/harmonic analysis.
  • Inverter, inverter motor power/harmonic analysis.
  • Switching power supply power/harmonic/inrush current analysis.
  • Lighting/LED power analysis

Product Features

  • Multi-channel: 1~6-channel synchronous measurement unit, flexibly configured as multi-channel single-phase, three-phase three × 2, three-phase four × 2, four-phase (DC + three-phase three) and other modes for measurement of various loads (air conditioners, inverters, frequency converters, motors);
  • High precision: High-speed FPGA+ARM processor dual-core processing, 16-bit high-speed high-precision AD converter, accuracy of 0.1%, up to 100ms display update cycle;
  • Wide power range: 20A current measurement (optional 50A/10A/5A/2A/1A and other specifications, support combination) per channel, minimum power resolution of 0.1mW, meeting the measurement requirements of standby power consumption and rated power;
  • Wide broadband: AC/DC signal, power measurement bandwidth DC, 0.5~100kHz, suitable for various standard/non-standard sine wave load power measurement;
  • Multi-channel harmonic analysis: Simultaneous harmonic analysis for six-channel, up to 50th harmonic measurement, distortion analysis, visual display of harmonic component of each order and total components;
  • Multi-channel frequency measurement: Simultaneous frequency measurement for six channels;
  • Line filtering: 500Hz, 5.5kHz low-pass filter is used to measure the fundamental wave of PWM wave and filter out the high-frequency interference of switching power supply current;Sensor: Ratio f
  • unction, normal I-I, V-V voltage/current transformers; I-V current sensors with BNC interface, maximum input voltage of 10V, optional high current sensors;
  • Efficiency calculation: Measurement of input/output energy consumption of the equipment at the same time, and calculate its efficiency;
  • Electric energy accumulation: accumulate forward/reverse electric energy and comprehensive electric energy separately, and measure electric energy for sale and purchase.

Channel configuration

The multi-channel power analyzer can support a variety of wiring methods, including 1P2W, 1P3W, 3P3W, 3V3A, 3P4W, etc.
Channel Configuration

Product Application

Product application
Product application
PV inverter power measurement
Meet GB/T 37409-2019 Testing specifications for photovoltaic grid-connected inverter
Voltage 0~1500V
Current: 0~50A/current sensor.
Simultaneous measurement of input/output (single-phase/three-phase) power and power factor
Automatic efficiency calculation
50th harmonic and distortion analysis
Two-way power measurement for buying and selling electricity
Product application
Electric vehicle electrical performance measurement
Multi-channel to test multi parameters simultaneously: charging station performance, battery charge/discharge performance, power conversion performance, motor performance, etc. AC/DC, maximum current of 50A, extended to larger current sensors. High precision, basic accuracy of 0.1%, minimum power resolution of 0.1mW. Measure AC/DC signal instantaneous RMS, average, peak, electric energy and so on.
Product application
Inverter motor, frequency converter power measurement
Meet GB12668 standard. Power bandwidth DC, 0.5Hz~100kHz Current: 0~50A/current sensor. Simultaneously measure input and output power 50th harmonic and distortion analysis
Product application
PV inverter power measurement
Current: 0~1A/2A/5A/10A/20A/50A
Power bandwidth DC, 0.5Hz~100kHz
Simultaneous measuring input/output (single-phase, three-phase) power, monitoring battery charge/discharge.
Automatic efficiency calculation
Product application
Home appliance performance evaluation, standby power consumption measurement
Meet IEC 62301-2011 standard. Current: 0~1A/2A/5A/10A/20A/50A, measurement of rated power and standby power Minimum power resolution: 0.1mW 50th harmonic and distortion analysis
Product application
Lighting, LED power measurement
Current: 0~1A/2A/5A/10A
Minimum power resolution: 0.1mW
Measurement of drive power input/output power, power factor, efficiency
50th harmonic and distortion analysis
Product application

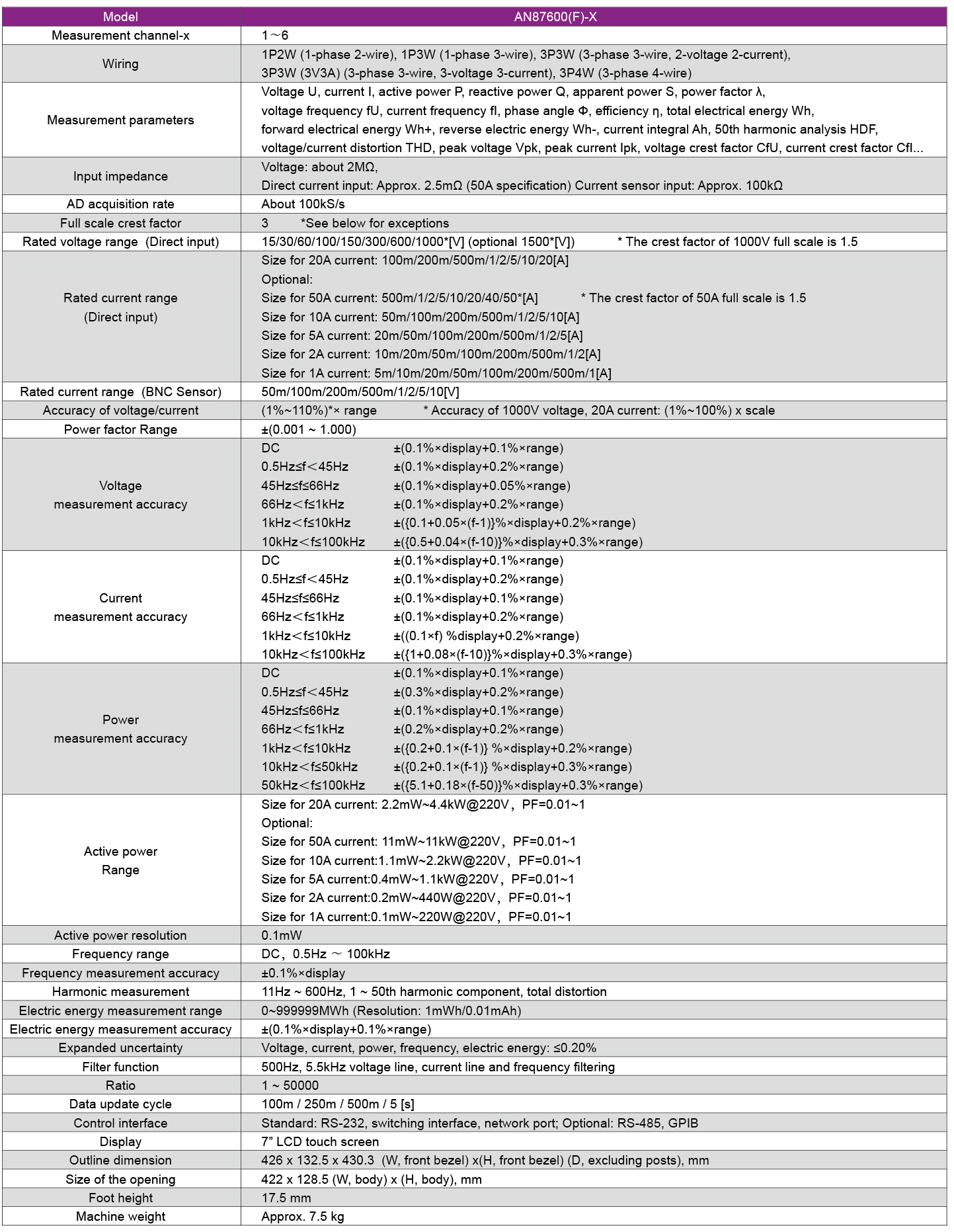

Technical Specifications

Technical Specifications
