Three-phase High-precision Power Analyzer

Three-phase High-precision Power Analyzer

ANPM300(F)
  • Product Model:
    ANPM300(F) Series
  • Application:
    Photovoltaic inverter and other single/three-phase product power, efficiency, harmonic analysis, test before/after aging, widely used in the test system ATE platform. Electric vehicle and charging pile electrical performance measurement.

Product Description

Three-phase High-precision Power Analyzer

Product Features

  • Test bandwidth: DC, 0.5~100kHz, 0.1%, 0.15~1000V, 0.2m~50A (including custom range)
  • 50th harmonics, external sensor input
  • Standard LAN port, RS232/485 port, MODBUS-RTU, TCP-MODBUS and custom protocols.
  • Optional motor board, compatible with electro-mechanical power synchronization efficiency test.

Product Application

Photovoltaic inverter and other single/three-phase product power, efficiency, harmonic analysis, test before/after aging, widely used in the test system ATE platform. Electric vehicle and charging pile electrical performance measurement.

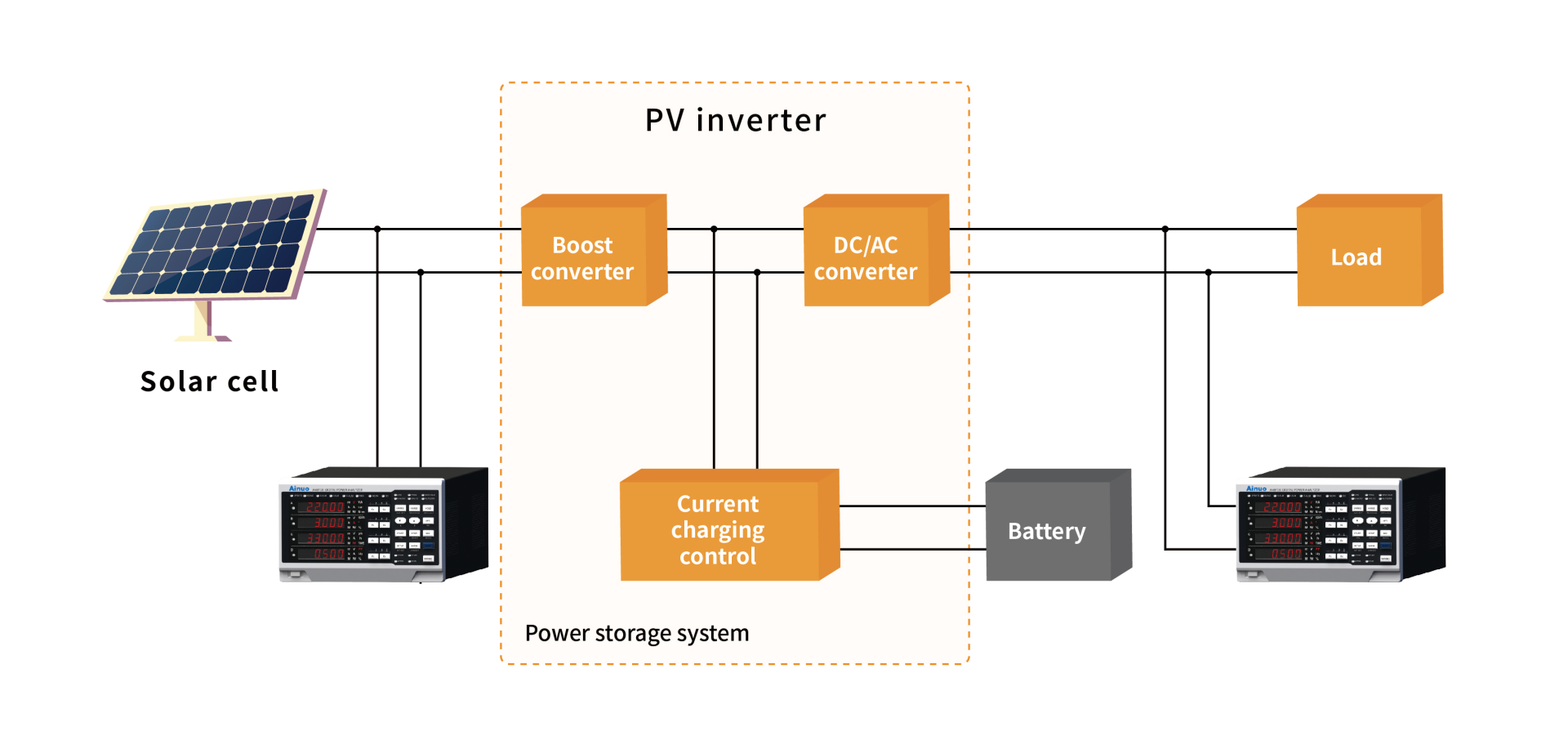

  Performance measurement

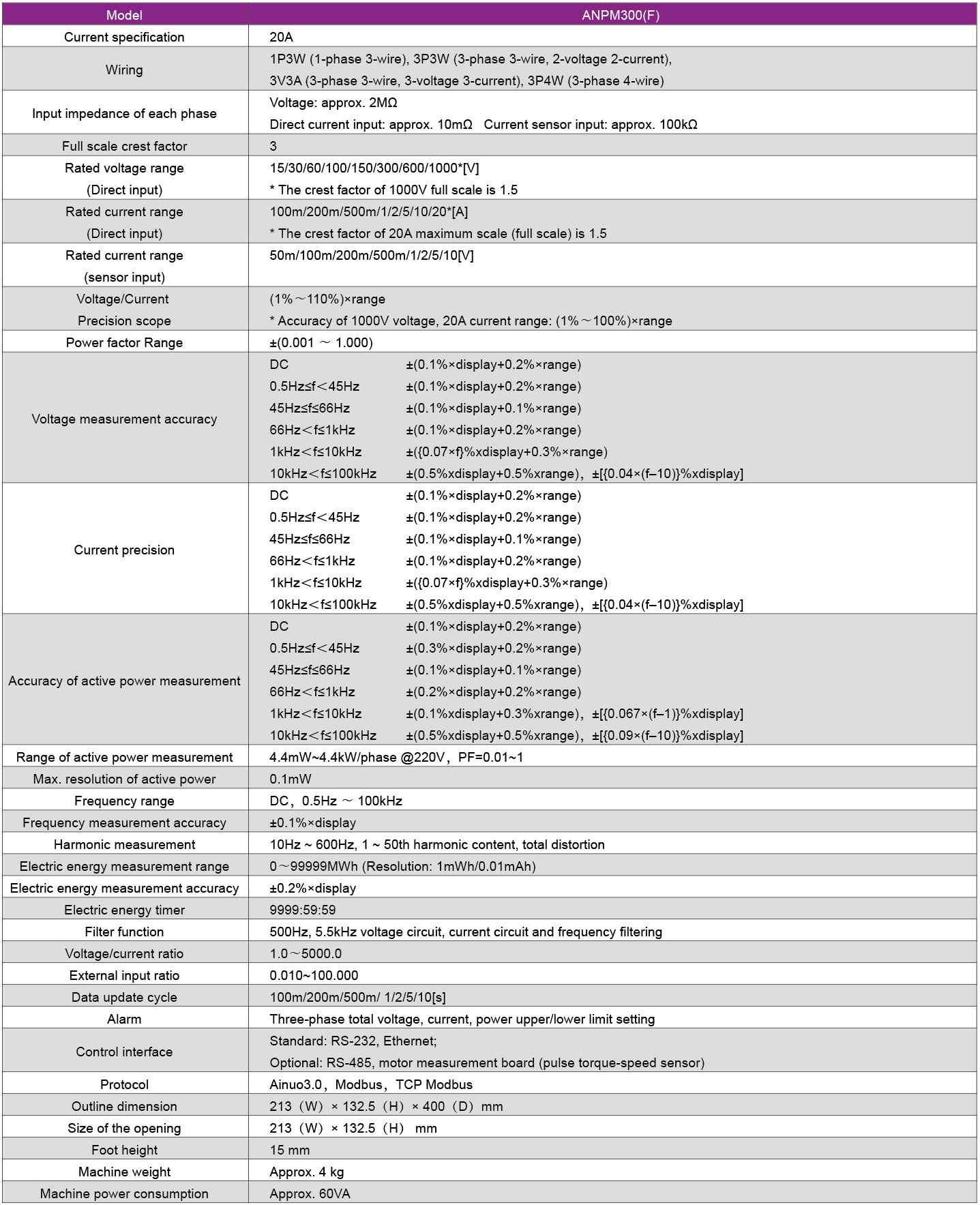

Technical Specifications

Technical Specifications
