Ground Bond Resistance Tester

Ground Bond Resistance Tester

AN1616(F)/AN1613(F)/AN9613(F)
  • Product Model:
    AN1616(F)/AN1613(F)/AN9613(F)
  • Application:
    Meet the testing requirements of various electrical products and parts.

Product Description

AC grounding: 64A/600mΩ, 32A/600mΩ, 1% accuracy

DC grounding: 60A/600mΩ, 40A/600mΩ, 1% accuracy

Multi-channel: Optional 8-channel switching card for AC grounding, supporting cascading

Informatization: Android platform, data storage, barcode recognition, MES connection

Product Features

Safe and reliable
  •  Draft units who participated in drafting of national standards and verification regulations for safety compliance analyzers;
  • 30 years of experience on safety testing expertise and understanding of customer needs;
  • Complete electromagnetic environment, load conditions, endurance test verification.
Rich functions
  • Two modes: resistance/voltage mode, meet various industry standards;
  • Multi-channel card: Optional 8-channel switching card for AC grounding, supporting cascading;
  • Automatic start: AC ground loop detection, loop formation, automatic start test.
Intelligent and automatic
  •  Smart safety compliance analyzer: Android system, 7” touch screen, self-learning smart keyboard;
  • Barcode recognition: barcode scanning, program matching, automatic startup, data packing;
  • Data management: local storage, network transmission, direct connection with MES system;
  • Interfaces: RS232, RS485, PLC, USB, CAN, WIFI.

Product Application

Meet the testing requirements of various electrical products and parts.

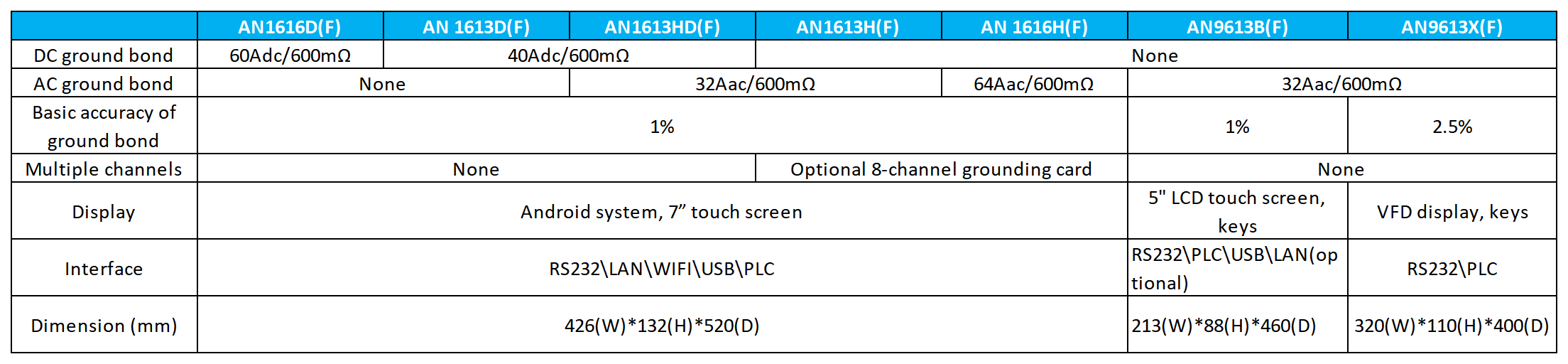

Technical Specifications

Technical Specifications
