Integrated Constant Environmental Test Chamber

Integrated Constant Environmental Test Chamber

MIHW_Series
Accurate Temperature Control, Integrated Operation, Compatible with Neware BTS
It is mainly used for temperature test of coin cell and 3C pouch cell. It can be placed maximum 160 coin cell in the chamber. It has the characteristics of maximizing the utilization of equipment space and BTS upper computer integrated operation control. It is applied for research institutions, universities and lab centers of battery manufactures.

Product Description



Lighter on the planet.

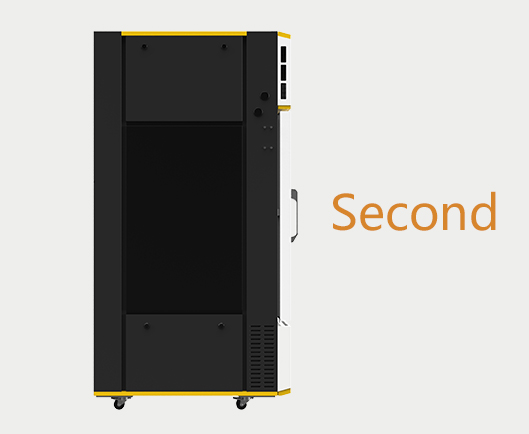

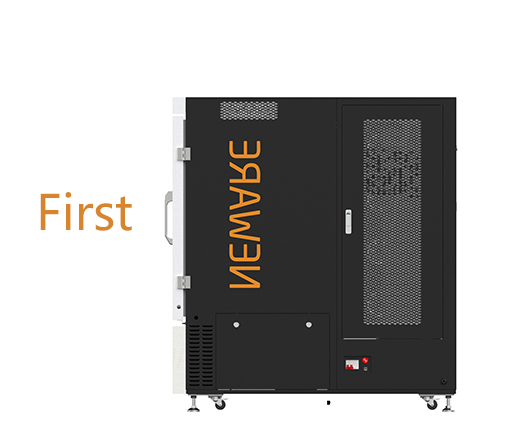

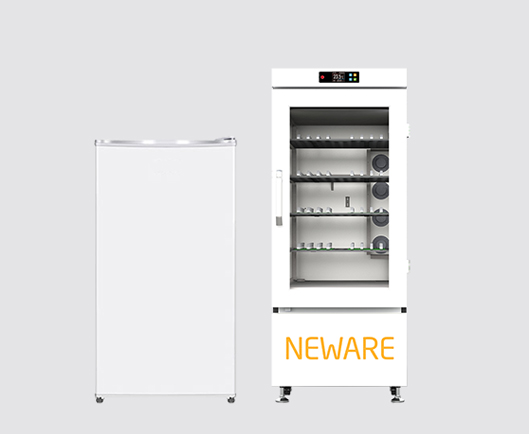

The difference between the second generation with the first generation of all-in-one thermostat, from carbon peak to closer to carbon neutralization

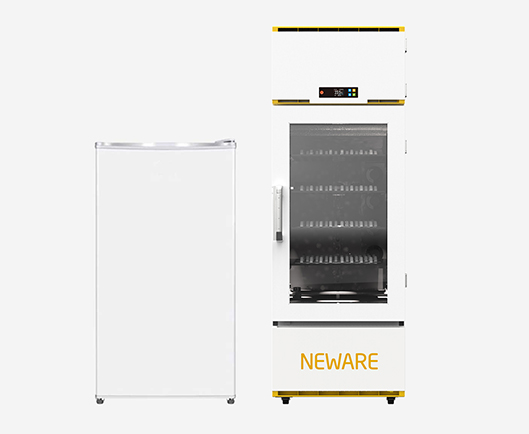

Slimmer, taller and lighter


More Wonderful Things.

Temperature Deviation
±2.0℃
(No Load and Stable Temperature)

Testing Environment Temperature
0℃~30℃


Temperature Range
0℃~60℃


Cooling Efficiency
≤40MINS
(25℃→0℃)

Heating Efficiency
≤30MINS
(0℃→60℃)

Temperature Fluctuation
≤1℃
(No Load and Stable Temperature)

To create an rigorous testing environment as
an artist's meticulous creative spirite.

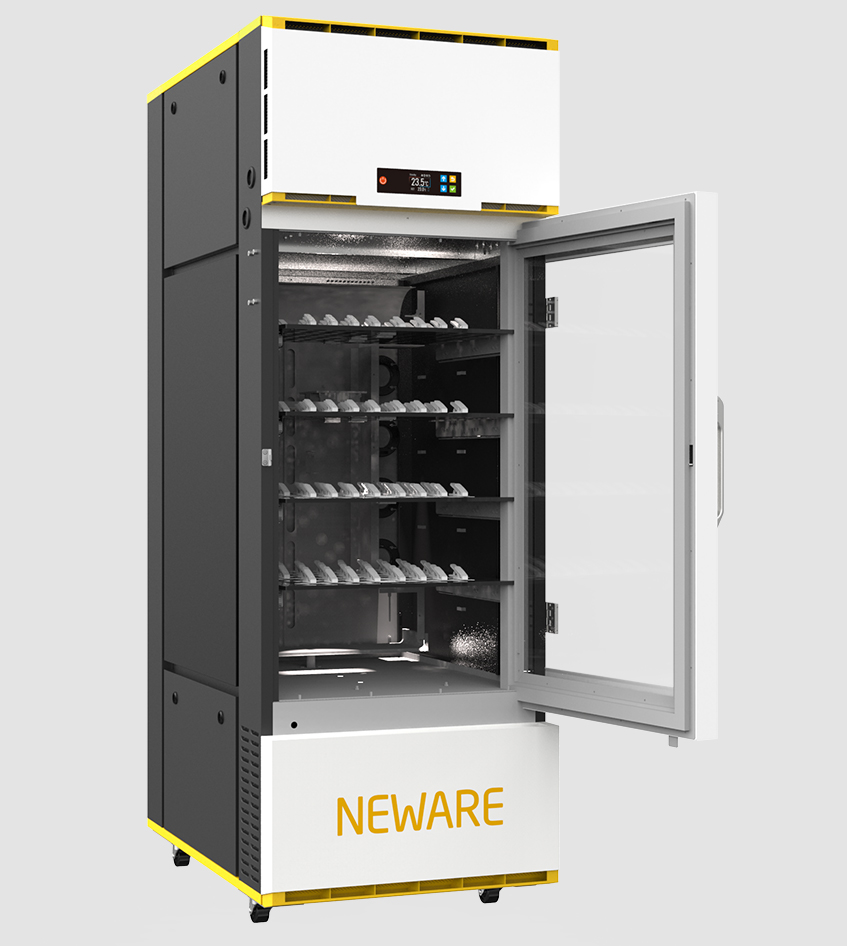

  Maximum space utilization, and testing 160 coin cell at the same time.

Each layer of the tray has 40 channels. It can place 4 layers in 200 liters of the chamber, and it can test 160 coin cells at the same time. (I ≤ 100mA).

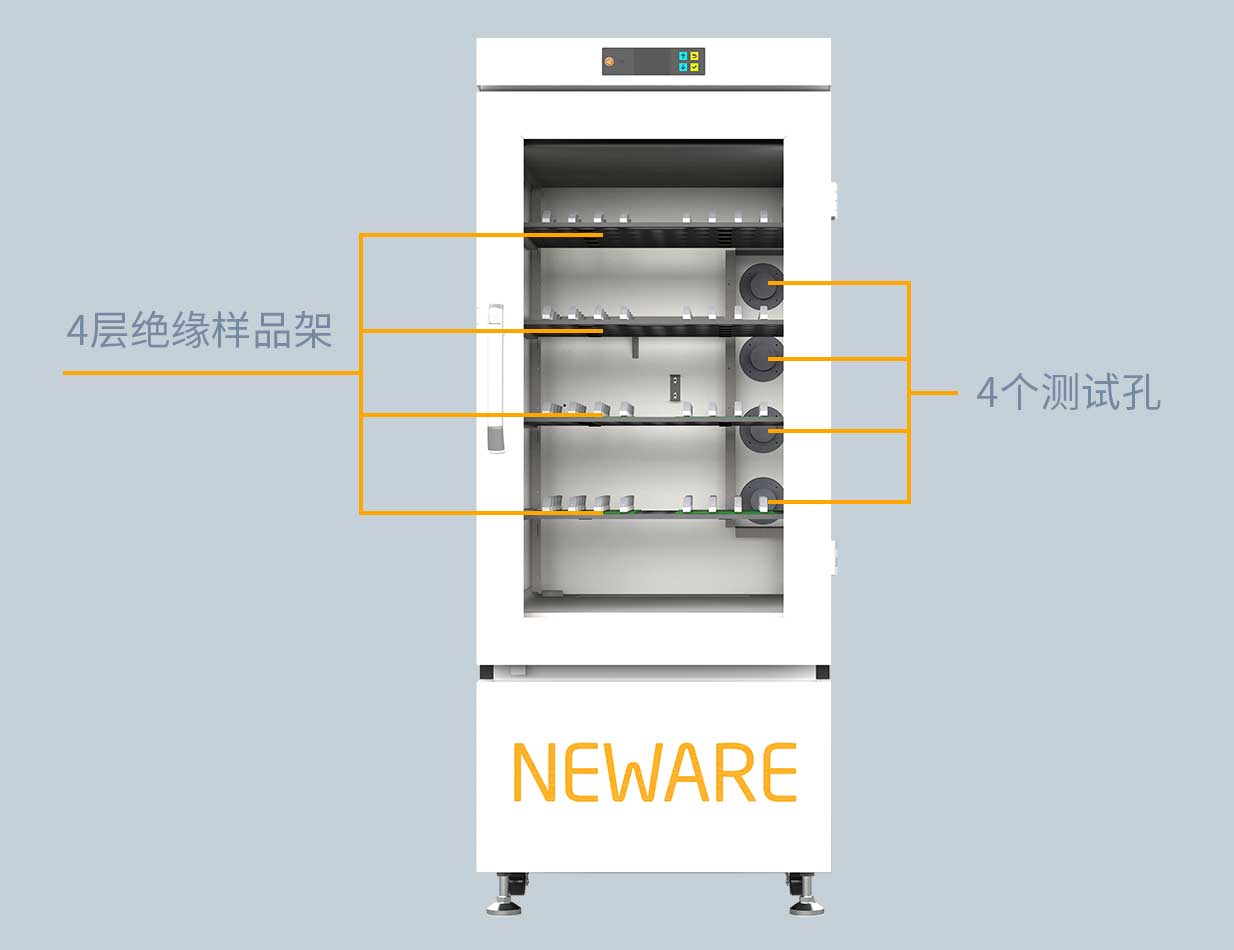

4 test holes and 4 layers of insulation sample rack

Hidden lines refrain us from being in disorder.


Intergrated Operation Control via BTS Upper Computer

Charge/ Discharge battery testing system and environmental test chamber realize integrated operation control via BTS
upper computer. Maximize battery characteristics and functions.

Lab Aesthetics:Minimize floor space.

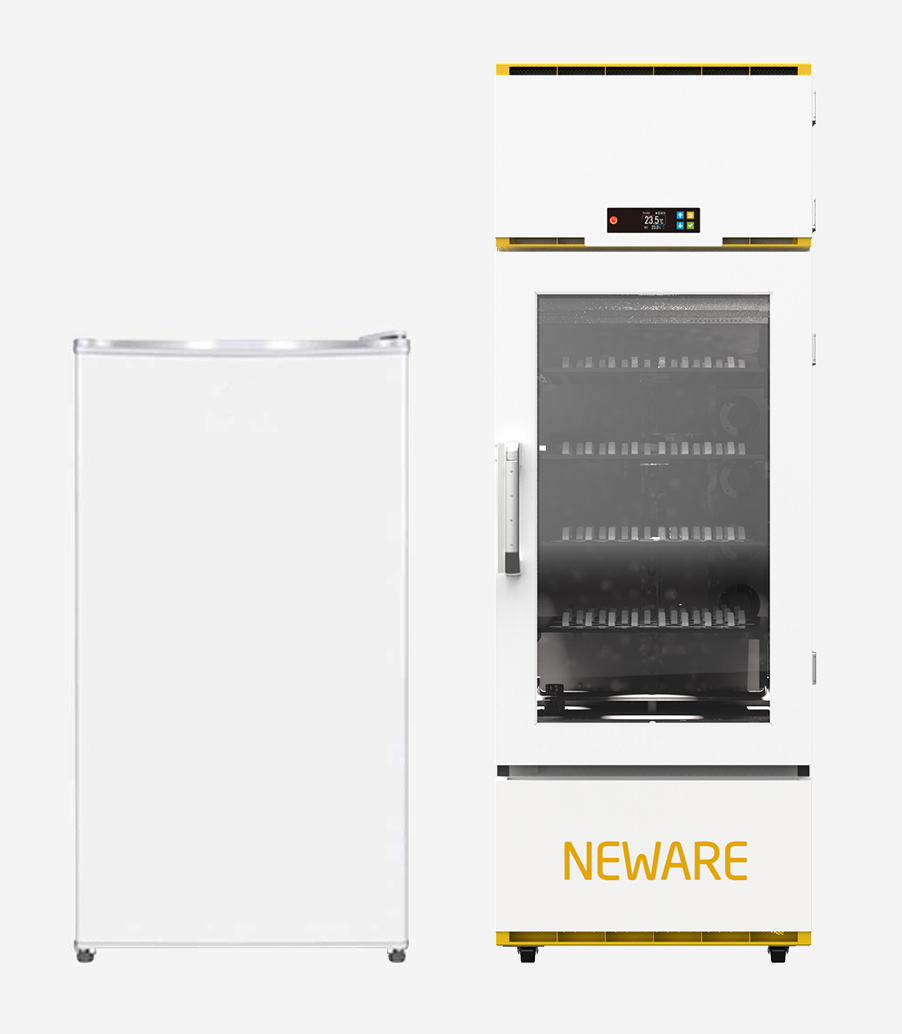

The second generation integrated temperature test chamber, with constant volume and constant number of channels, saves laboratory space.

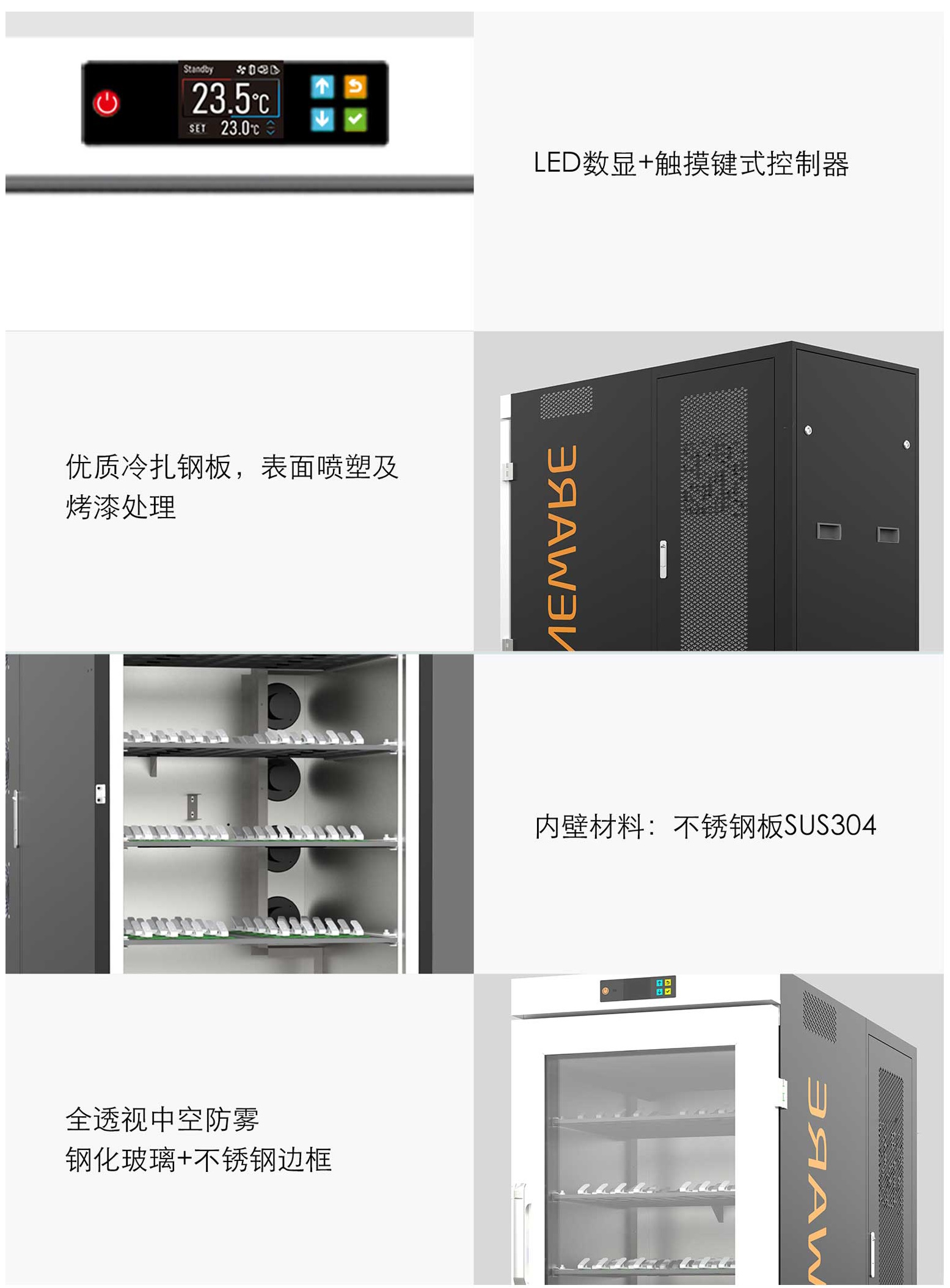

Sophisticated Design and Minimalist Style

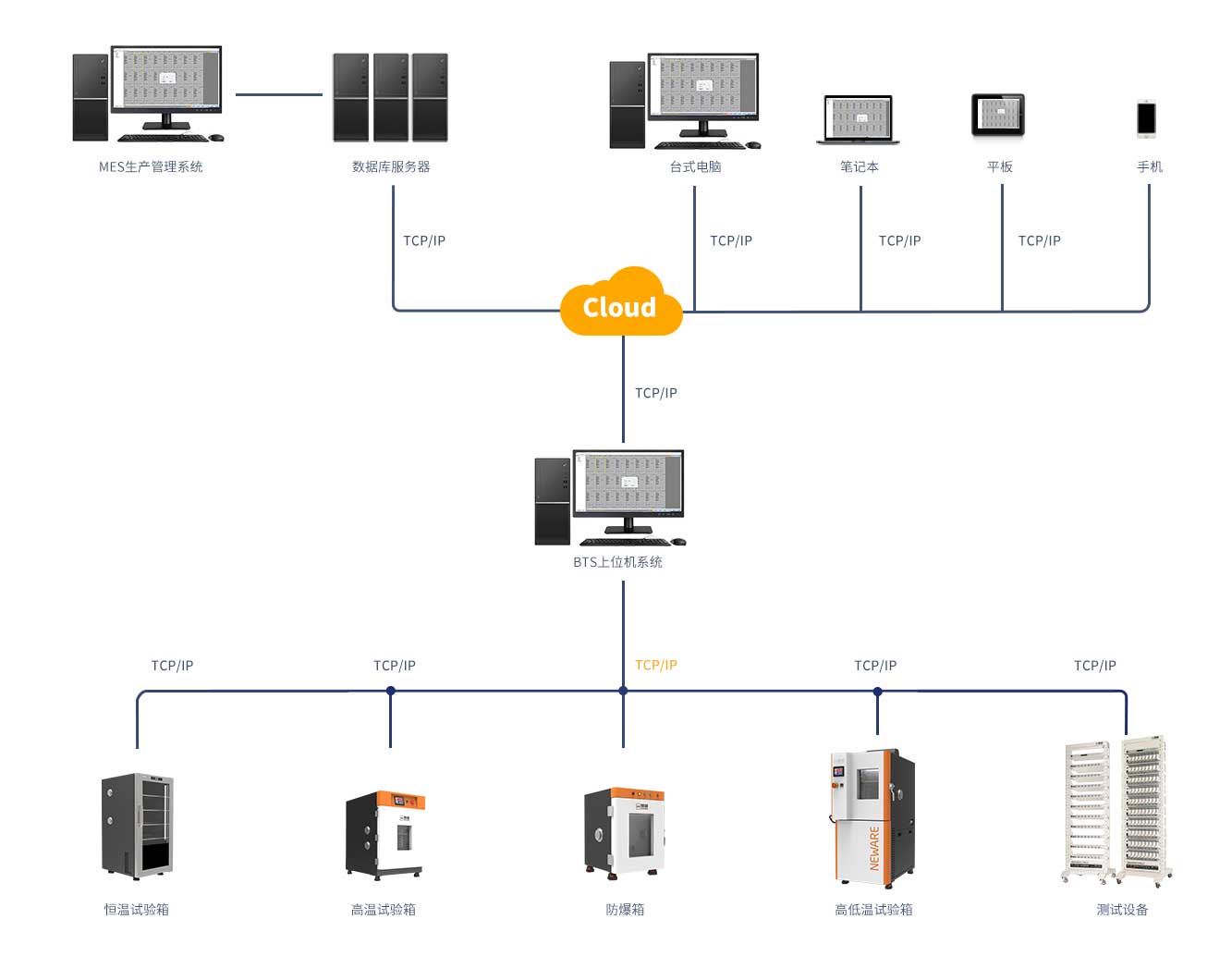

Network mode:Cloud control. Control and monitoring anytime and anywhere.

Communication conversion module, Ethernet interface, Connecting test equipment, Real-time data transmission and Real-time analysis of core data.

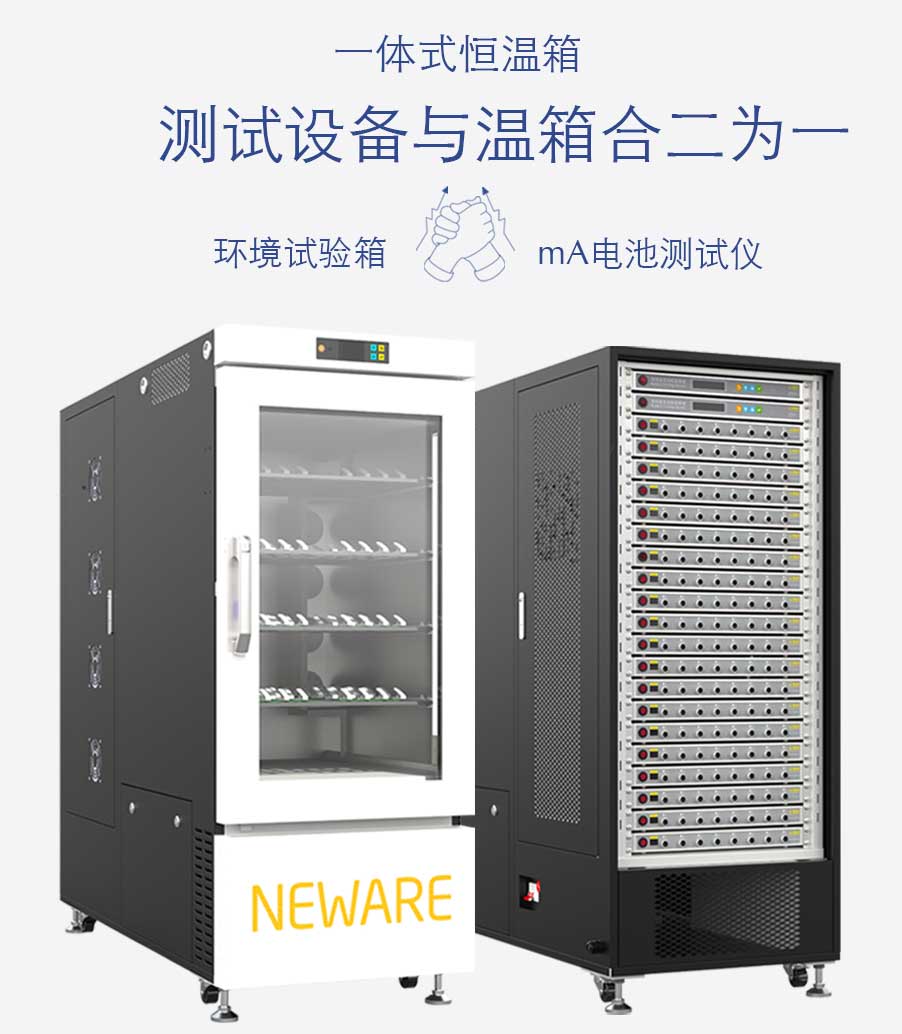

Size:Merge into a single one so as to minimize floor space.

The test equipment and chamber are combined into one, which greatly reduces the floor area.
Inside Dimensions:
W547mm*D637mm*H847mm

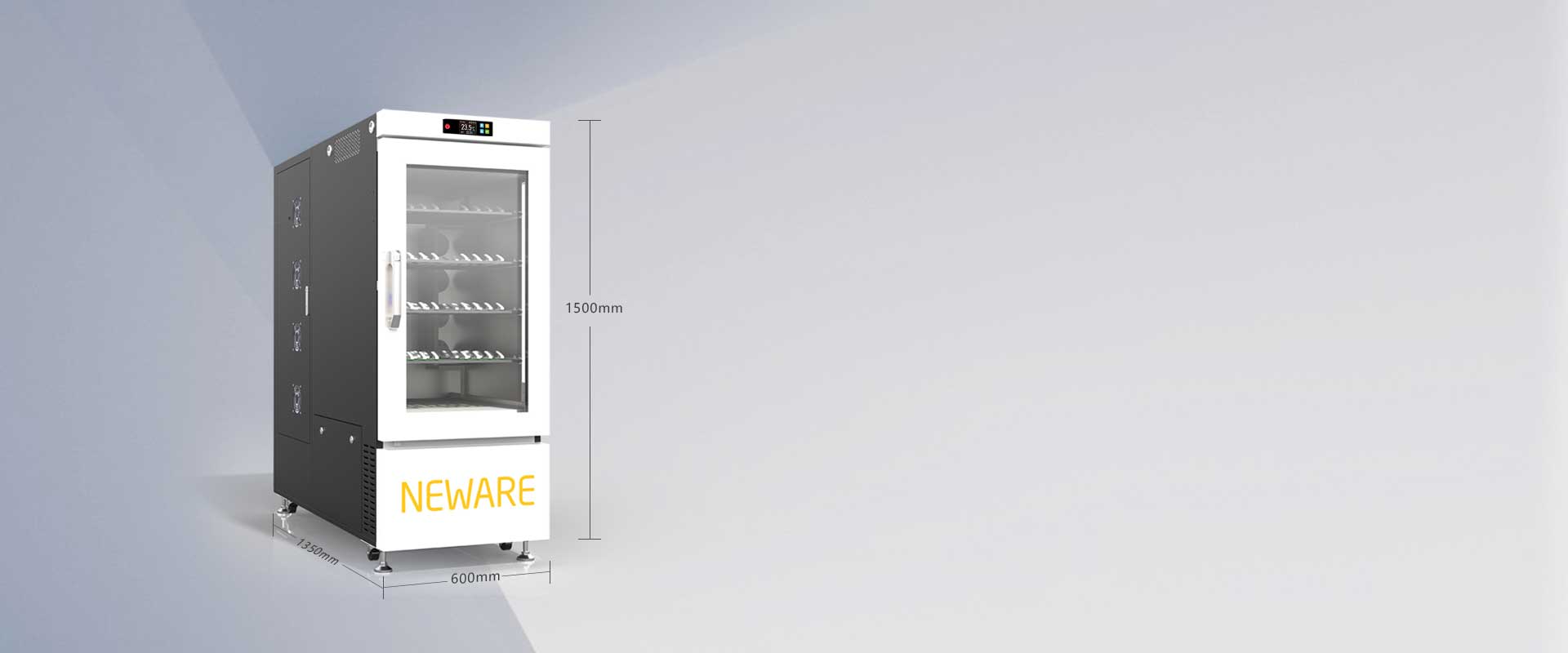

Overall Dimensions:
W600mm*D1350mm*H1500mm

Customer Field
