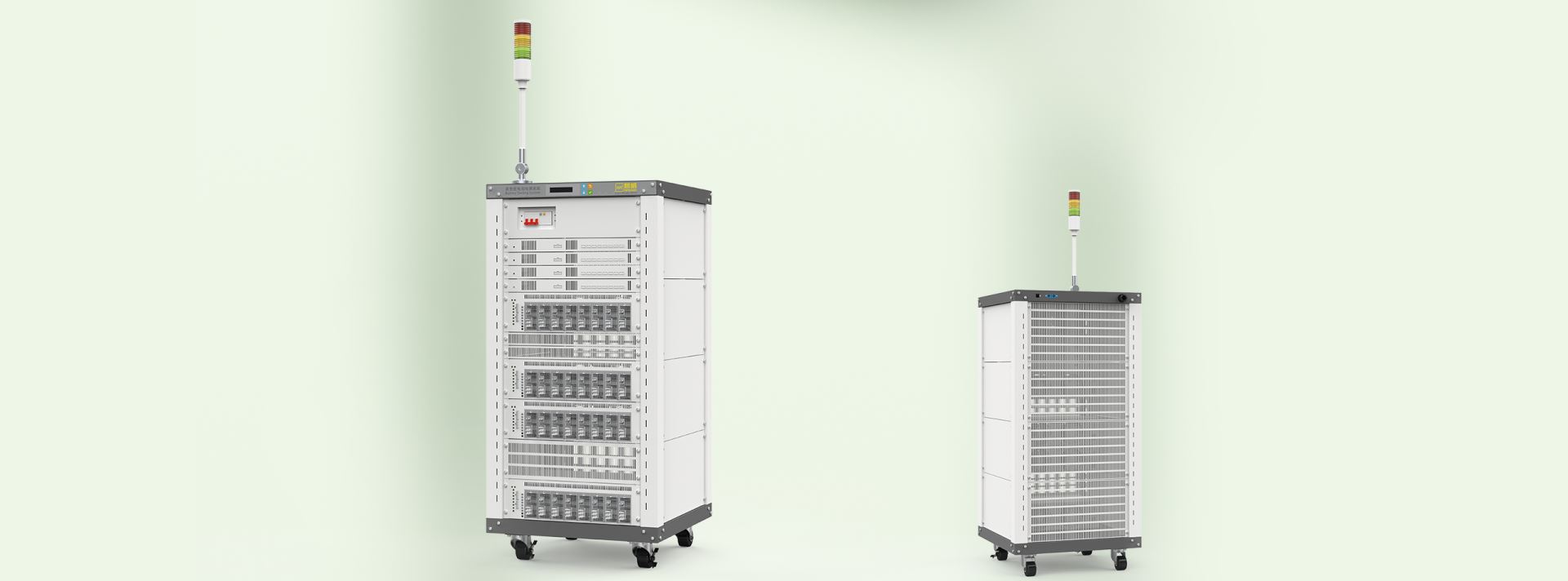

8CH Regenerative Power Cell Testing

8CH Regenerative Power Cell Testing

CTE-4008D-5V30A-(NTA)
Standard Volume but Regenerative Performance

Mainly support: Power cell formation, grading and cycle life testing.
Highlights: Multi range, high response, high precision, high sampling, simple structure and modularity, 64 channels, each channel is programmed independently, supports 254 work steps at most.
Application: Battery manufacturers, new energy vehicle manufacturers.

Product Description

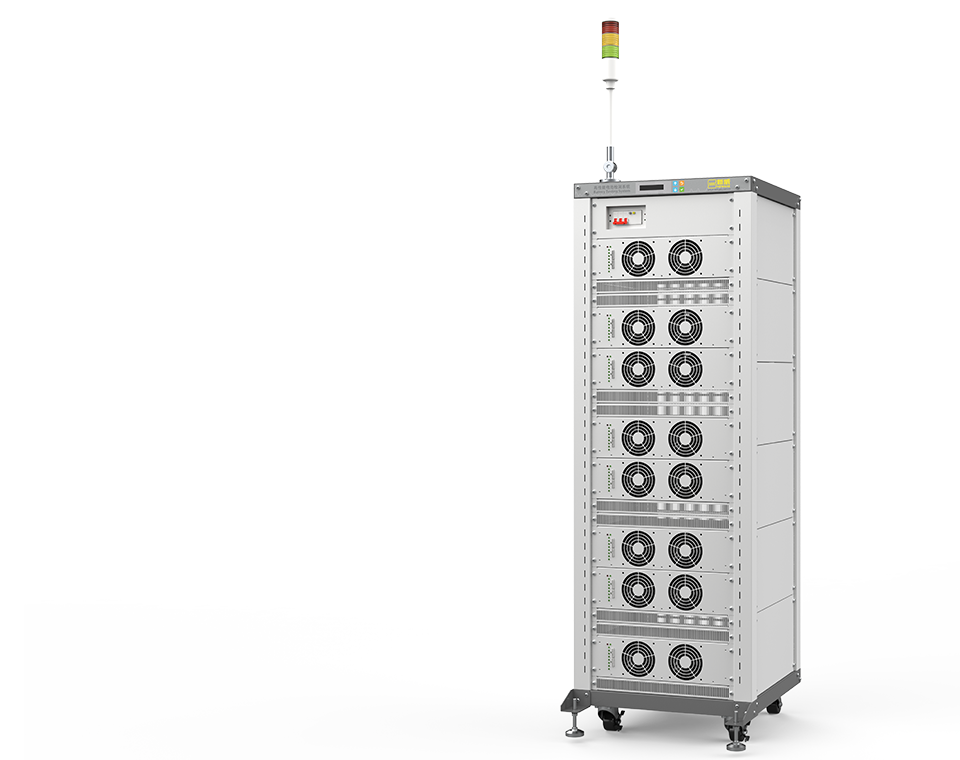

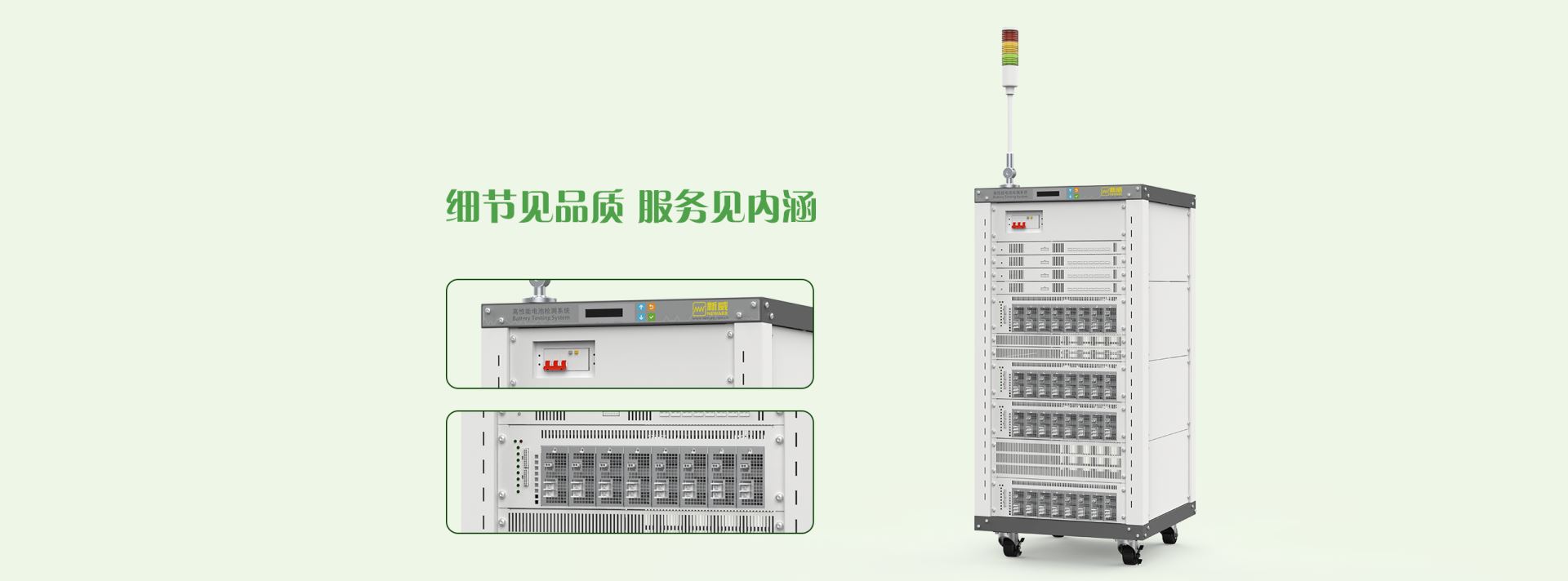

CTE-4064D-5V30A

Standard Volume but Regenerative Performance
Mainly support: Power cell formation, grading and cycle life testing.
Highlights: Multi range, high response, high precision, high sampling, simple
structure and modularity, 64 channels, each channel is programmed independently,
supports 254 work steps at most.
Application: Battery manufacturers, new energy vehicle manufacturers.
Space
Reduce 50%

Electricity Fees
Reduce 50%
Calorific Value
Reduce 50%

Energy Consumption
Reduce 50%

Early in
2008 Year
Successfully Developed


Up to
32,000 Sets
Shipments


Minimum
500 ms
Pulse Width

Up to
≤ 10 ms
Response Time


Up to
0.05% FS
Accuracy


Up to
10 HZ/100 HZ
Response Time
Full bridge buck\boost circuit
topology, discharge voltage lower to
0V
The core processor adopts 32bit DSP
and supports floating-point
operation
Bidirectional smart DCAC inventor
adopts high frequency rectifier
reversible SMR technology. It has
realized high power factor harmonics
and ensured power quality
AD16bit,DA14bit,Temperature
drift of the core device is less than
50ppm
Modular design and fast plug connector
that is used for current
and voltage is easy for us to upgrade
and maintain

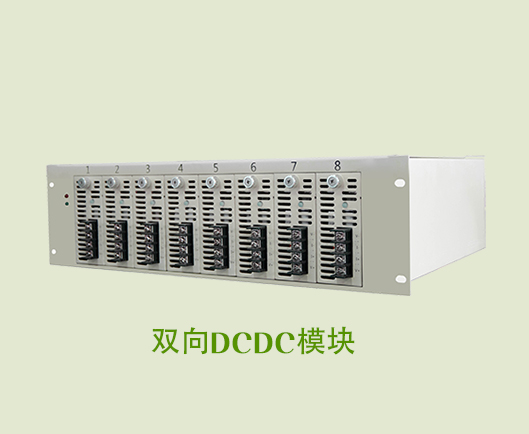

Bidirectional smart DCDC converter
adopts synchronous rectification
technology



Research Institutions


Material/ Semiconductor
Enterprises
University/ Hospital/
Chemical Industry

Laptop/ Tablet/ iPhone
Manufacturers

Power Tool/ UAV Manufacturer


BTS-ES High Efficiency Energy-feedback Battery Testing System

Customized for 5V formation and Grading Battery Testing System

1 Bidirectional smart DCDC converter adopts synchronous rectification technology and 32-bit high-speed DSP processor with the floating-pointoperation, so that not a single energy conversion leaks out;
2 In order to make sure power grid quality, bidirectional smart DCAC inventor adopts high frequency rectifying reversible SMR technology to realize high power factor and low harmonic;
3 It can significantly reduce factory environmental temperature, save energy consumption, and reduce floor space. What's more, it can also improve the products' cost performance.
General Trend Energy-feedback Battery Testing System!
Application: Power cell formation, grading and cycle life testing;
Advantages: Improving energy utilization efficiency and reducing production energy consumption.
Mainly support: Battery manufacturers, new energy vehicle manufacturers.

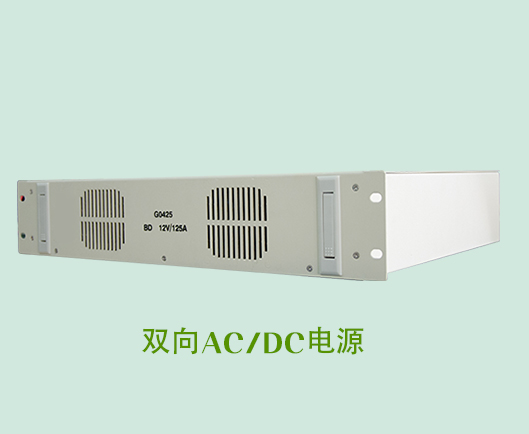

Bidirectional DCDC Modular;Bidirectional AC/DC Power Supply.

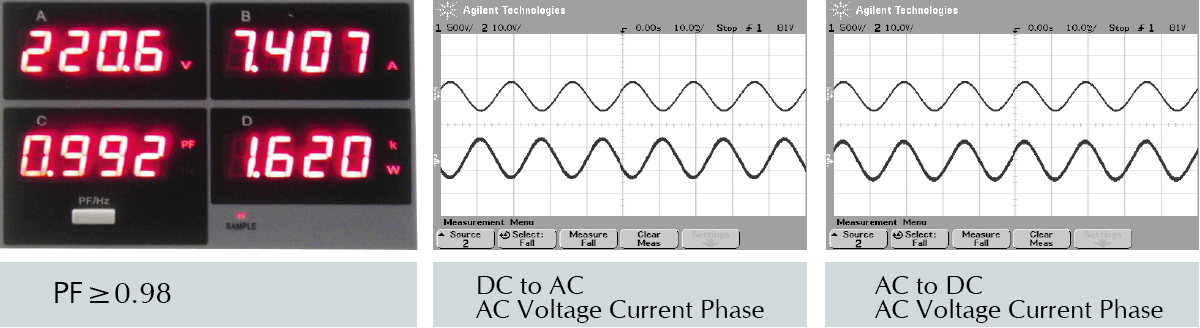

Full Sine Wave Feedback, Low Harmonic, High Power Factor, High Efficiency

In order to meet CELL, MODULE and PACK testing requirements in different fields, NEWARE has launched three wide range bus solutions.
Software
Essential components
Download Neware BTS Software
dQ/dV
dQ/dV differential capacity curve: the peak on the curve indicates that there is a voltage plateau on the charge and discharge curve, and different peaks represent different electrochemical reactions.
Conditions Switches
Battery testing steps need to be estimated for several conditions according to different operations during testing applications; Conditions switches meet requirements for multi-exits programming types. “And””or” logic operation, “≥”, ”≤”, ”=” comparatively calculate; Time duration ”t”, can achieve control requirements for special testing. Every step supports 5 condition switches; Support multi-exits, go to any steps, achieve more flexible process control.
Segment-Record Conditions
Data record settings for voltage, current and time are supported; 3 segment-record conditions can be set for each step; Every segment can be set: ΔT, ΔV and ΔI .
Control peripheral equipment by communication
BTS Server come true the peripheral equipment (Battery tester & Automation) communication control via switch.
Super-capacitor testing
The unit of Q is Coulomb, 1 Coulomb = 1A * 1s = 1As; 1Ah = 3600 As(Amp Second); Work voltage U = Charge upper limited voltage - Discharge bottom limited voltage; Working voltage can be set and the EDLC coulomb could be calculated automatically by the software.

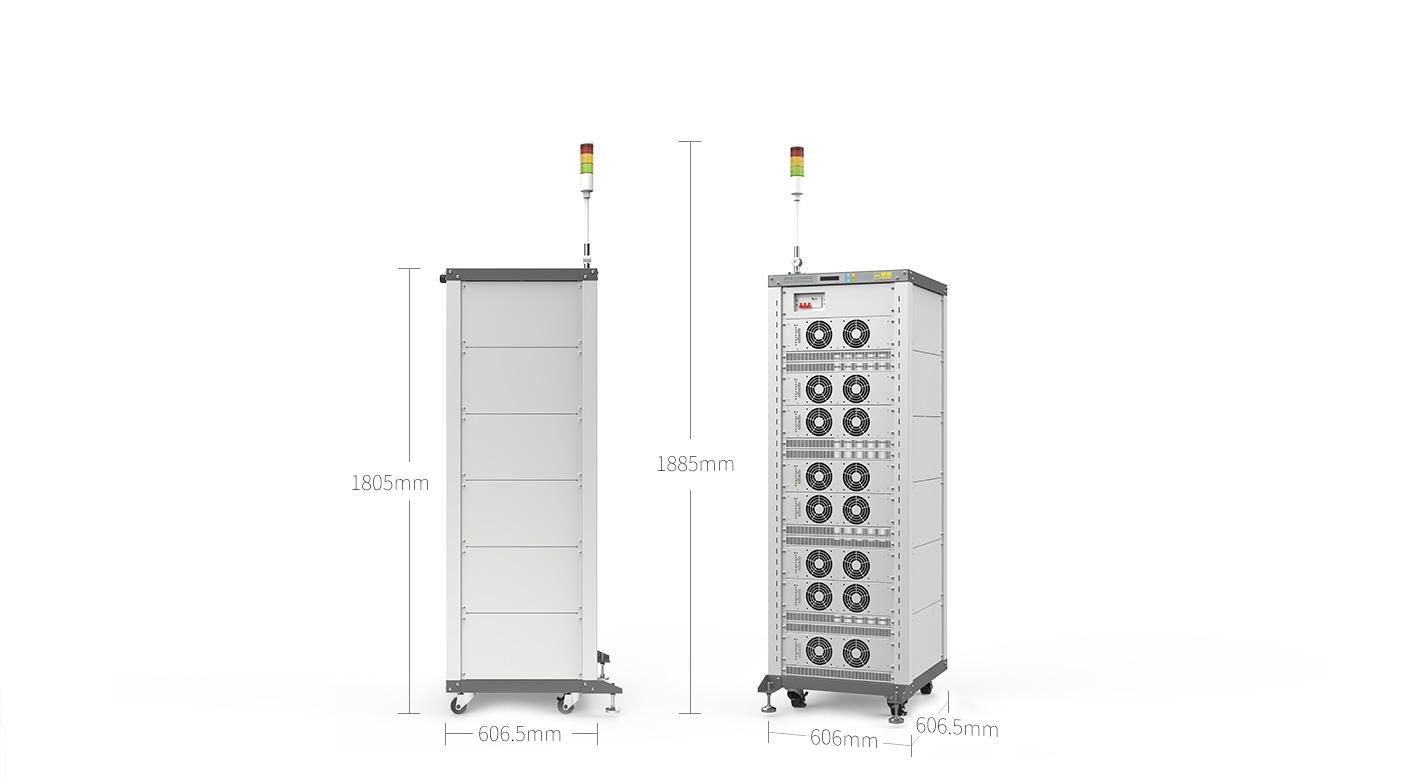

Size & Weight
Size(包括报警灯):
设备净重:约
System Architecture
CTE-4064D-5V30A Power Cell Tester specs
Learn More……
