Multi-channel Intelligent Electrical Safety Analyzer

Multi-channel Intelligent Electrical Safety Analyzer

AN1635(F)/36(F)/37(F)/38(F)
  • Product Model:
    AN1635(F)/36(F)/37(F)/38(F) Series
  • Application:
    Meet the safety testing requirements of various electrical products with multi-input and multi-output, such as switching power supplies, power adapters, frequency converters, inverters, UPS, motors, electric drives, batteries, and charging piles

Product Description

This Ainuo AN1635H(F)/AN1636H(F)/AN1637H(F)/AN1638H(F)/AN1632H(F)/AN1632D(F) series multi-channel intelligent electrical safety analyzer has the characteristics of intelligence, high speed and high precision, with functions for AC/DC voltage withstand voltage, insulation resistance, AC ground bond resistance test, arc detection, open/short circuit detection, electric shock protection, multi-channel switching and others.

This series of products have wide ranges: 5kV/100mA (or 40mA) AC withstand voltage, 6kV/20mA DC withstand voltage, 6kV/50GΩ insulation resistance, 64A (or 32A)/600mΩ AC ground bond test.

This series of product has an intelligent platform, informatization functions and automatic interfaces, meeting requirements of high-quality development, intelligent manufacturing and industrial upgrading.

This series of products can meet the safety testing requirements of various electrical products with multi-input and multi-output, such as switching power supplies, power adapters, frequency converters, inverters, UPS, motors, electric drives, batteries, and charging piles.

Product Features

Safe and reliable
  • Draft units who participated in drafting of national standards and verification regulations for safety comprehensive tester;
  • 30 years of experience on safety testing expertise and understanding of customer needs;
  • Complete electromagnetic environment, load conditions, endurance test verification;
  • Electric shock protection, arc detection, open/short circuit detection and other functions.
Convenient and efficient
  • Fast measurement and control: fast test, switching and discharge;
  • Parallel test: GB and ACW/DCW/IR in parallel, doubled speed;
  • Flexible configuration: multi functions, channels and models.
Intelligent and automatic
  • Smart safety compliance analyzer: Android system, 7” touch screen, self-learning smart keyboard;
  • Barcode recognition: barcode scanning, program matching, automatic startup, data packing;
  • Data management: local storage, network transmission, direct connection with MES system;
  •  Interfaces: RS232, USB, LAN, WIFI, PLC, I/O control.

Product Application

This series of products can meet the safety testing requirements of various electrical products with multi-input and multi-output, such as switching power supplies, power adapters, frequency converters, inverters, UPS, motors, electric drives, batteries, and charging piles.

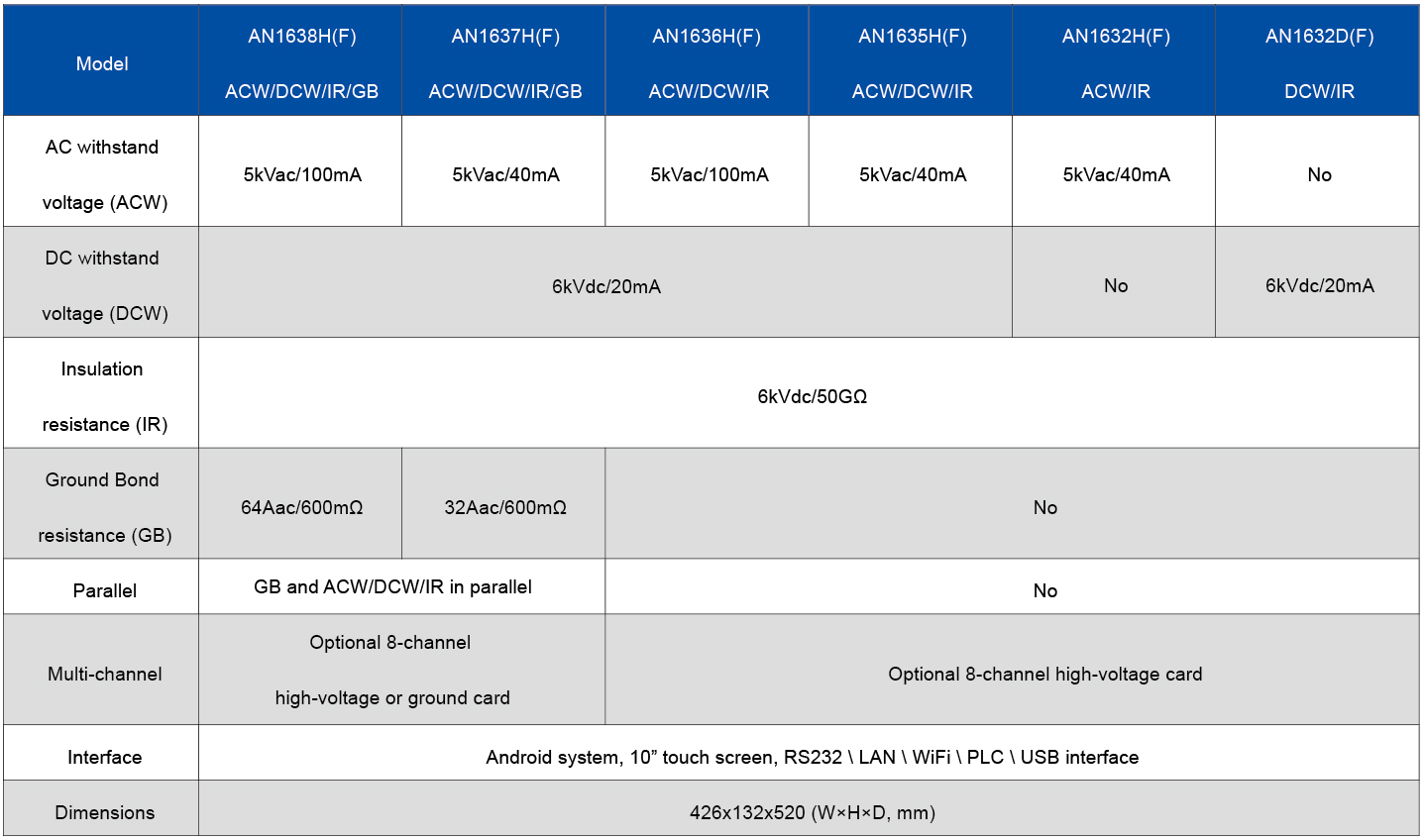

Technical Specifications

Technical Specifications
