48CH Regenerative Power Cell Testing

48CH Regenerative Power Cell Testing

CTE-4048D-5V60A-HC
Power Cell Tester

Neware CTE-4032-5V60A-NTA is a kind of 32CH/24U power cell tester. It has many kinds of working mode, such as CVC, CCC, CCD. It also own multiple safety protection functions, such as battery reverse connection alarm, overcurrent shutdown, protection function during operation, etc. Providing supporting professional analysis software. It provides impulse charge and discharge test, DCIR test, cycle life test and multiple charge and discharge test. It is applied for research institutions, universities and power battery production enterprises.

Product Description

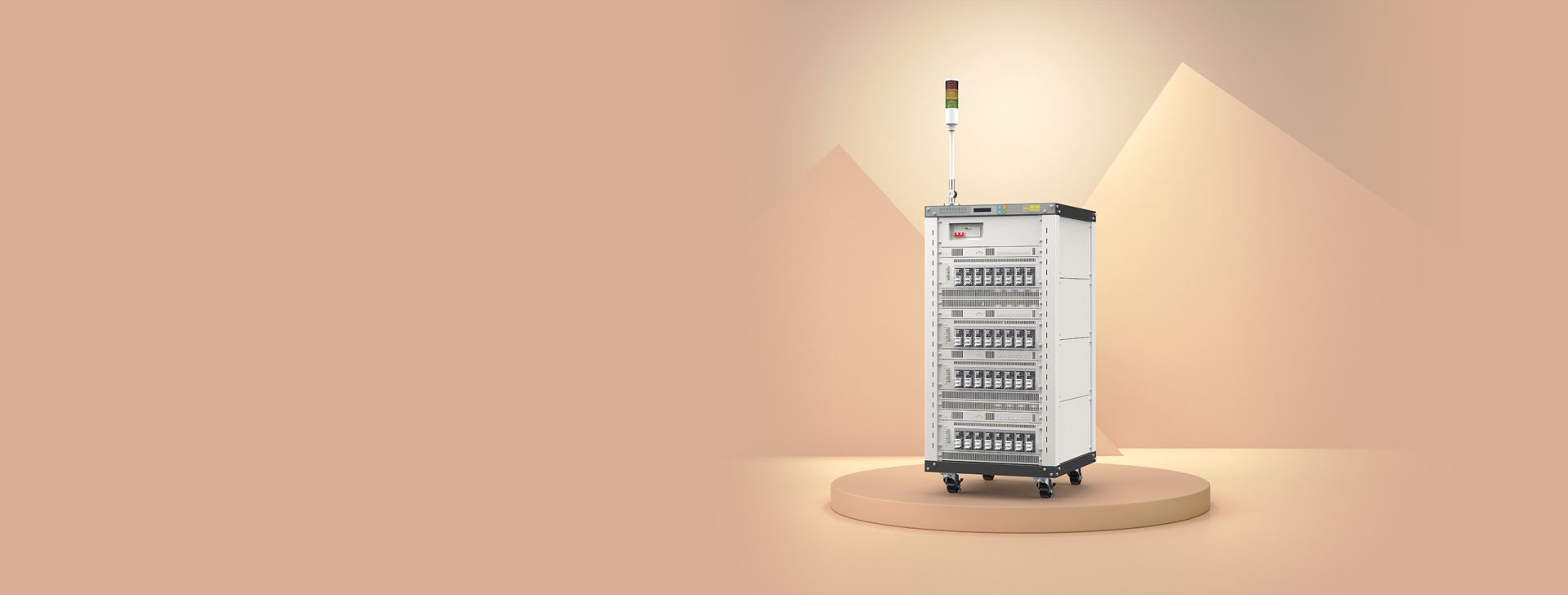

CTE-4032-5V60A-NTA
Power Cell Tester
Pulse Charge/Discharge
DC Internal Resistance
Rate Charge/Discharge   Cycle Life
Download Neware BTS Software

Neware CTE-4032-5V60A-NTA is a kind of 32CH/24U power cell tester. It has many kinds of working mode, such as CVC, CCC, CCD. It also own multiple safety protection functions, such as battery reverse connection alarm, overcurrent shutdown, protection function during operation, etc. Providing supporting professional analysis software. It provides impulse charge and discharge test, DCIR test, cycle life test and multiple charge and discharge test. It is applied for research institutions, universities and power battery production enterprises. :

Early in
2008 Year
Successfully Developed


Up to
32,000 Sets
Shipments


Minimum
500 ms
Pulse Width

Up to
≤ 10 ms
Response Time


Up to
0.05% FS
Accuracy


Up to
10 HZ/100 HZ
Response Time



Research Institutions


Material/ Semiconductor
Enterprises
University/ Hospital/
Chemical Industry

Laptop/ Tablet/ iPhone
Manufacturers

Power Tool/ UAV Manufacturer

Software
Essential components
Download Neware BTS Software
dQ/dV
dQ/dV differential capacity curve: the peak on the curve indicates that there is a voltage plateau on the charge and discharge curve, and different peaks represent different electrochemical reactions.
Conditions Switches
Battery testing steps need to be estimated for several conditions according to different operations during testing applications; Conditions switches meet requirements for multi-exits programming types. “And””or” logic operation, “≥”, ”≤”, ”=” comparatively calculate; Time duration ”t”, can achieve control requirements for special testing. Every step supports 5 condition switches; Support multi-exits, go to any steps, achieve more flexible process control.
Segment-Record Conditions
Data record settings for voltage, current and time are supported; 3 segment-record conditions can be set for each step; Every segment can be set: ΔT, ΔV and ΔI .
Control peripheral equipment by communication
BTS Server come true the peripheral equipment (Battery tester & Automation) communication control via switch.
Super-capacitor testing
The unit of Q is Coulomb, 1 Coulomb = 1A * 1s = 1As; 1Ah = 3600 As(Amp Second); Work voltage U = Charge upper limited voltage - Discharge bottom limited voltage; Working voltage can be set and the EDLC coulomb could be calculated automatically by the software.

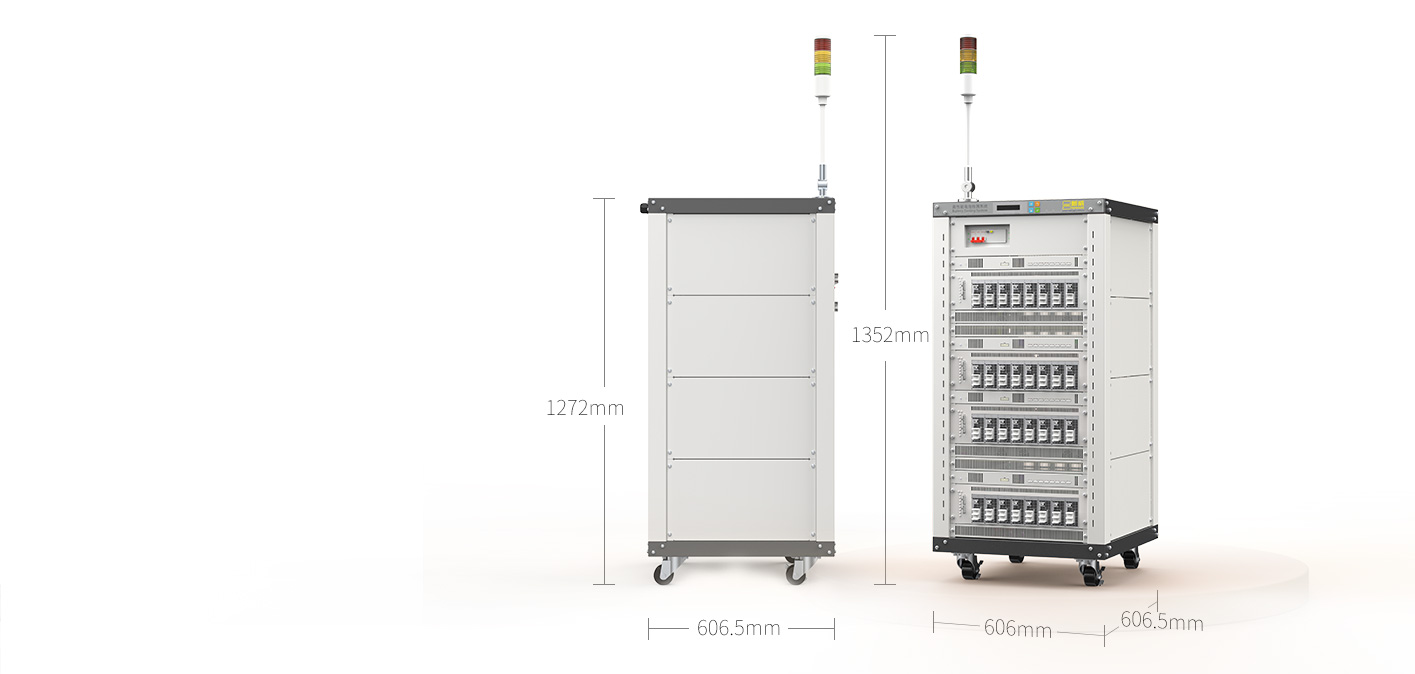

Size & Weight
Size(包括报警灯):
设备净重:约
Networking Mode
CTE-4032-5V60A-NTA Power Cell Tester specs
Learn More……
