Intelligent Laptop Cell Tester

Intelligent Laptop Cell Tester

CE-5008-10V20A-SMB
Intelligent Laptop Cell Tester

CE-5008-10V20A-SMB is the accumulation of 20 years' experience in the field of precision measurement, and integrates the latest generation of energy-saving inverter technology. It has the communication function of SMBus and I2C. What's more, it is suitable for testing 2-6 strings of battery packs in the application of notebook , tablet, mobile phone, electric tool, Small UAV, etc.

Product Description






Research Institutions


Material/ Semiconductor
Enterprises
University/ Hospital/ Chemical
Industry

Laptop/ Tablet/ iPhone
Manufacturers

Power Tool/ UAV Manufacturer



More Wonderful Things.


Current Accuracy
0.02%


Response Time
≤10ms


Voltage Accuracy
0.02%


DBC
Import


SMBus



Data Acquisition Frequency
100Hz

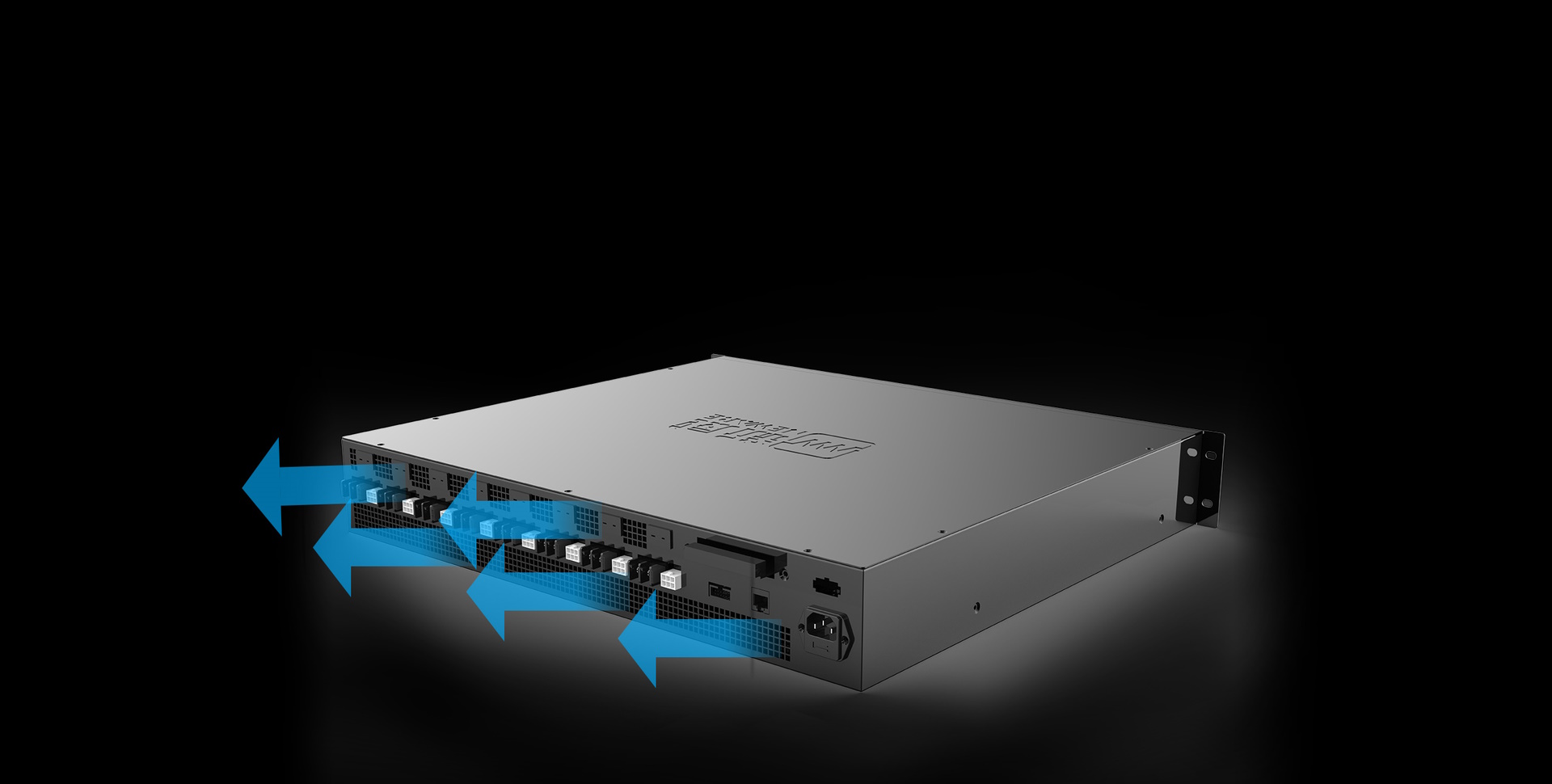

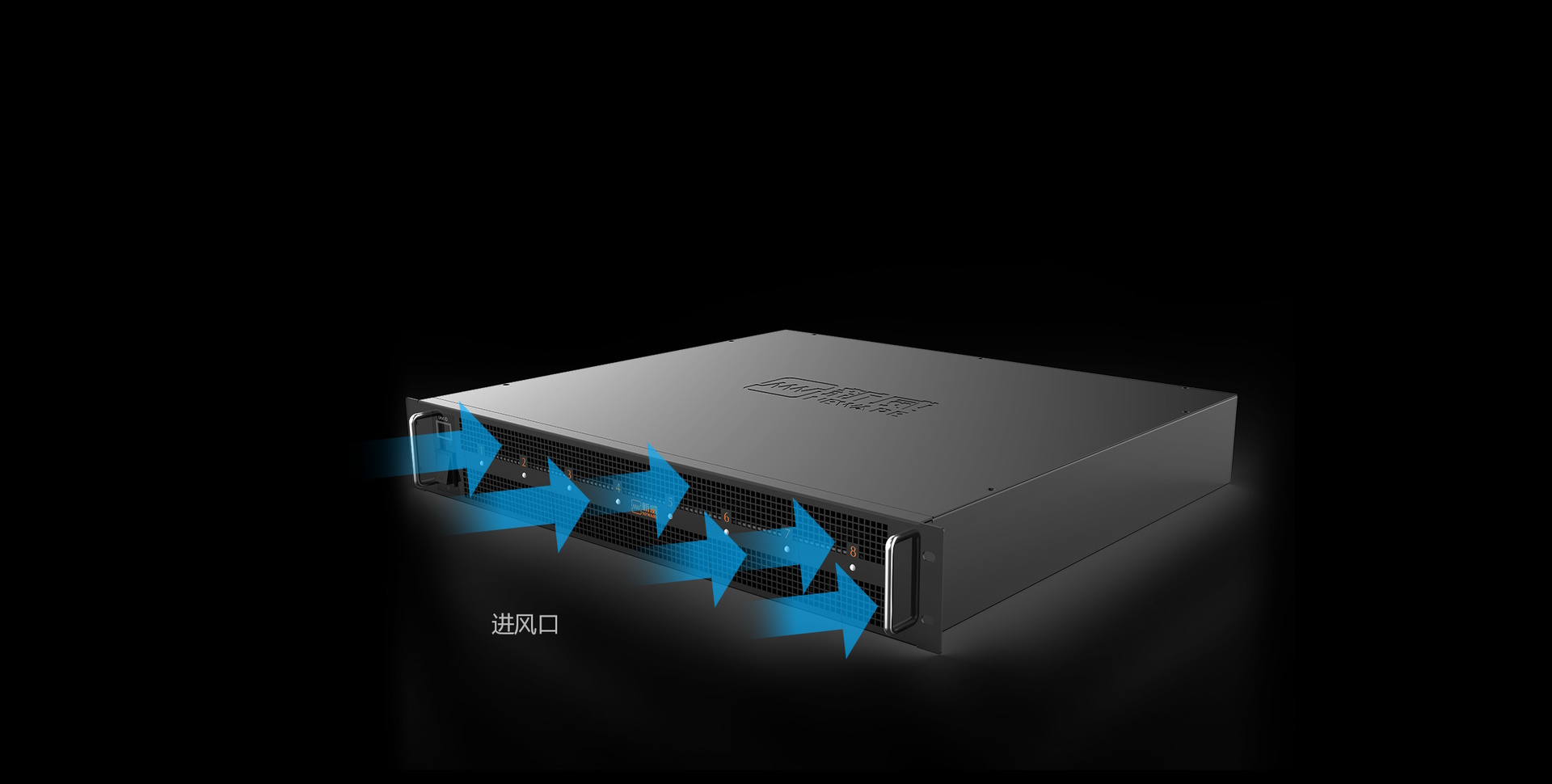

Efficient Cooling System

Front air inlet, back air outlet.

SMBus Communication

This is a kind of test equipments designed for intelligent battery pack. It not only owns the normal battery test function, but also can communicate with the control circuit in the smart battery via SMBus communication protocol. Via SMBus communication, it can obtain the battery data in the smart battery, including the production, manufacturing information and the realtime sampling data. What's more, it can also transmit them to the upper computer for monitoring, recording and generating data report.


Fully charged and discharged battery pack, and accurately measured the actual capacity data of the battery.

Communicate with battery pack through SMBus protocol, read SMBus data, analyze data, and screen problem products.

Cycle life test for battery pack, intelligent battery data learning, quality control.

Independent programming control for each channel, support: CVC, CCC, CCD, CRD, CPD, etc.

Variety of protection condition control and real-time status monitoring functions, including over-voltage, over-flow and heat protection measures.

Communicate with battery pack through SMBus protocol, read SMBus data, analyze data, and screen problem products.

Anti reverse connection design to ensure the safety of human and machine in the testing operation

Master battery pack status in real time through SMBus data.
