Super-capacitor Tester

Super-capacitor Tester

CT-4008Tn-5V10mA
Super-capacitor Tester

CT-4008-5V10mA Super-capacitor Test System, characterized with 0.05% FS accuracy and down to μA capability, enables users to perform DCIR tests, dQ/dV and other basic tests on three-electrode system. It mainly focuses on battery research & development institutions and universities.

Product Description

Super-capacitor Test System | Material Research
Super-capacitor Tester
CT-4008-5V10mA/6A/12A
CT-4008-5V10mA Super-capacitor Test System, characterized with 0.05% FS
accuracy and down to μA capability, enables users to perform DCIR tests,
dQ/dV and other basic tests on three-electrode system. It mainly focuses
on battery research & development institutions and universities.
Learn more about 5V12A Super-capacitor Test

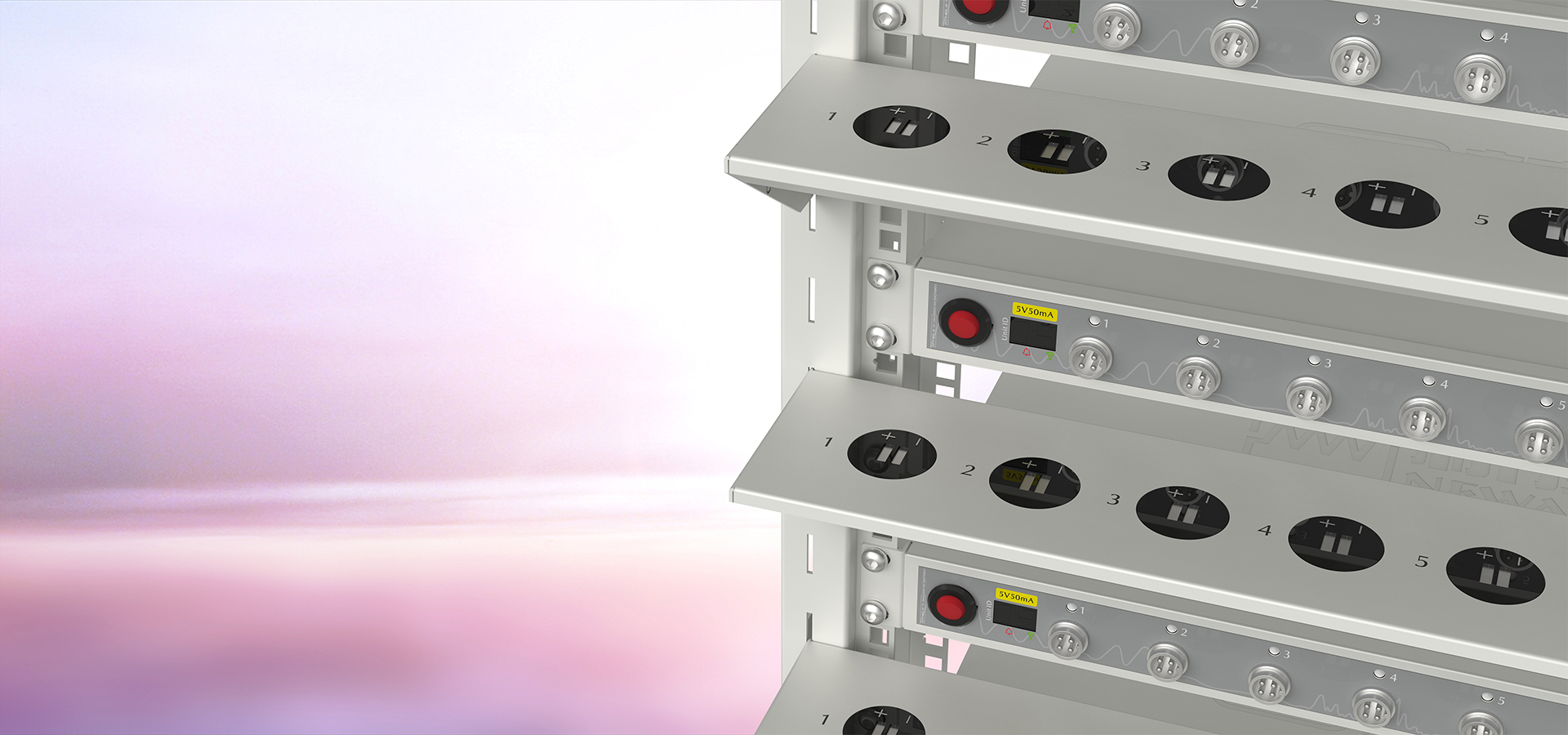

"Super" function on the tray BTS 4000
It's so easy to test the battery capacitance equipping with the purpose-made tray.

0.05%FS Accuracy, μA Current Unit
3 Range, Stable Performance

Learn more about specs
10Hz/ 100Hz
Data
Acquisition
Frequency


500ms
Min. Pulse
Width


Three-Electrode
System
Test


Charge &
Discharge
Rate


μA
Current Unit

dQ/dV
Curve


DCIR



0.05%FS
Accuracy


3 Range



≤500μ/1ms
Response Time

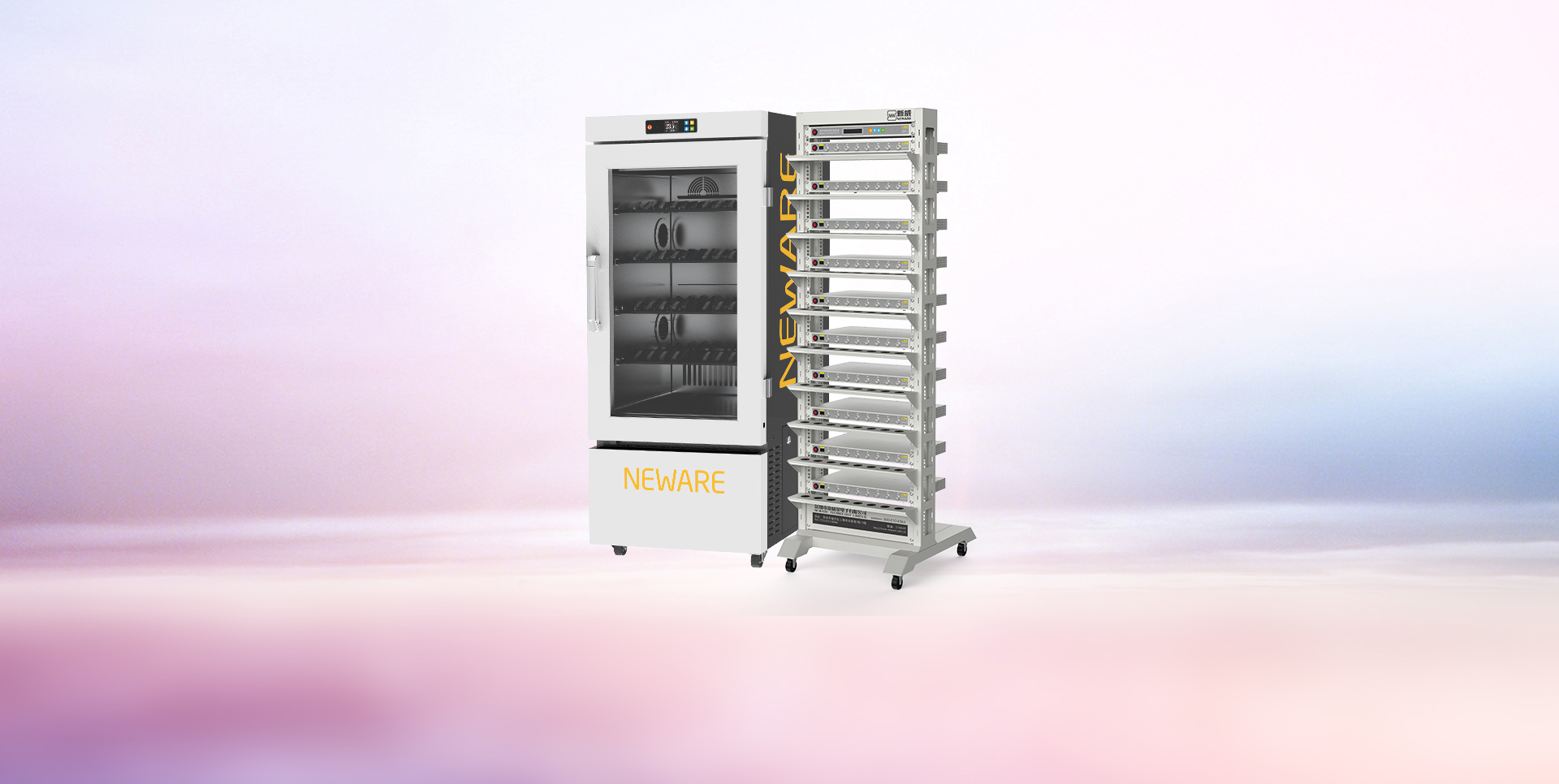

BTS upper computer integrated temperature test chamber control
NEWARE supercapacitor test system realizes integrated operation and collaborative work through BTS upper computer control system, so as to maximize the supercapacitor characteristics and functions.
Fission temperature control system
It can be perfectly combined with Neware test chambers to jointly complete various types of super capacitor tests.
Software
Essential components
Download Neware BTS Software
dQ/dV
dQ/dV differential capacity curve: the peak on the curve indicates that there is a voltage plateau on the charge and discharge curve, and different peaks represent different electrochemical reactions.
Conditions Switches
Battery testing steps need to be estimated for several conditions according to different operations during testing applications; Conditions switches meet requirements for multi-exits programming types. “And””or” logic operation, “≥”, ”≤”, ”=” comparatively calculate; Time duration ”t”, can achieve control requirements for special testing. Every step supports 5 condition switches; Support multi-exits, go to any steps, achieve more flexible process control.
Segment-Record Conditions
Data record settings for voltage, current and time are supported; 3 segment-record conditions can be set for each step; Every segment can be set: ΔT, ΔV and ΔI .
Control peripheral equipment by communication
BTS Server come true the peripheral equipment (Battery tester & Automation) communication control via switch.

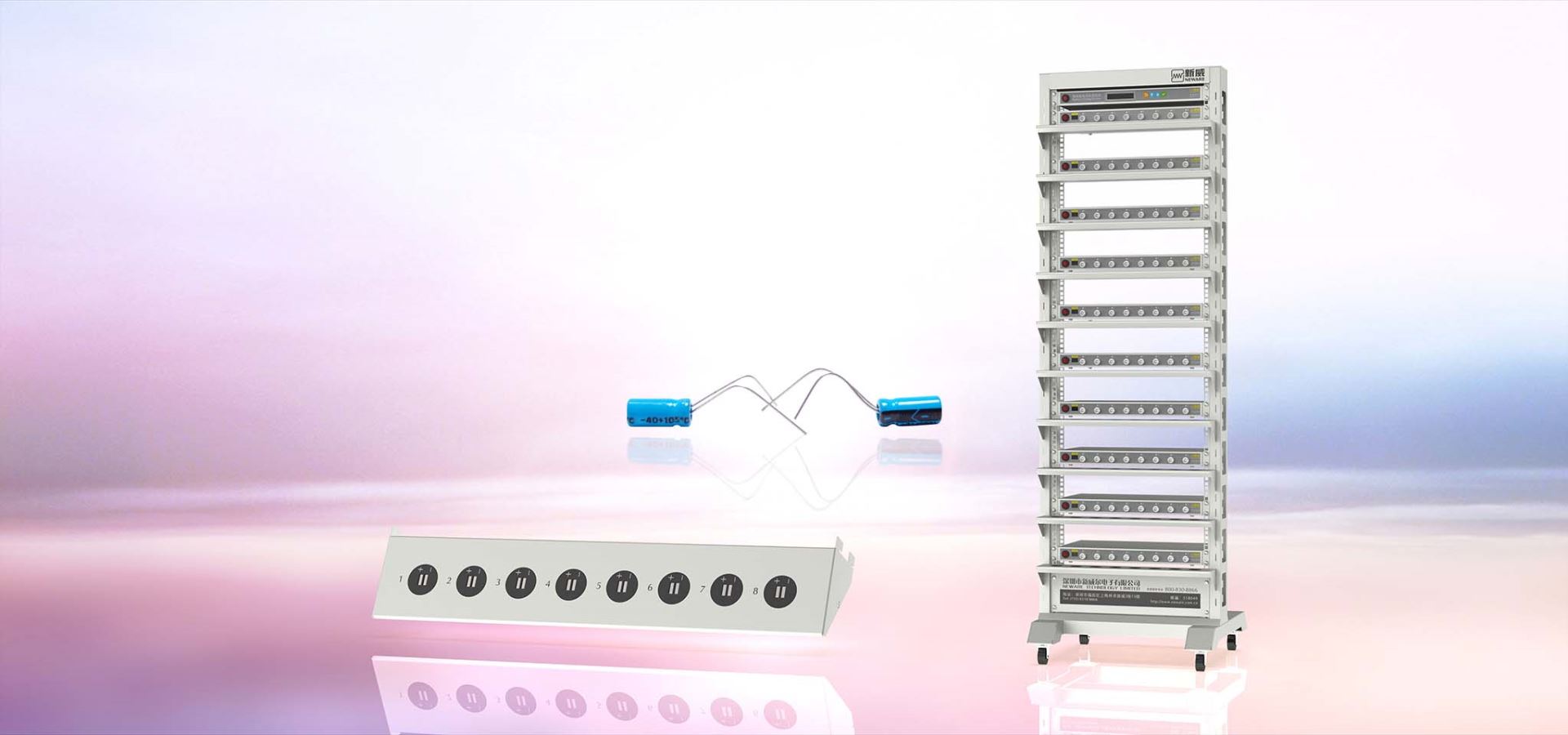

Super-capacitor testing
The unit of Q is Coulomb, 1 Coulomb = 1A * 1s = 1As; 1Ah = 3600 As(Amp Second); Work voltage U = Charge upper limited voltage - Discharge bottom limited voltage; Working voltage can be set and the EDLC coulomb could be calculated automatically by the software.

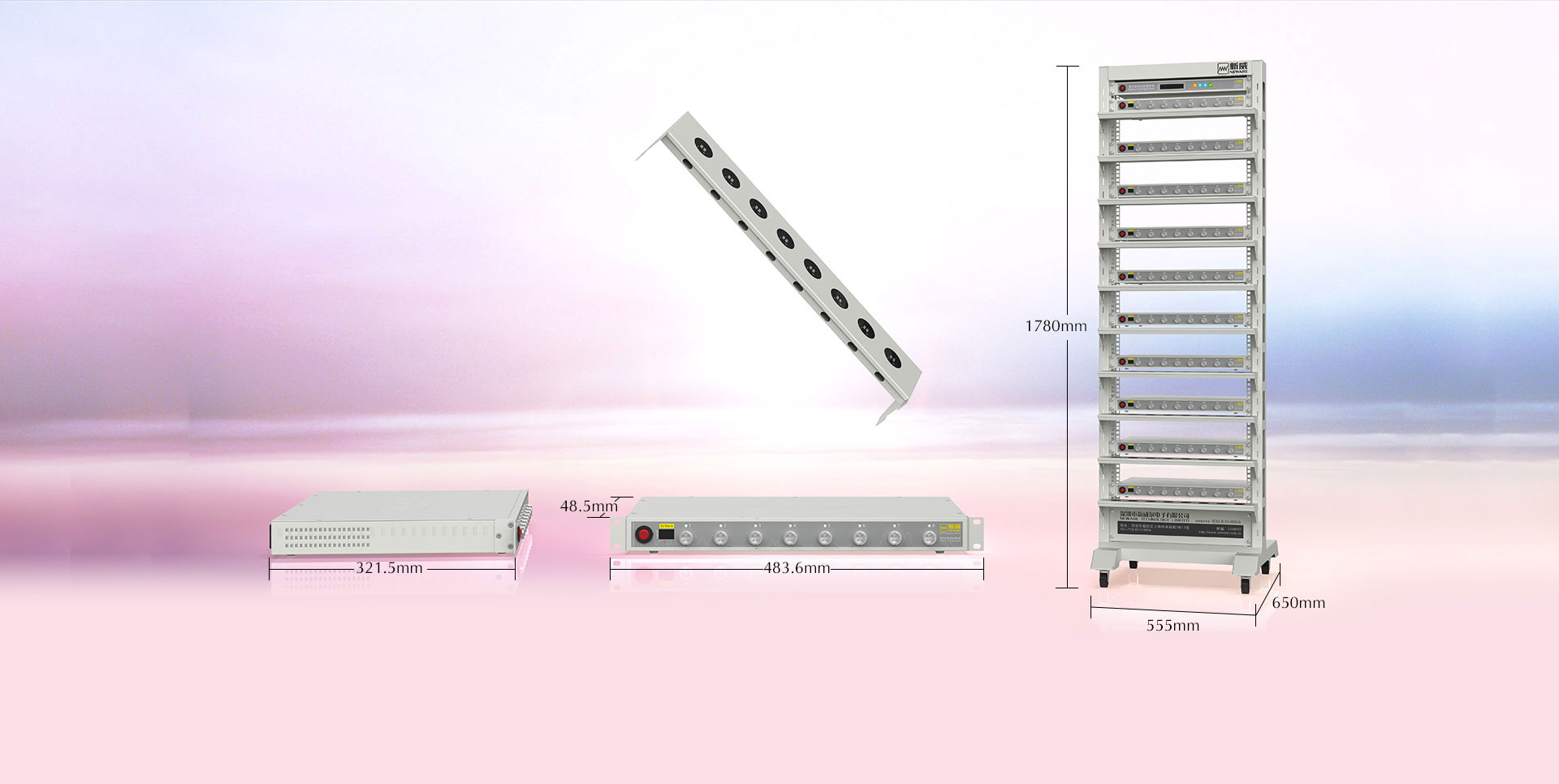

Size & Weight

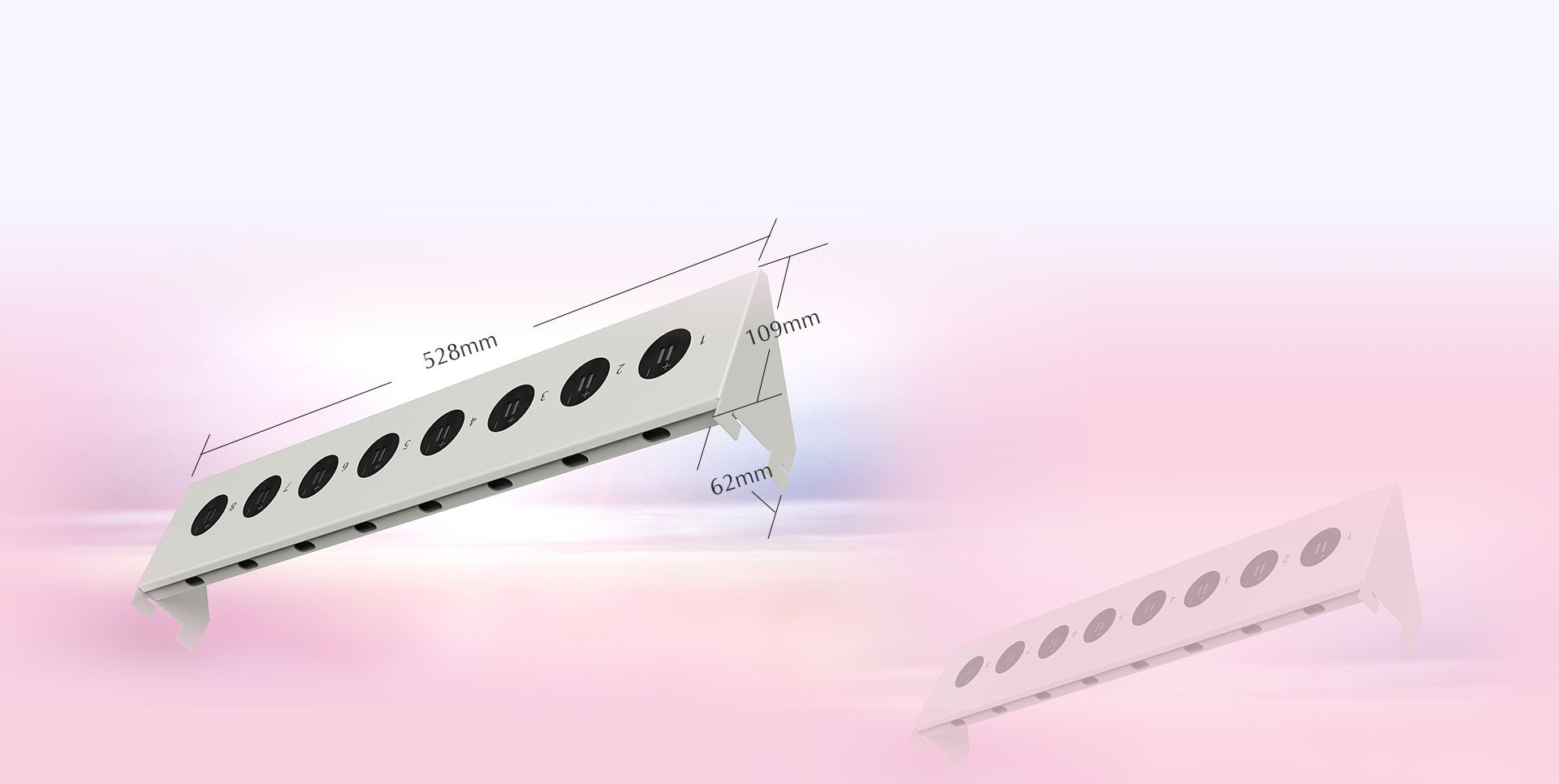

Purpose-made tray for 5v10mA super capacitor test
Small but powerful.
Net weight of middle machine:2.5kg; Net weight of single equipment: About 5kg

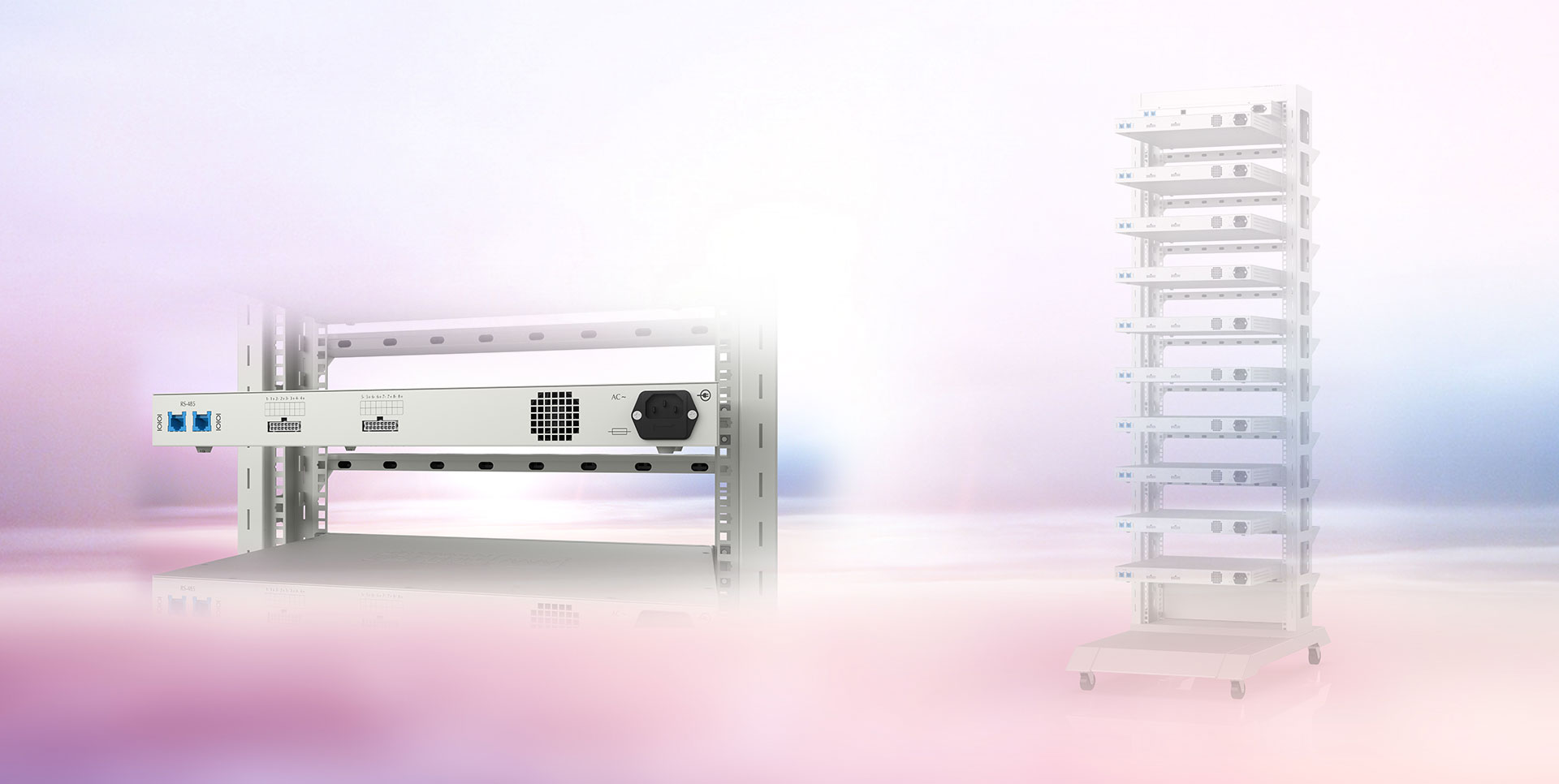

The Mode Of Networking
Accessories
Promoting creativity
More about CT-4008-5V10mA capacity tester……
Learn more about specification.
