Programmable DC Power Supply

AN51(F)

Product Model:
AN51(F) Series
Application:
Used for manufacturing, testing and maintenance of electronic equipment such as motors, power tools, automotive electronics, chips and electronic components, switching coils and DC switches, aircraft and airborne equipment, radar, navigation, etc., as well

Product Description

The AN51(F) series programmable DC power supply adopts high-frequency PWM control and phase-shifted full-bridge conversion, fast dynamic response, strong over-current capability, low output ripple, featuring compact, light, quiet, high efficiency, simple operation and cost-effective. It can be used for manufacturing, testing and maintenance of electronic equipment such as motors, power tools, automotive electronics, chips and electronic components, switching coils and DC switches, aircraft and airborne equipment, radar, navigation, etc., as well as industrial and mining enterprises, colleges and universities laboratories, research institute, etc.

Product Features

Colorful LCD display, digital keys, convenient and easy for operation.
350mm deep full range of standard chassis, suitable for system integration and portable applications.
High frequency PWM and full-bridge conversion technology, with high efficiency.
Strong current/power overload capacity, up to 110%.
Exceptional output stability./li>
Voltage drop compensation terminal for large current output.
Complete protection to ensure normal operation of power supply unit and load security.
Parallel output, convenient expansion.

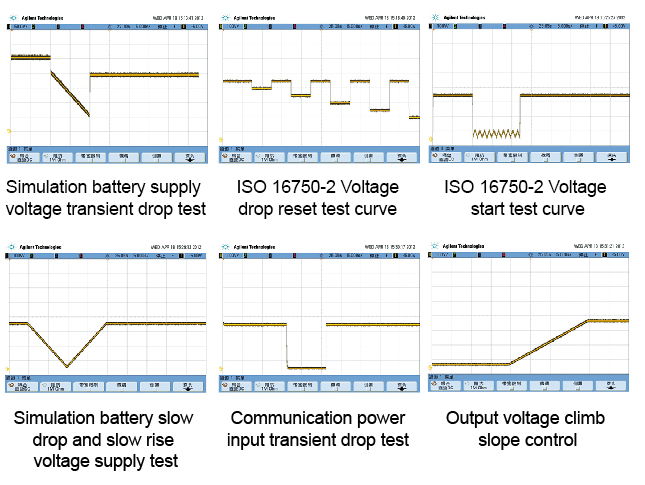

Powerful programming features to customize the output waveform.
