Comprehensive Coil/Stator Test Scheme

Comprehensive Coil/Stator Test Scheme

AN8351(F)
  • Product Model:
    AN8351(F) Series
  • Application:
    Used in the testing of coils and stators of electric vehicles, shaded pole motors, universal motors, etc.

Product Description

AN8351(F) comprehensive coil/stator test system is suitable for static testing of various types of coils/stators, widely used in the testing of coils and stators of electric vehicles, shaded pole motors, universal motors, asynchronous motors, tubular motors, linear motors, and automated production lines.

Product Features

  • Efficient: complete performance testing in one connection, automatic storage of test data.
  • Compatible: six-in-one test items such as withstand voltage, insulation, resistance, and turn-to-turn.
  • High performance: voltage regulation, insulation, turn-to-turn and other voltage adjustments using closed-loop voltage feedback adjustment system to accurately control the voltage regulation and rising process, stable voltage output.
  • Module: Module test unit to avoid interference, and customize single/multi-station, serial/parallel test system as required.
  • Intelligent: intelligent self-check, remote diagnosis and online upgrade, quick location of problems and eliminating.
  • Easy maintenance: plug-in design, convenient for disassembly; intelligent self-check, remote diagnosis, online upgrade and other flexible settings, quick location of problems.

Product Application

  • Test items
Stator: withstand voltage, insulation, resistance, interturn, inductance, rotation

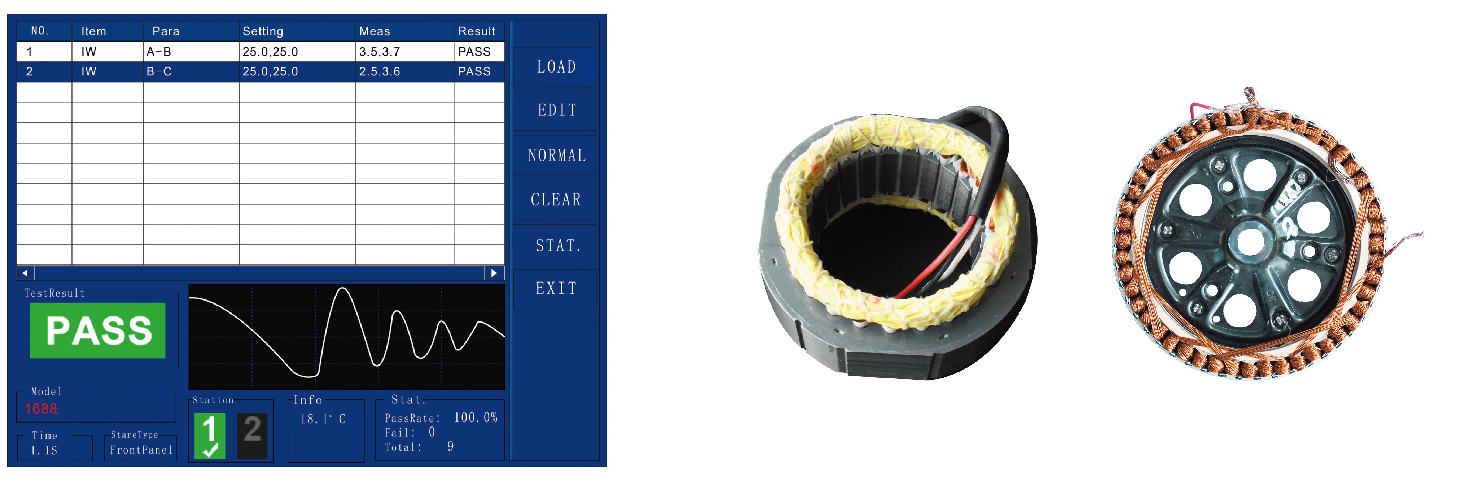

  • Test cases
  Test cases

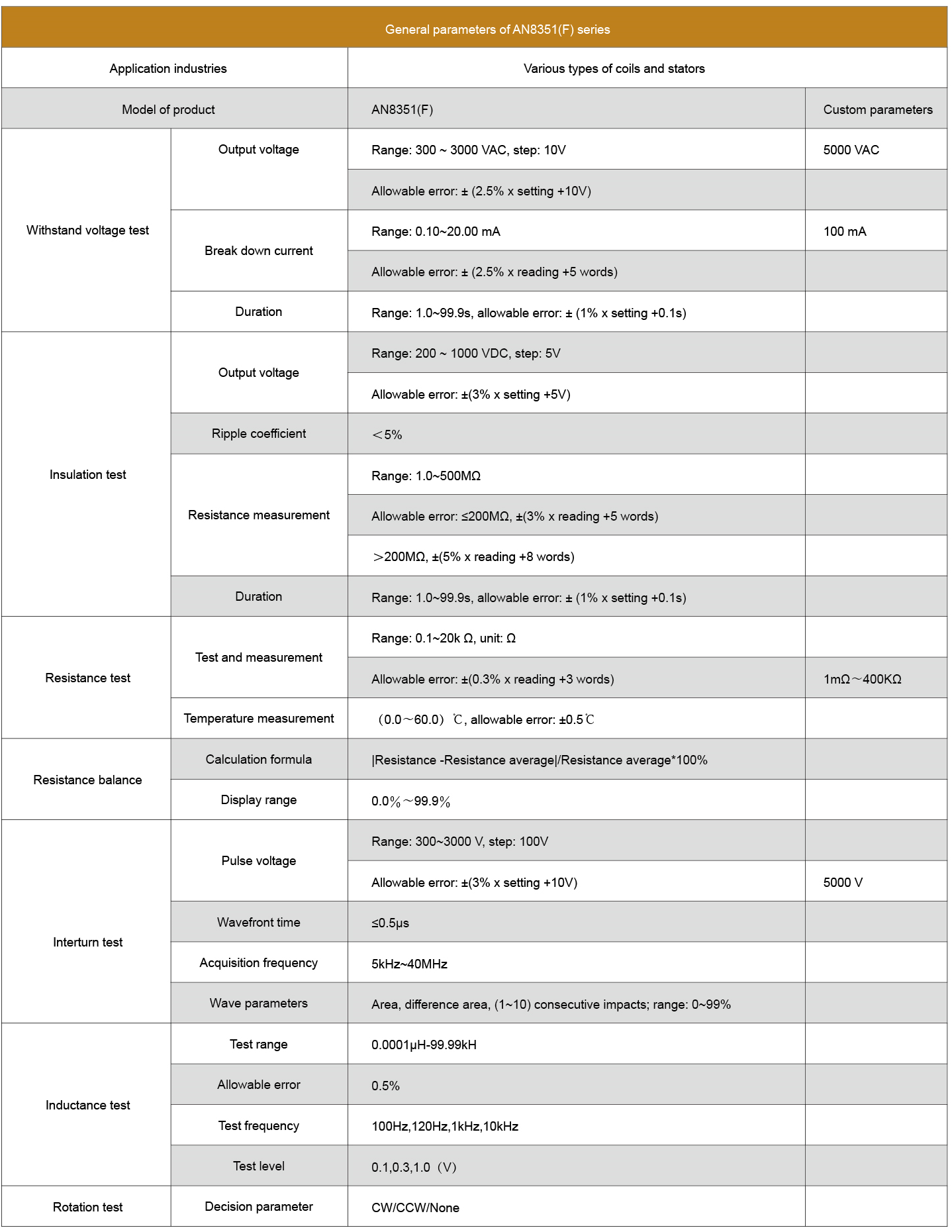

Technical Specifications

Technical Specifications
