AC Power Supply

AC Power Supply

ANFC(F)
  • Product Model:
    ANFC(F) Series
  • Application:
    Home appliances, motors and production lines.

Product Description

The ANFC series AC power supply adopts FPGA digital control, instantaneous waveform control and high-frequency pulse width modulation (SPWM) technologies. It has the advantages of fast response speed, high output accuracy, and superior waveform quality; it can withstand 3 times the rated current impact ,high capacity and strong load adaptability; adopts modular design concept, small volume and weight, convenient operation and high cost performance. Mainly used in applications such as home appliances, motors and production lines, it is one solution that meets the basic needs of traditional industries and a power supply alternative for equipment upgrades.

Product Features

  • Adopt FPGA digital technology, realize accuracy control and high quality sine wave output;
  • Operating in over current shock (up to 3 times of rated current)within 2s, start the impact load of 1/3 capacity of power supply directly;
  • Adjustable voltage and frequency during output status;
  • Three-phase loading separately, start single phase output by U/V/W fast settings;(Only suitable for three-phase output power supply);
  • Measurement: voltage, current, frequency, active power;
  • Online monitoring: monitor IGBT temperature, transformer temperature, fan speed, input voltage and other parameters during output status;
  • Operating data recorders: keep the record of power supply status and alarm code automatically during alarming;
  • Voltage range: 1.0-150.0V or 150.1-300.0 V automatic adjustment, or locked at 1.0-300.0V;
  • Shortcuts groups, power-off memory, shortcuts key and knobs operation;
  • Fan speed will be adjustable automatically with the temperature of power supply to reduce the noise;
  • Lock key, user-friendly design, automatically locking without operation for 5 minutes to prevent from operation mistakes;
  • Standard RS232, optional RS485, GPIB, Ethernet, analog control and other remote communication/control.

Product Application

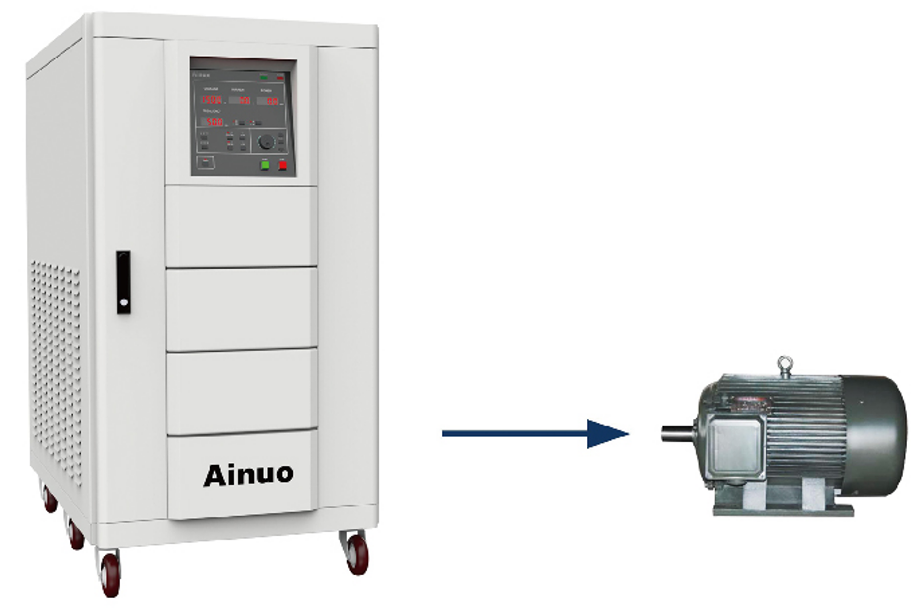

  • Over shock capacity: impact load of 1/3 capacity of power supply directly without soft start.
  Over shock capacity

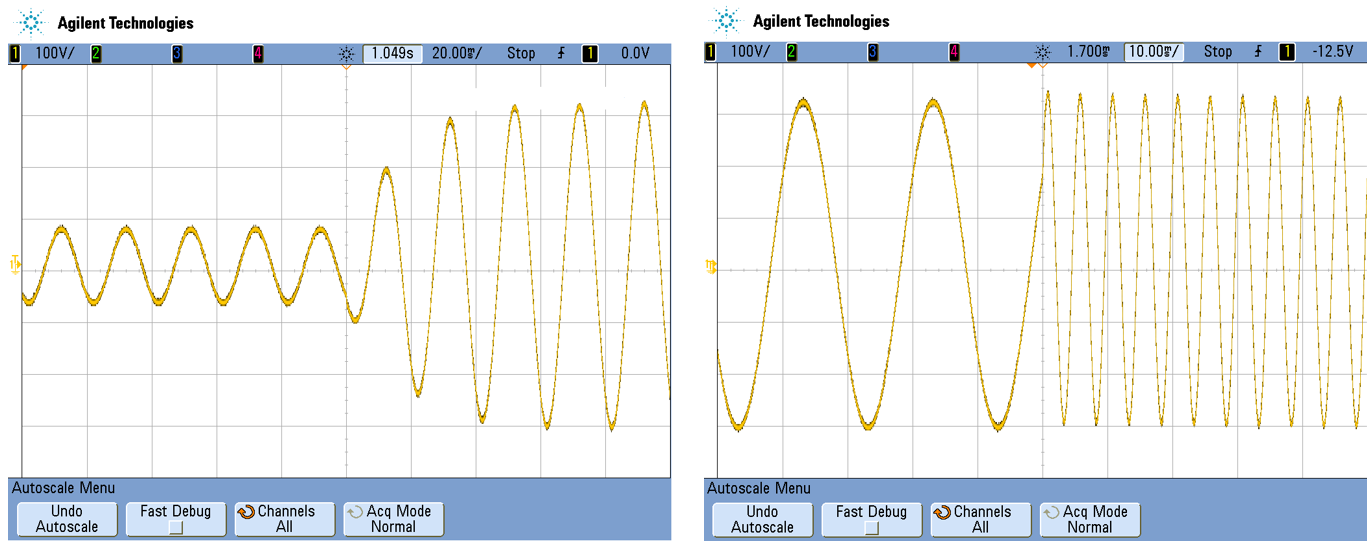

  • Adjustable voltage and frequency during output
  Adjustable voltage and frequency during output

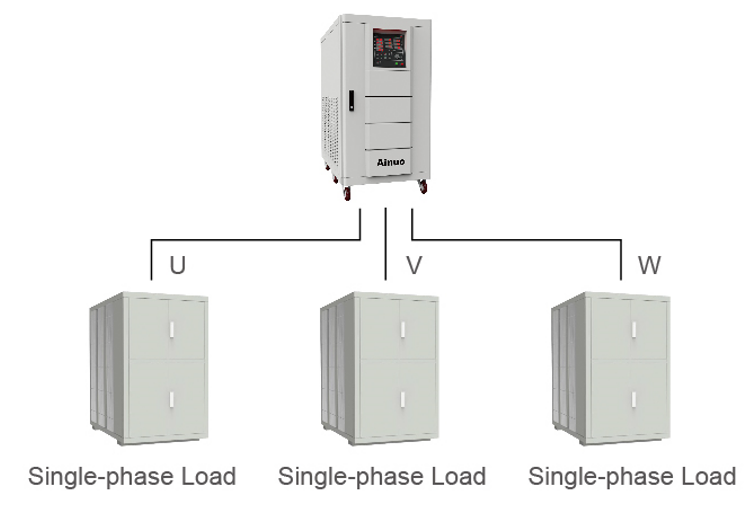

  • Three-phase loading separately(Only suitable for three-phase output power supply)
  Three-phase loading separately

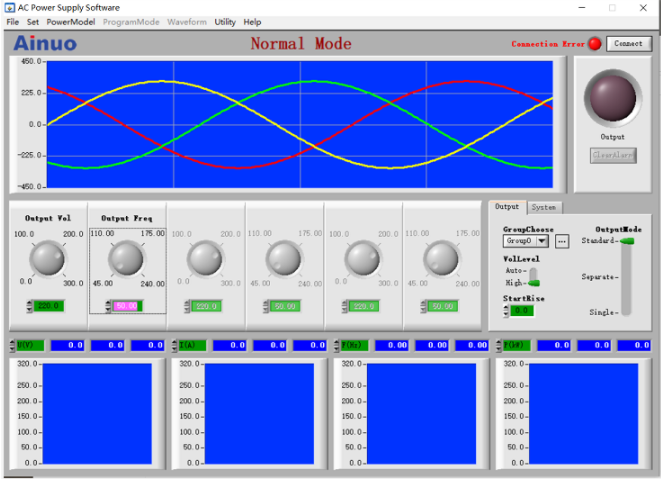

  • PC control software
  PC control software

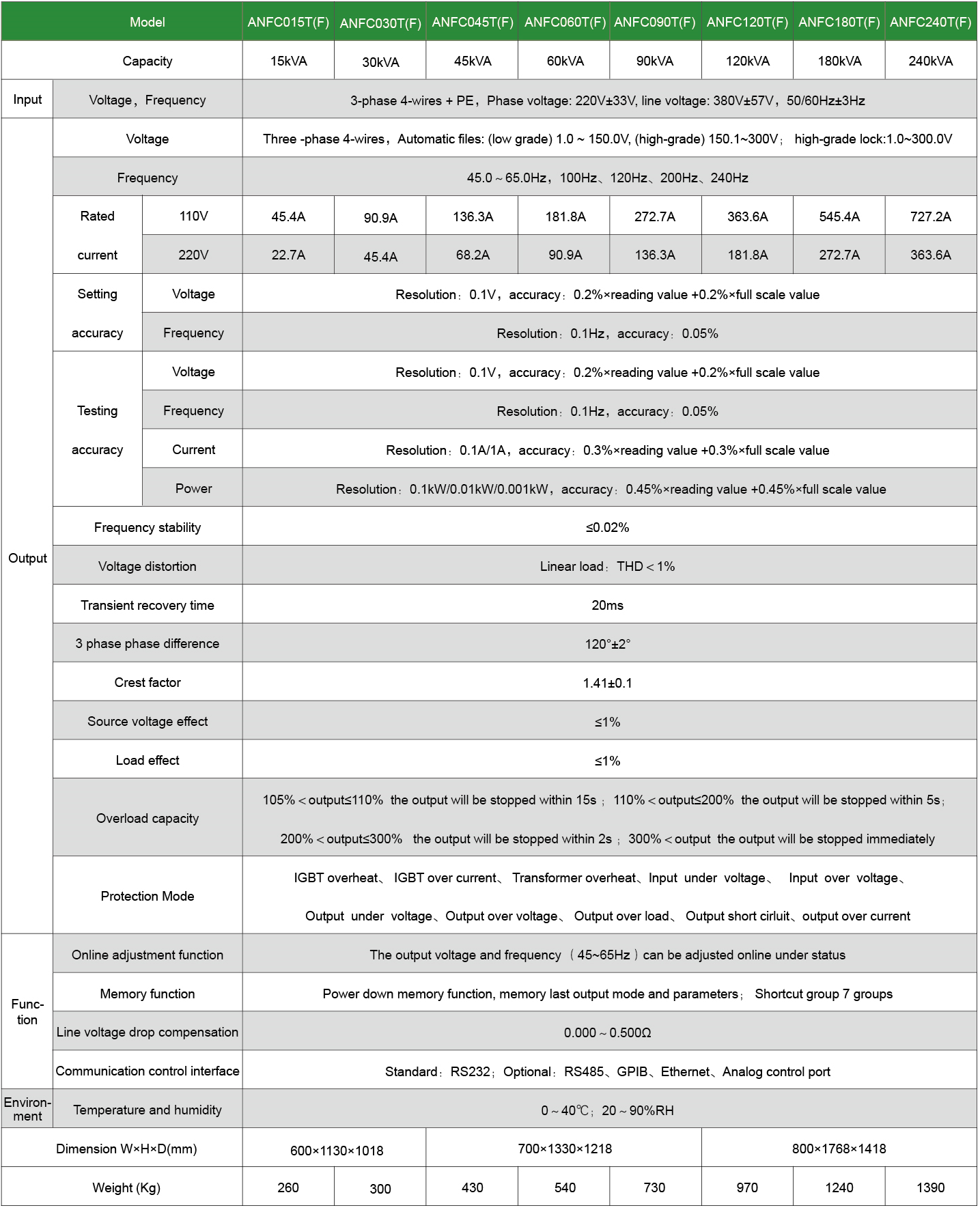

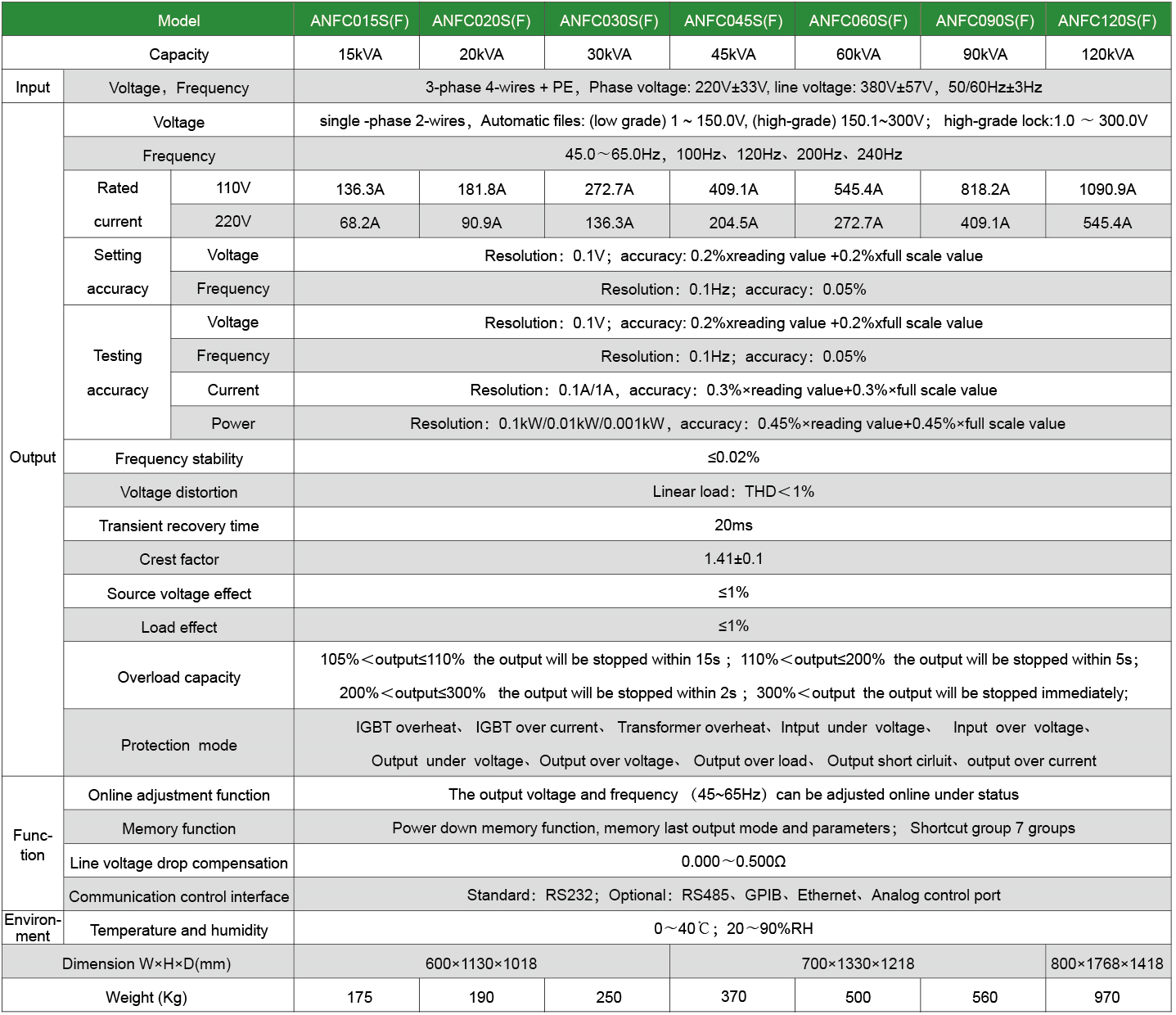

Technical Specifications

Technical Specifications
Technical Specifications
