Single-phase AC/DC Power Analyzer

Single-phase AC/DC Power Analyzer

AN87310(F)
  • Product Model:
    AN87310(F) Series
  • Application:
    Rigorous industrial field type test, high temperature aging chamber test, electric tool test, lighting test, household appliances, commercial appliance production line standby power measurement

Product Description

This AN87310(F) series AC/DC power analyzer adopts STM32 controller as the core and supplemented by FPGA, using direct sampling and intelligent identification technology, widely used in electrical measurements of single-phase electrical equipment, such as voltage, current, power, power factor, frequency, electrical energy, time, harmonics etc., wide range, 4-window LED highlight, simple operation, U disk read/write, serial communication, parameter alarm, voltage/current ratio settings and other functions, multi-purpose, professional and reliable.

Product Features

  • Universal wide-range design for AC/DC, DC~100kHz bandwidth, stronger load adaptability
  • Reliable, stable, compact, light
  • Fast measurement, refresh rate up to 0.1s
  • Standard RS-232 or RS-485 port, support MODBUS communication, automatic testing

Product Application

  • Strict industrial site type test
  • High temperature aging room test
  • Power tool test
  • Lighting test
  • Standby power measurement of household appliances and commercial appliances lines
  • Current: 1mA~22A/5mA~55A, voltage: 0.15~1200V, rated power and standby power can be measured
  • Minimum power resolution: 0.1mW
  • 50th harmonic and distortion analysis

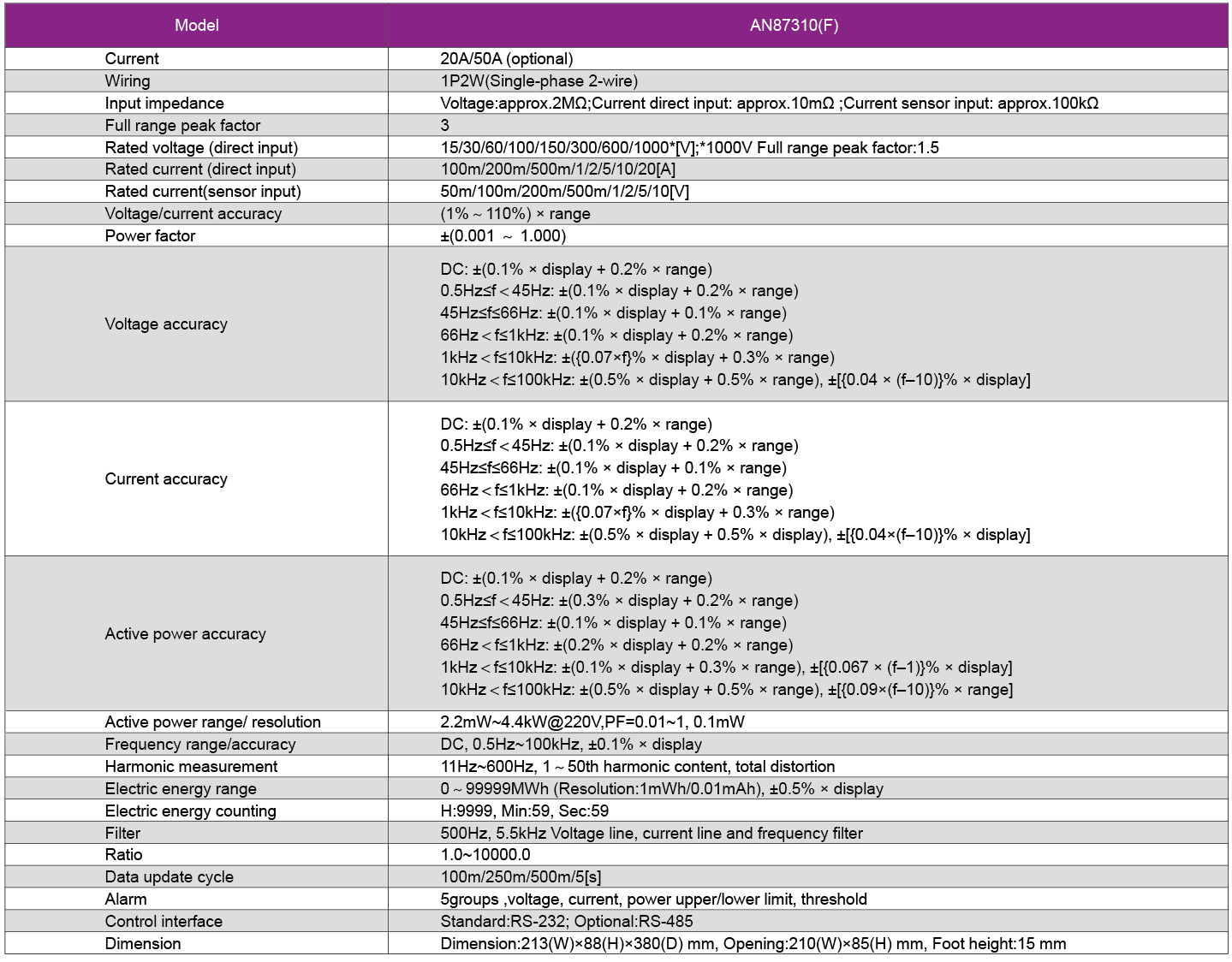

Technical Specifications

Technical Specifications
