Comprehensive High-power Motor Test Scheme

Comprehensive High-power Motor Test Scheme

AN8353(F)
  • Product Model:
    AN8353(F) Series
  • Application:
    Used in industries such as elevator motor, reducer, industrial fan, water pump motor, crane, generator and so on.

Product Description

AN8353S(F)/AN8353M(F) series comprehensive high-power motor test scheme is suitable for the performance test of 3-phase stator/complete machine with power below 500KW, and widely used in industries such as elevator motor, reducer, industrial fan, water pump motor, crane, generator and so on.

Product Features

  • Wide range: test of ultra wide resistance range (1mΩ~400KΩ).
  • High level: 500KW motor turn-to-turn vibration, improving the detection rate of winding damage.
  • Efficient: complete testing after connection at one time, high efficiency of large motor test.
  • One-stop: self-developed AC/DC power supply, convenient and unified before/after sale.
  • Module: Module test unit to avoid interference, and customize single/multi-station, serial/parallel test system as required.
  • Multi ports: USB, RS232, LAN and other ports, PLC simulation, TCP/IP network protocol, etc., to facilitate data interaction and instrument control.

Product Application

  • Test items
Stator: withstand voltage, insulation, resistance, resistance balance, interturn
Motor: withstand voltage, insulation, resistance, interturn, no-load, locked-rotor

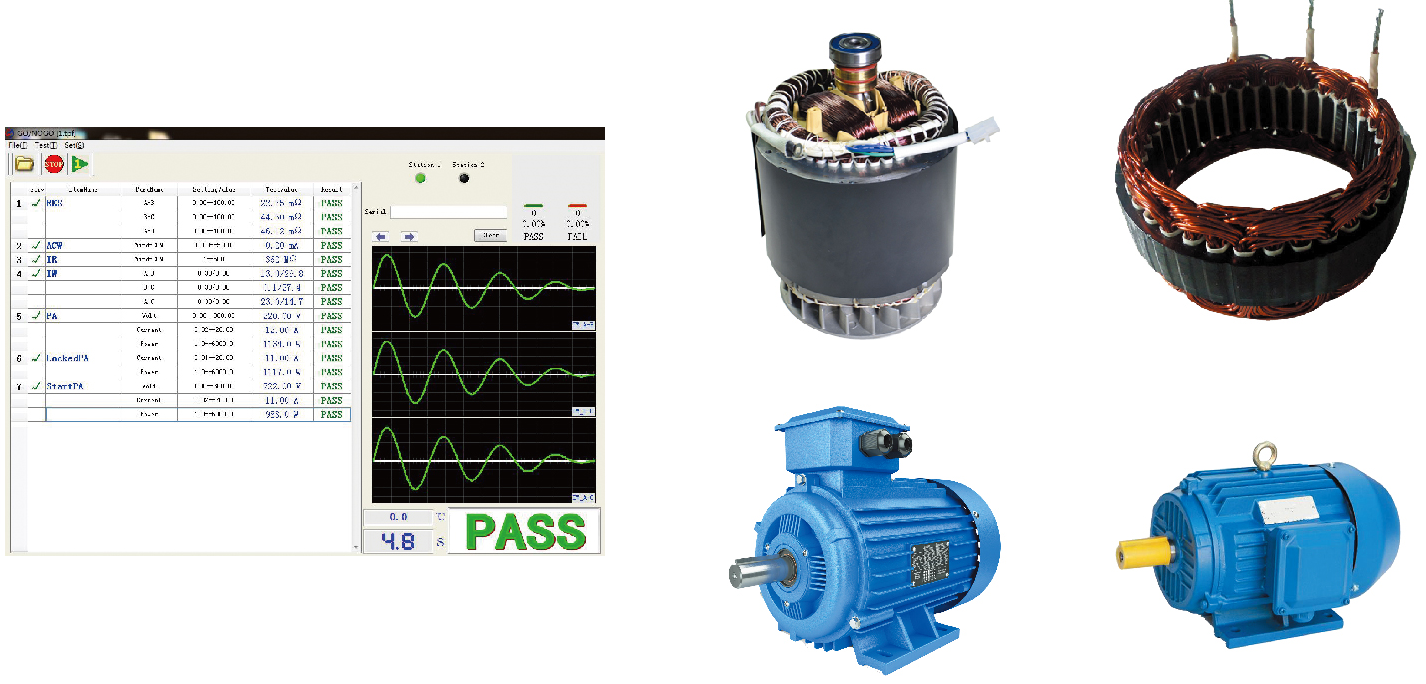

  • Test cases
  Test cases

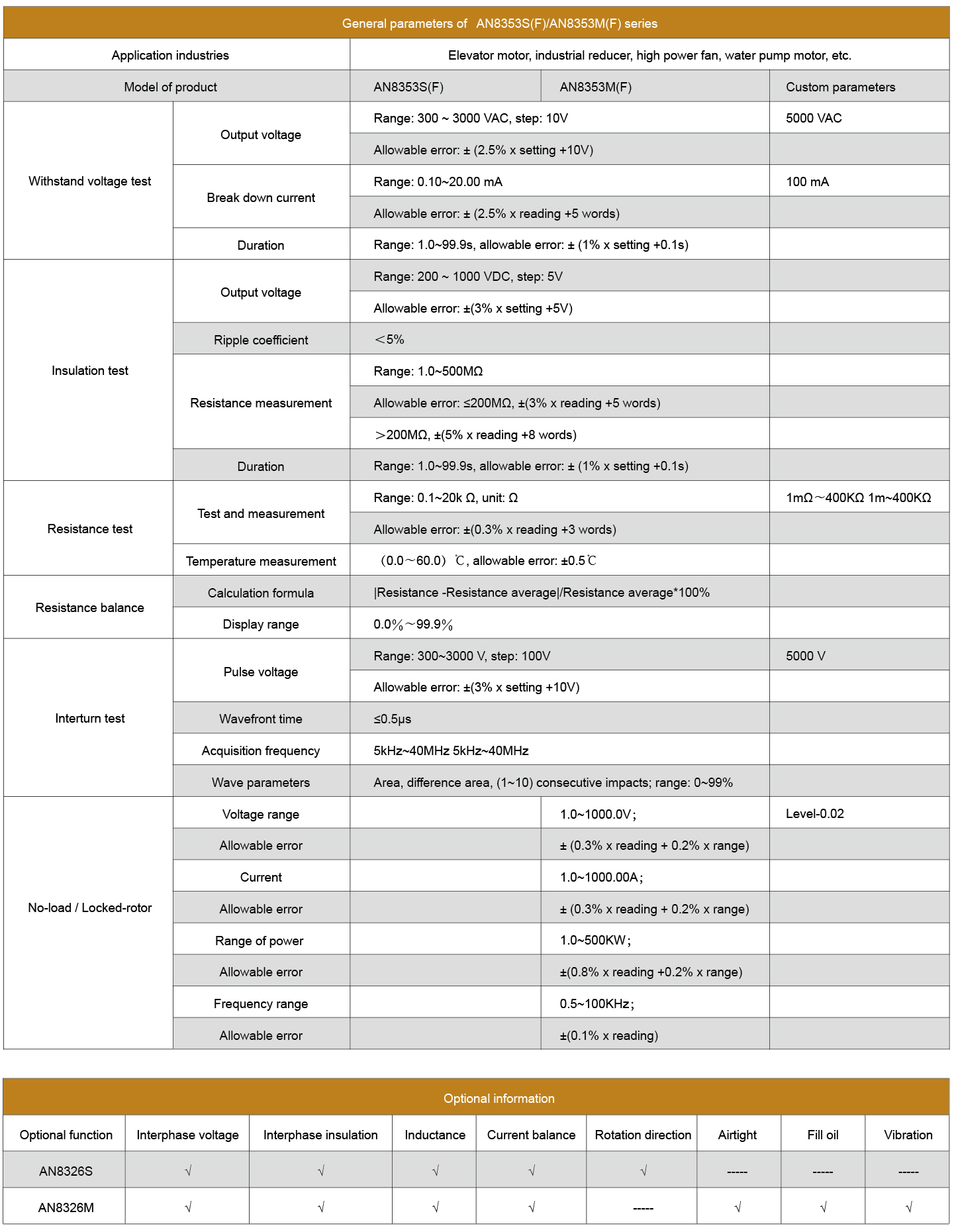

Technical Specifications

Technical Specifications
