Wide Range Programmable DC Power Supply

AN53(F)

Product Model:
AN53(F) Series
Application:
Used for manufacturing, testing and maintenance of electronic equipment such as aircraft and airborne equipment, radar and navigation etc, as well as industrial and mining enterprises, college laboratories, institutes and so on.

Product Description

The AN53(F) series DC power supply adopts active power factor correction technology, high frequency LLC multi-resonant soft switching inverter technology, to achieve high power factor, fast dynamic response, low output ripple, high power density, and Constant Power (CP) wide range output. It has small size, light weight, low noise, high efficiency and easy operation etc. It can be used for manufacturing, testing and maintenance of electronic equipment such as aircraft and airborne equipment, radar and navigation etc, as well as industrial and mining enterprises, college laboratories, institutes and so on.

Product Features

Wide range output up to 3 times of "matrix" power supply of same power.
Active Power Factor Correction, full load power factor of more than 0.99.
High frequency LLC multi-resonant inverter with efficiency up to 0.93.

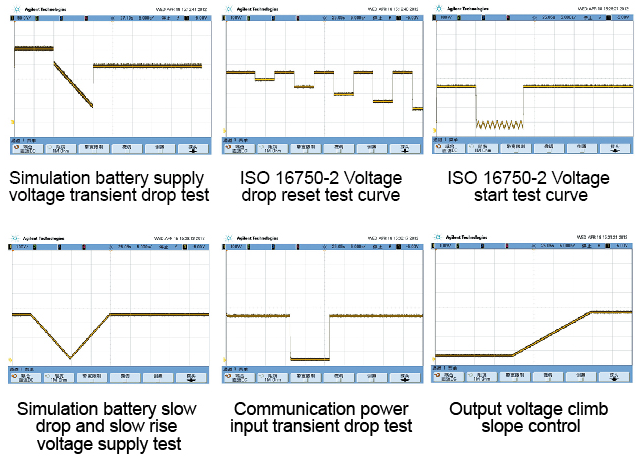

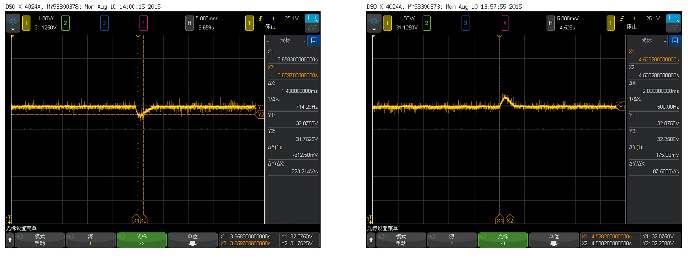

Industrial best transient response speed.

Constant Voltage (CV), Constant Current (CC) and Constant Power (CP) output for multi applications.
Powerful programmable function, flexible settings.

Built-in precise voltage/current measurement, stable output.
Lead drop compensation terminal for output lead at large current.
Complete protection for normal operation of power supply unit and load security.
High brightness color LCD display, beautiful, simple, intuitive.

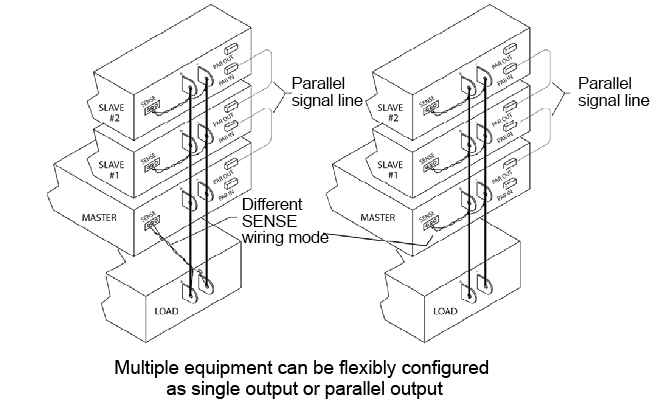

Supports parallel output, expanding power/current range.

Standard host software.

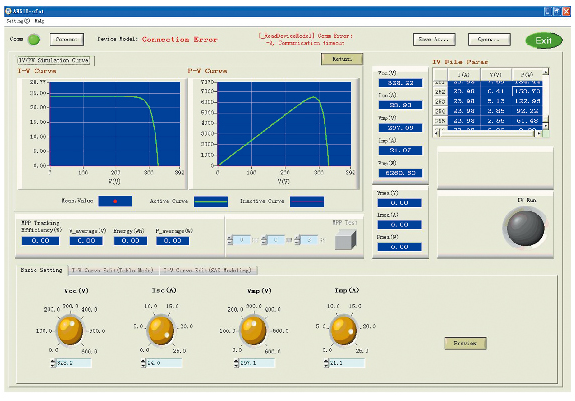

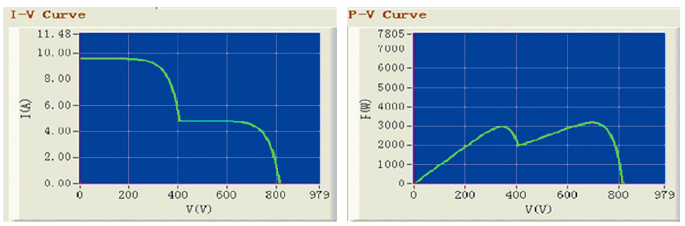

Solar cell I-V curve simulation

Simulate a variety of solar cell output characteristics (Fill Factor)
Test the maximum power point tracking (MPPT) capability and efficiency;
Accurate voltage and current measurement.
Serial output can be set to test the PV inverter operating voltage range.
Standard RS232 interface;
Standard graphical PC operating software. Single operation available.
Simulate I-V curve under different temperature and illumination conditions.

Product Application

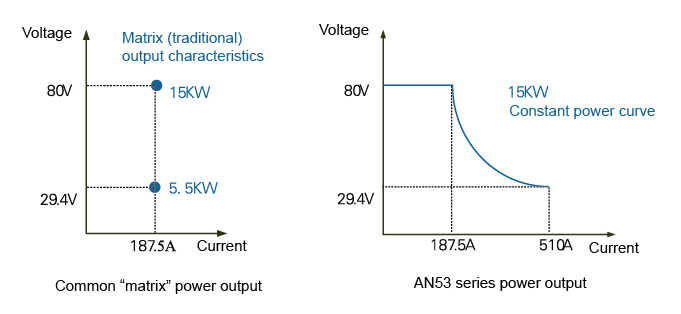

The power output curve of AN53(F) series is extended to provide users with a wider range of voltage/current, more flexible than traditional "matrix" output range. The output range of single Constant Power (CP) DC power is times of common matrix power. For example, 80V/510A/15kW models of the AN53(F) series can provide 80V/187.5A output at 15kW power, or 29V/510A output at 15kW. For traditional "matrix" output power, the technical index will be 80V/187.5A/15kW. When the output voltage is 29.4V, the maximum current is still 187.5A, and the power is only 5.5kW.
