Programmable Bidirectional DC Power Supply

Programmable Bidirectional DC Power Supply

ANEVH(F)
  • Product Model:
    ANEVH(F) Series
  • Application:
    Suitable for testing applications in laboratory, automotive electronics, new energy three power, micro-grid, high-power test and other applications.

Product Description

The ANEVH(F) series is a programmable DC power supply that integrates DC power supply and feedback load, which can be used as a “source” and output power; or used as load to realize sink function, absorbing power and returning to the grid cleanly; standard dual-quadrant operation.

The ANEVH(F) series programmable bidirectional DC test power supply covers 7 voltage levels, covering 0V-2250V, supporting multiple parallel machines, and the power can be expanded up to 1MW; bidirectional energy flow, automatic seamless switching, high power density, fast dynamic response, built-in function generator and standard test curve to generate a variety of waves, excellent characteristics and rich test functions, suitable for testing applications in laboratory, automotive electronics, new energy three power, micro-grid, high-power test and other applications.

Product Features

  • Integrating source and load functions into one, full series 3U standard chassis.
  • High-frequency PWM rectification and bidirectional DCDC technology, completely eliminate the noise of conventional high-power bidirectional power supply, quiet power supply.
  • Higher power density, compact, high speed.

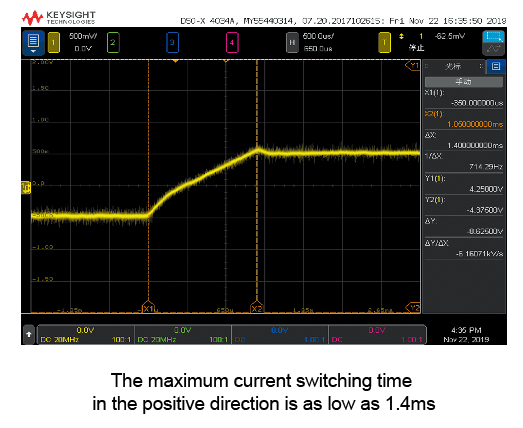

  • Energy flow in both directions, automatically and seamlessly forward/reverse switching.
  • Feedback efficiency up to 95%, energy saving, environment protection.
Features
  • Voltage: 7 levels, covering 0-2250V, industrial highest voltage level, unique high-voltage series technology.
  • Built-in function generator, support arbitrary wave generation.
  • Built-in voltage curves for DIN40839, ISO-16750-2 and ISO21848 standard automotive grids
  • Simulate a variety of solar cell output characteristics (Fill Factor)
  • Test the maximum power point tracking (MPPT) capability and efficiency;
  • Accurate voltage and current measurement.
  • Serial output can be set to test the PV inverter operating voltage range.
  • Comprehensive OTP, OVP, OCP, OPP protection.
  • S terminal compensation

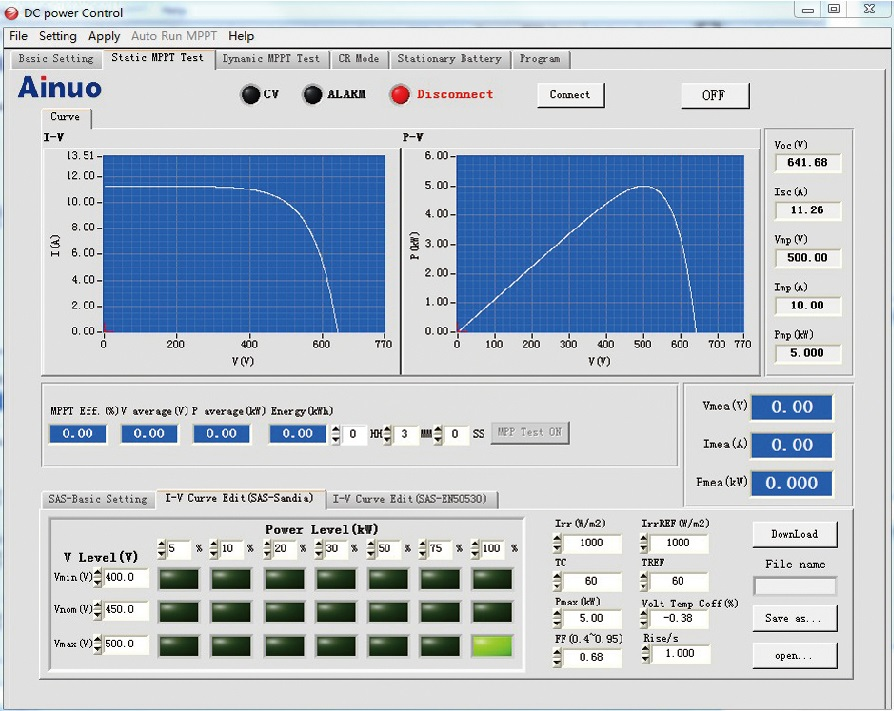

  • Solar cell I-V curve simulation
  • Standard RS232 interface;
  • Standard graphical PC operating software. Single operation available.
  • Simulate I-V curve under different temperature and illumination conditions.
Features

Product Application

  • Micro-grid and micro-inverter testing
  • Automotive motor, controller and power battery testing
  • Fuel cell test, fuel cell DCDC test
  • UPS, on-board charger (OBC), charging spot, bidirectional DC-DC test
  • Industrial testing for electrolysis, electroplating, welding, etc.
  • Testing of communication power supply, LED product
  • Testing of automotive electronics, avionics
  • High power test, DC feedback load demand application

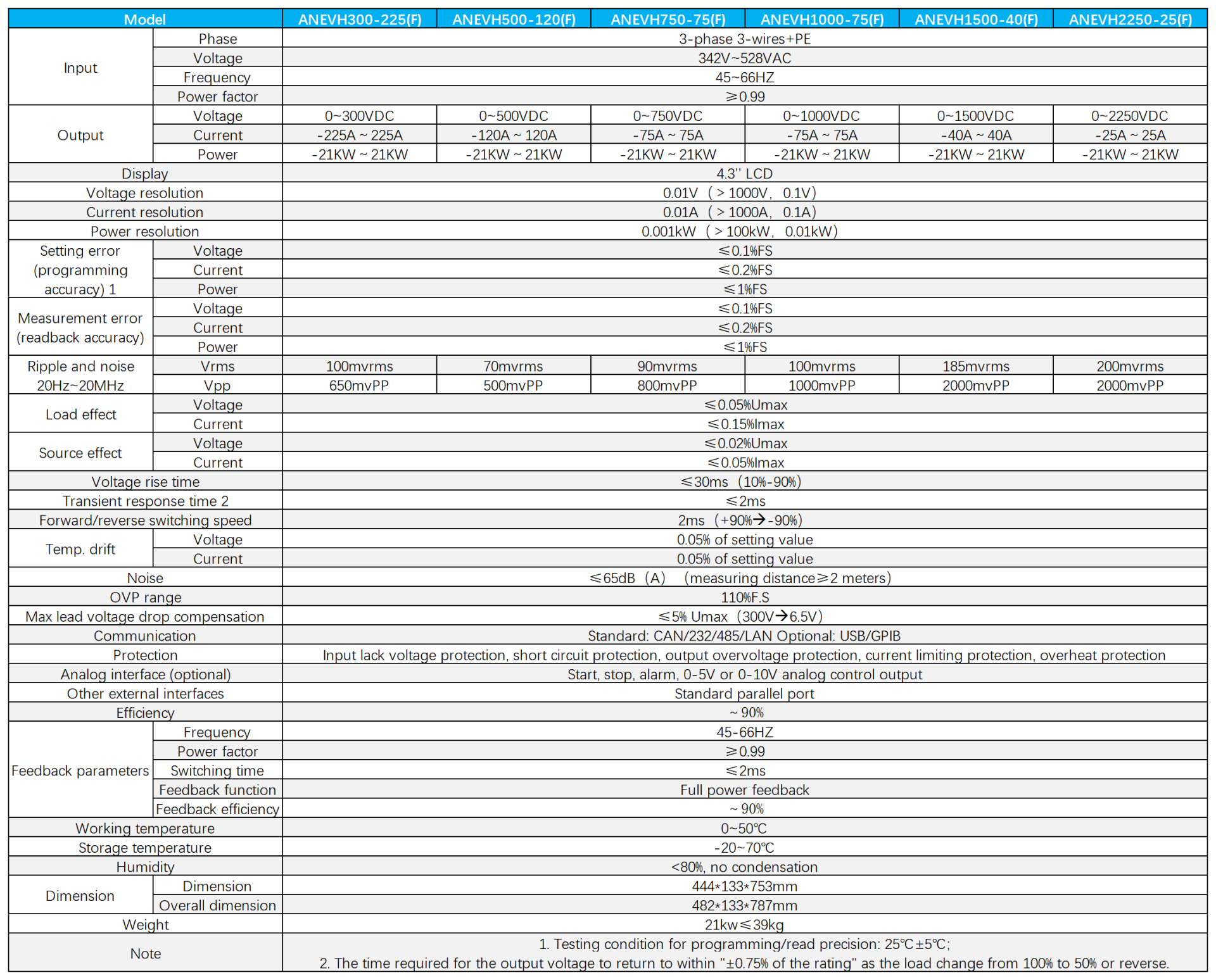

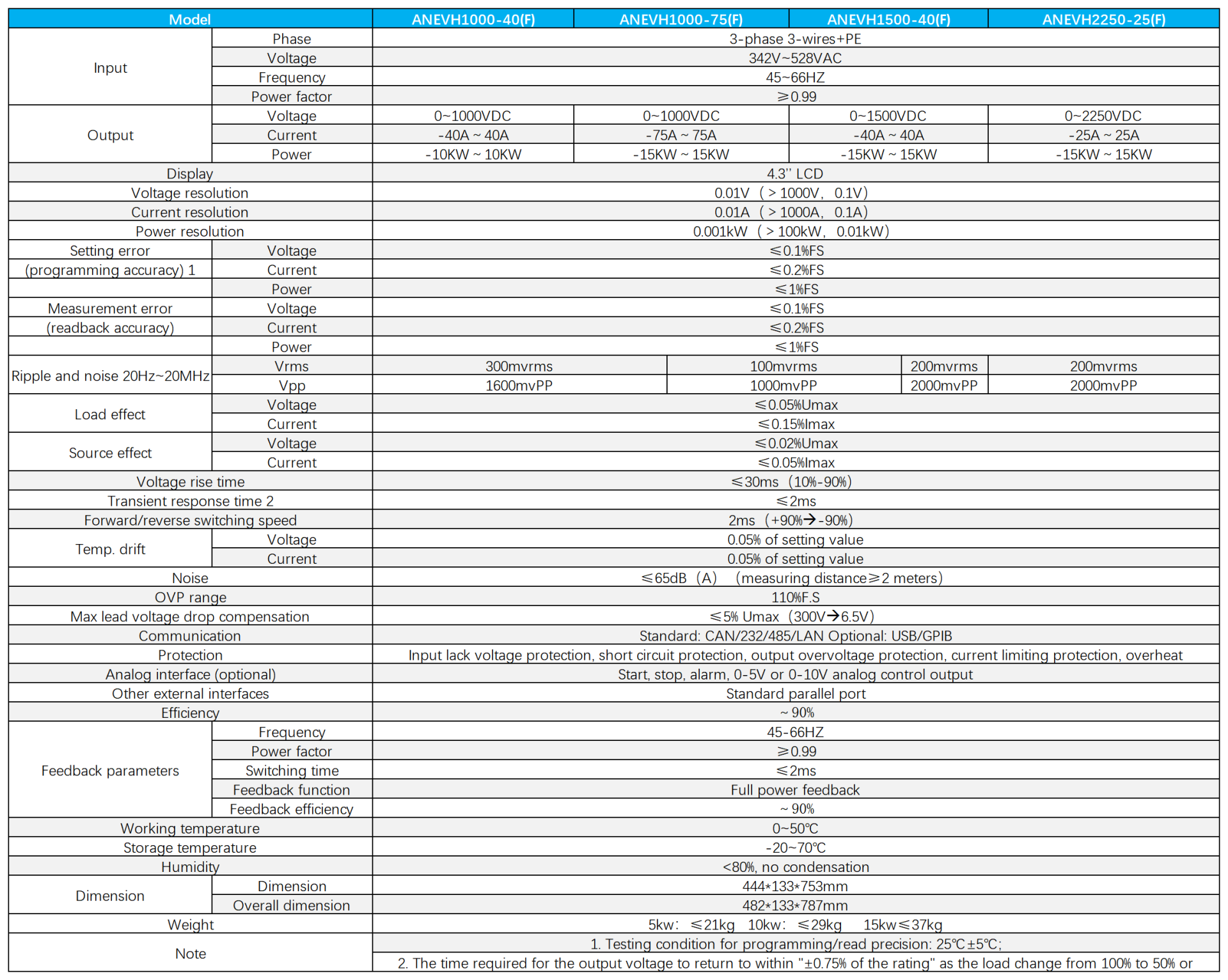

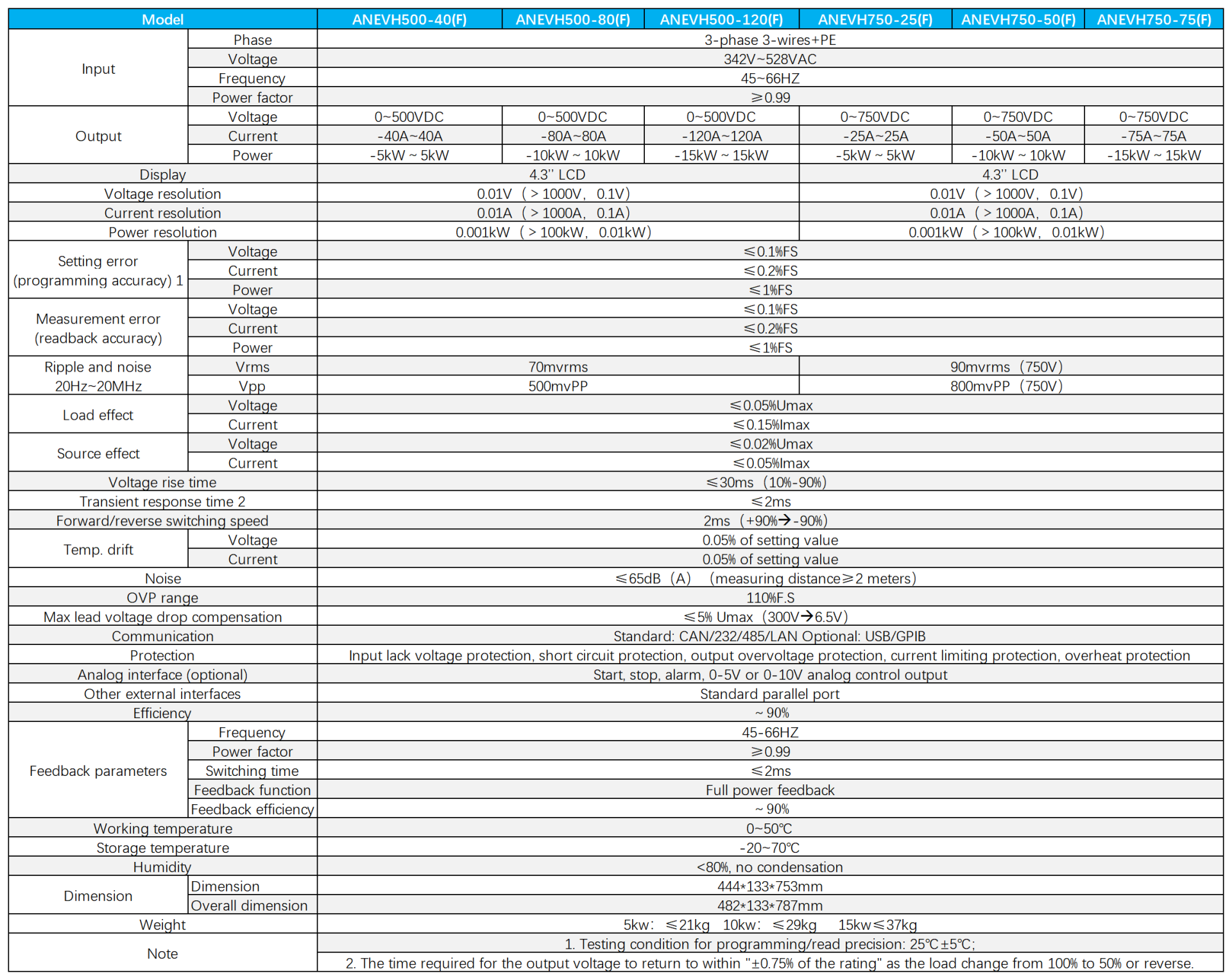

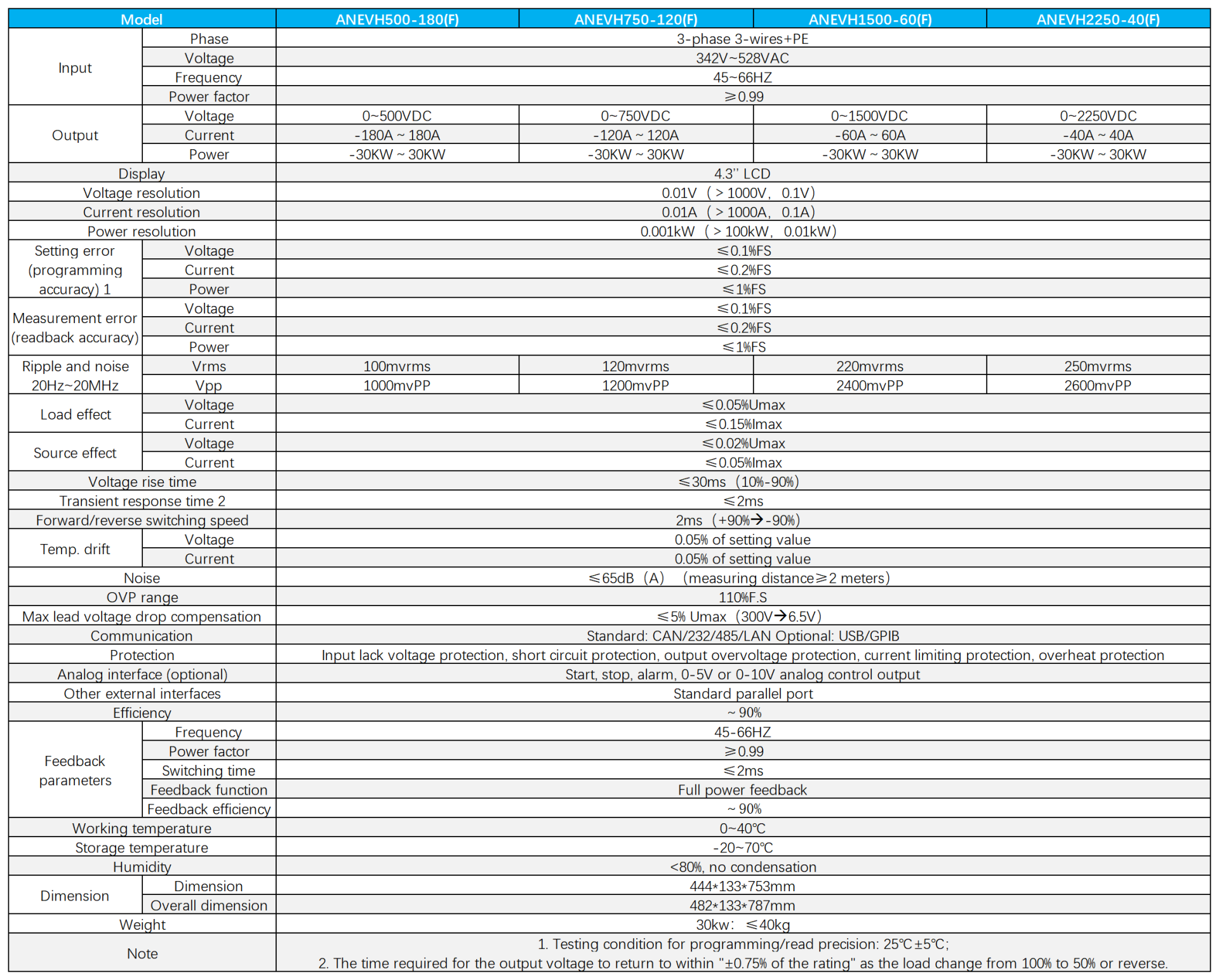

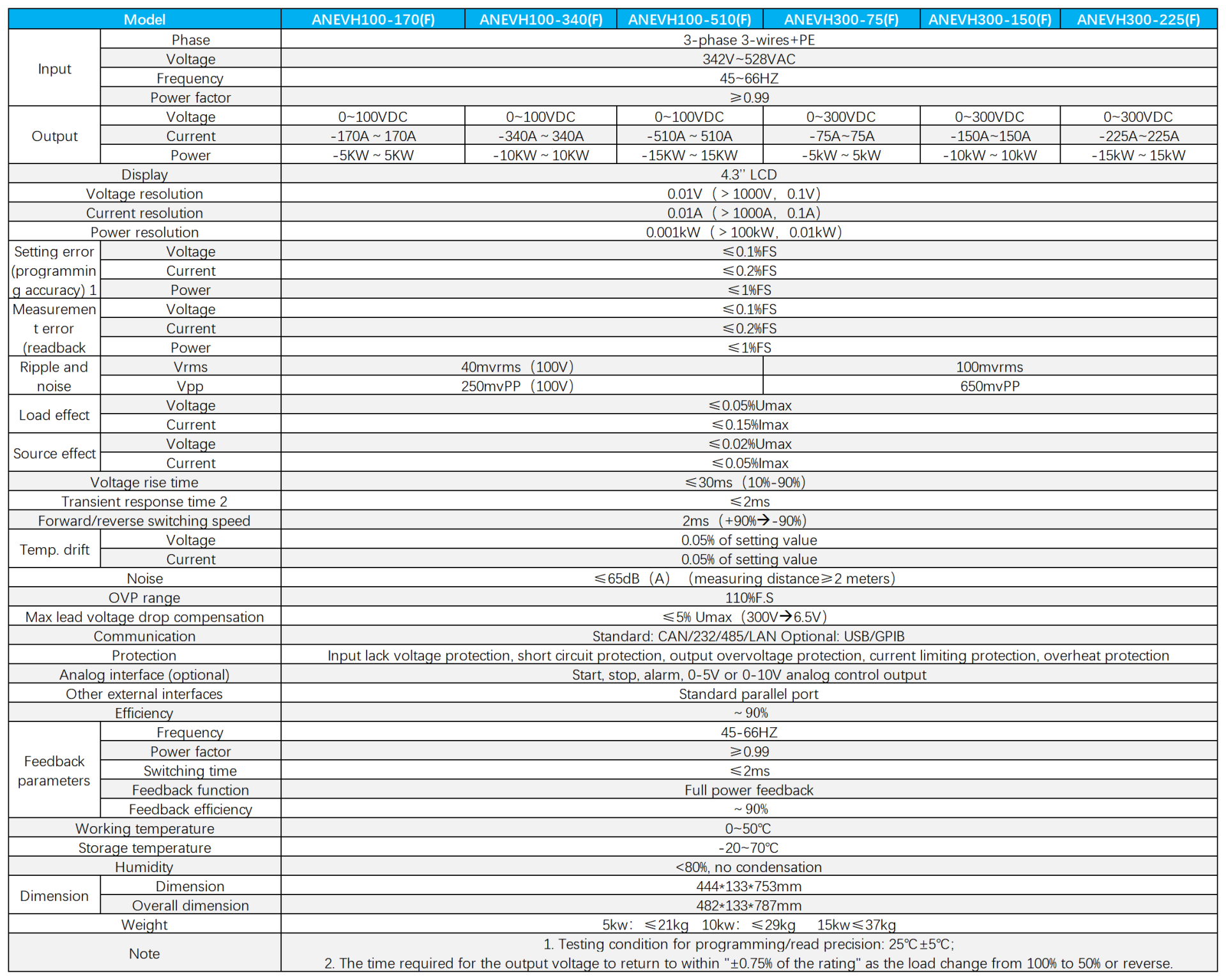

Technical Specifications

Technical Specifications
Technical Specifications
Technical Specifications
Technical Specifications
Technical Specifications
