Regenerative Charge and Discharge Battery Testing System

Regenerative Charge and Discharge Battery Testing System

CE-6008n-5V300A
Regenerative Charge and Discharge Battery Testing System

It has the characteristics of high dynamic response speed, high stability precision and multi-channel flexible configuration which also supports pulse test, cycle life test and simulation test. The system has the function of multi-channel input and energy recovery, which can save a lot of electric energy consumed in the process of charging and discharging. Using bidirectional high-frequency DC converter topology and high-performance multi-channel 24 bit AD converter chip, the sampling resolution is higher than that of traditional single range equipment.

Product Description

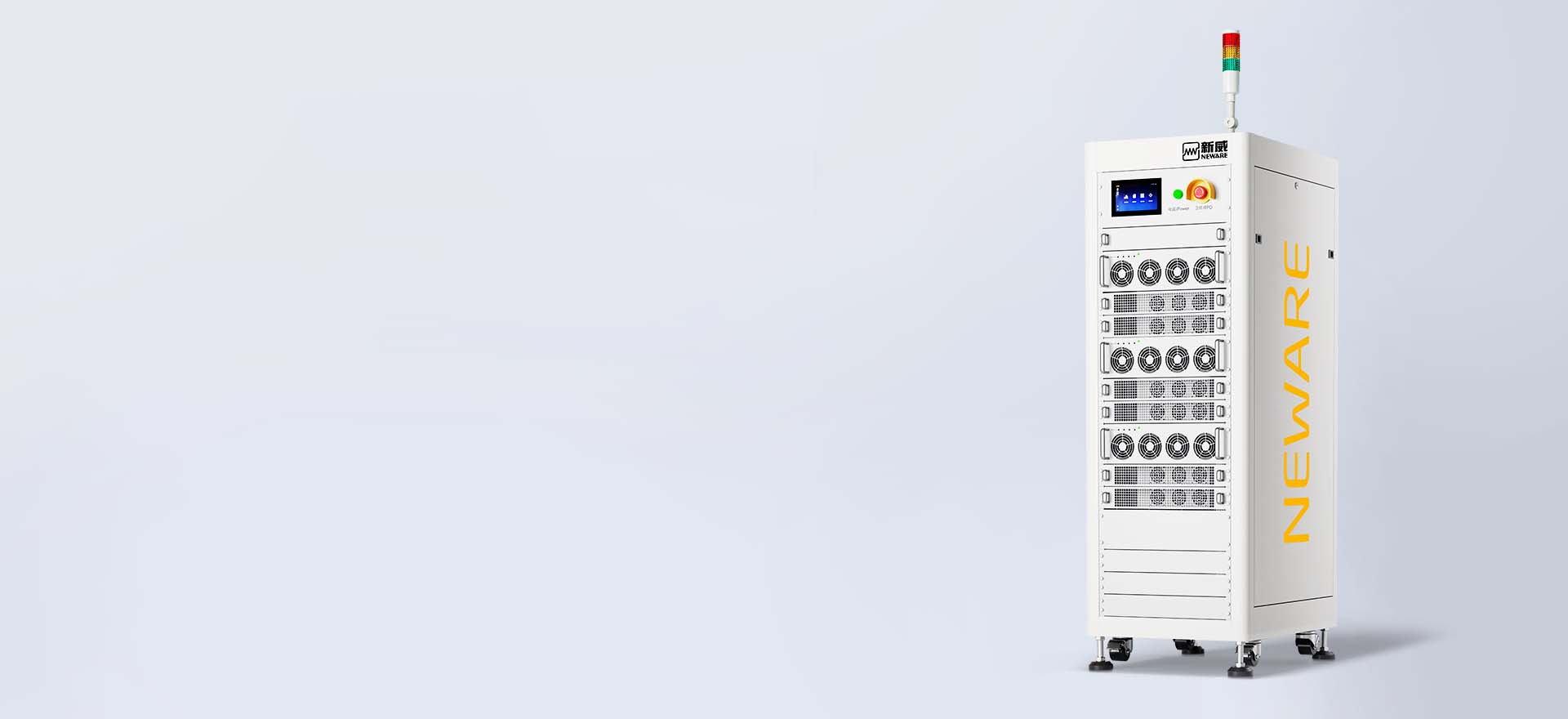

CE-6000 Module Testing

It is suitable for electric tools, electric vehicles, communication base stations, energy storage and other fields.
Voltage Accuracy
±0.02%F.S


Current Accuracy
±0.05%F.S


Current Response Time
(10%F.S.~90%F.S.)
≤3ms

Feedback Efficiency (Max)
90%


20V≤V≤60V 60A 120A 150A 240A 480A 960A 1200A
60V≤V≤120V 50A 100A 200A 400A 600A 800A 1000A
120V≤V≤200V 50A 100A 200A 300A 400A 500A

*CE-6000:E表示具备能量回馈功能
*可根据电压、电流的大小需求定制

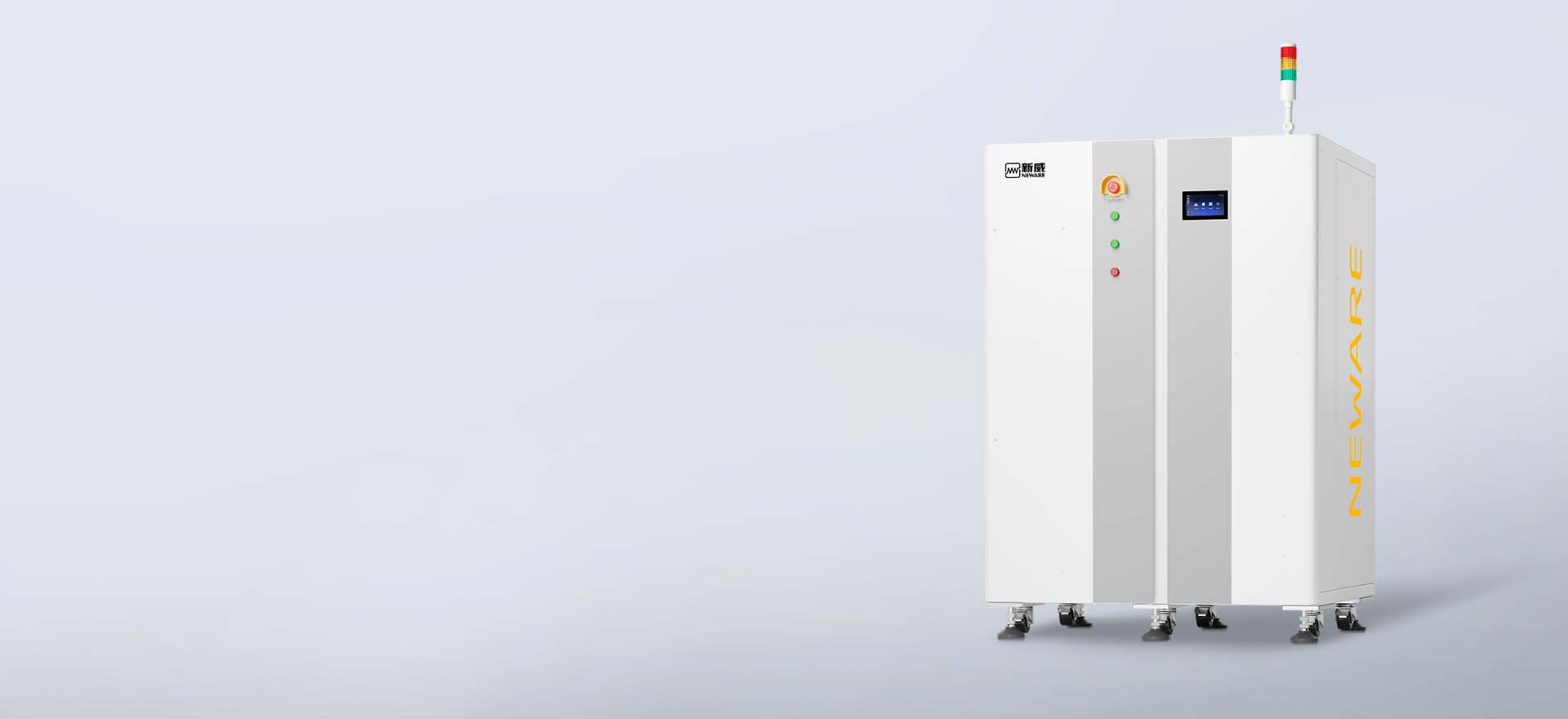

CE-6000 Pack Testing

适用于电动汽车、通信基站、储能等领域
电流精度
±0.05%F.S


电流响应时间
(10%F.S.~90%F.S.)
≤3ms

回馈效率(Max)
94%



100kW 500V 200A
150kW 750V 200A
300kW 1000V 300A

*CE-6000:E表示具备能量回馈功能
*可根据电压、电流、功率的大小需求定制(200V~1000V、100A~1000A)

CE-6000 Cell检测系统

适用于动力电芯、储能电芯等领域
电流精度
±0.05%F.S

电流响应时间
≤3ms

记录频率
100Hz


5V/6V 75A 150A 300A 600A 1200A

*CE-6000:E表示具备能量回馈功能
*可根据电压、电流、功率的大小需求定制(200V~1000V、100A~1000A)


应用领域或场景……





出众的性能表现


数据记录
100Hz

RS485通信
CANBus

最大能量转换效率
>75%/90%/94%

工况模拟

支持
BMS对接

放电电压
≥0V

0.02%/0.05%FS
精度

最小脉宽
100ms/20ms

响应时间
5ms/3ms/2ms

通道并联



"能量回馈"为低碳生产赋能

对电芯释放的电能进行回收利用,用于其他电池充电或回馈给到电网减少测试系统耗电量,实现节能降本,改善散热



型号说明

C
1

T
2

E


-


60
3

04
4

X
5

n
6

-


□□□V
7

□□□A
8

-


IG
9

-


B/F
10

1: 成品
3: 6系列模组&Pack
5: ②D/T/Q/空
7: 最大输出电压单位V
5: IGBT
2: ①T/空
4: 通道数量
6: ③n/m
8: 最大输出电流单位A
6: 充放电分开/放电0V以下

① T-精度0.02%;空-默认精度0.05%或0.1%
② D-双量程;T-三量程;Q-四量程;空-单量程
③ n-100Hz;m-10Hz
